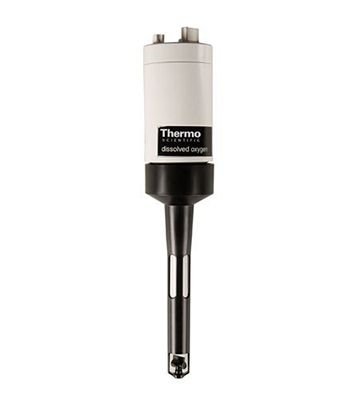

Transform Your pH Meter into a Versatile Dissolved Oxygen Meter
Maximize the utility of your existing pH meter with the Orion™ Dissolved Oxygen/BOD Probe. This innovative probe offers precise dissolved oxygen measurement capabilities, making it an essential tool for laboratories, environmental monitoring, and BOD testing.
Key Features:
- Advanced Polarographic O2 Sensor: Featuring solid-state circuitry in the probe top, this sensor efficiently converts current to voltage, enabling direct dissolved oxygen readouts.
- Versatile Compatibility: Easily plug the probe into your benchtop or portable pH meter to measure dissolved oxygen levels ranging from 0 to 14 ppm.
- High Accuracy: Achieve results with an accuracy of ±0.05 ppm or 2% of reading (whichever is greater) within a temperature range of 15°C to 35°C (59°F to 95°F), provided the sample temperature is within 10°C of the calibration temperature.
- Dual Thermocompensator: This feature compensates for fluctuations in membrane permeability and O2 solubility, ensuring reliable results under varying conditions.
- Ideal for BOD Testing: The included overflow funnel is designed to fit a 300 mL BOD bottle, while the built-in magnetic stir bar ensures homogenous sample analysis.
- Rapid Response Time: This probe responds to 96% of changes in less than 30 seconds, with an O2 consumption rate of just 0.1 µg/hr.
- Easy Maintenance: The screw-on membrane/electrolyte module eliminates the need for complicated membrane replacements; simply replace the module approximately every 3 months for optimal performance.
Specifications:
- Dimensions: 1.87” O.D. (48 mm) at top, 0.5” O.D. (13 mm) at sensor section, and 9.62” L (240 mm).
Included Components:
- Two silver oxide 10L14 batteries
- Two membrane/electrolyte modules
- 29.5” long (75 cm) cable with U.S. standard connector
