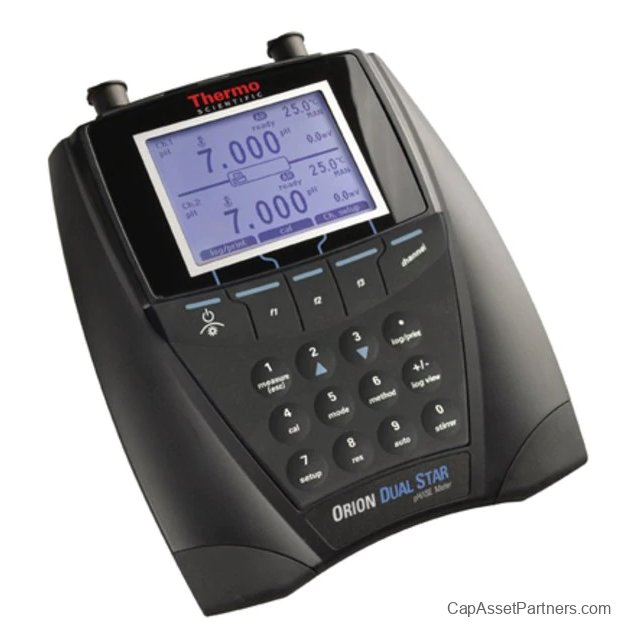

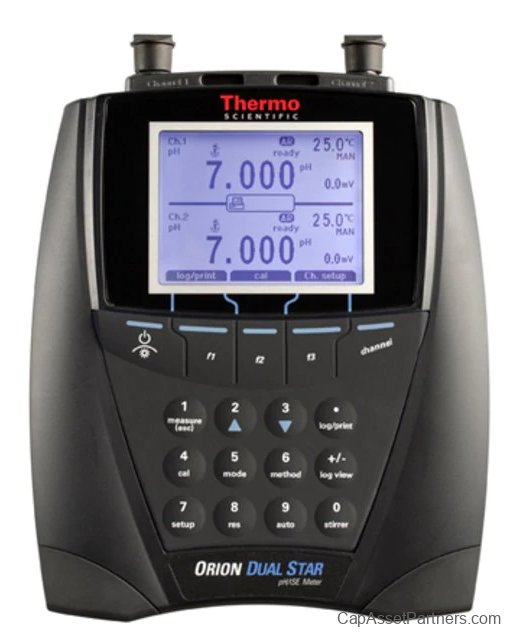

Orion™ Dual Star™ pH/ISE Dual Channel Benchtop Meter Kits

The Orion™ Dual Star™ pH/ISE dual channel benchtop meter is engineered to enhance laboratory efficiency by enabling simultaneous measurement on two channels, displayed on a large, backlit LCD. This advanced device allows for precise measurement of pH, ion concentration (ISE), mV, relative mV, or ORP with temperature control, utilizing two BNC, reference pin-tip, and ATC temperature inputs.

Key Features

• EZ Startup menu for seamless first-time setup.
• Numeric keypad and function keys streamline data entry and meter configuration.
• Multiple selectable read modes, including Auto-Read, On-Ready, At Timed Intervals, Continuous, Value Change in Measurement, and Timed for varied analytical approaches.
• Up to 6-point pH calibration with built-in recognition for USA/NIST and EURO/DIN buffers, customizable for unique buffer values.
• Advanced ion concentration (ISE) calibration for up to 6 points, featuring non-linear auto-blank and low-concentration stability options.
• Non-volatile memory retains up to 1000 data points, complete with timestamps.
• Data transfer made easy with USB and RS232 options to printers or computers, accompanied by complimentary Orion Dual Star Com communication software.
• Integrated stirring capability with the Orion Star stirrer probe enhances sample processing.
• Includes a meter-attachable electrode stand for convenient electrode management.
• Durable, splash-resistant design (IP54 rating) ensures reliability and can be wall-mounted to maximize workspace.

Product Specifications

pH Specifications

• Range: -2.000 to 19.999
• Resolution: 0.1, 0.01, 0.001
• Relative Accuracy: ±0.002
• Calibration Points: 1 to 6

ISE Specifications

• Range: 0 to 19,999
• Resolution: 1, 2, or 3 significant digits
• Relative Accuracy: ±0.2 mV or 0.05% (whichever is greater)
• Units: ppm, ppb, M, %, or unitless
• Technique Options: Single known addition & subtraction, Double known addition & subtraction
• Calibration Points: 2 to 6
• Calibration Options: Linear, point-to-point, non-linear selectable auto-blank

mV/Relative mV/ORP Specifications

• Range: ±1999.9
• Resolution: 0.1
• Relative Accuracy: ±0.2 or 0.05% (whichever is greater)
• Calibration Capability: Yes

Temperature Specifications

• Temperature Range: -5 to 105°C
• Temperature Stability: Smart Stability and Smart Averaging functions
• Temperature Accuracy: ±0.1°C

Dimensions

• Height: 3.5 in
• Width: 6.7 in
• Length: 9.5 in
