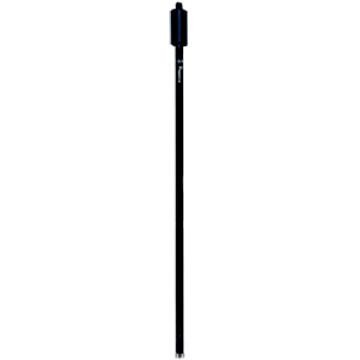

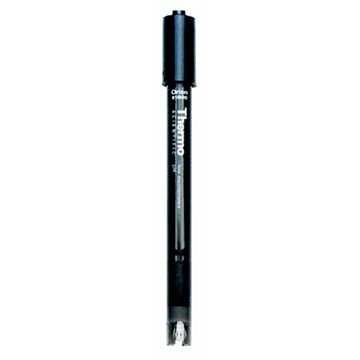

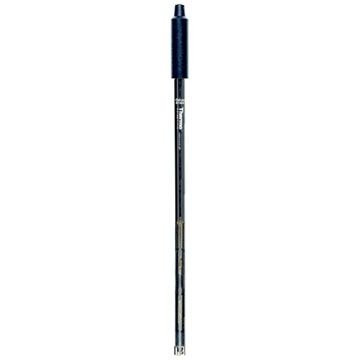

Orion™ Economy Series pH Combination Electrodes
The Orion™ Economy Series pH Combination Electrodes are engineered for precision and reliability, making them the ideal choice for various laboratory applications. With their robust design and advanced features, these electrodes provide accurate pH measurements essential for research, quality control, and educational purposes.
Key Features:
- SKU Options: Available in three different configurations for versatile applications:
- Base Outer Diameter: Options include 0.43 in. and 0.25 in. for compatibility with a range of devices.
- Connector Type: Choose from Waterproof BNC or standard BNC for reliable connectivity.
- Junction Type: Equipped with a wick junction for superior sample interaction.
- Material Composition: Constructed with durable epoxy, ensuring longevity and durability.
- pH Range: Supports a wide pH measurement range (0 to 14 for selected models, 0 to 12 for others).
- Top Outer Diameter: Features a 0.62 in. top outer diameter for precise fit (for SKU 9106BNWP).
- Electrode Type: Offers options such as combination Ag/AgCl non-refillable and semi-micro non-refillable for various applications.
- Operating Temperature Range: Suitable for use in temperatures ranging from 0° to 80° C.
Specifications:
| SKU |
Base OD |
Connector Type |
Junction |
Material |
pH Range |
Top Outer Diameter |
Type |
Operating Temperature Range |
| 9106BNWP |
0.43 in. |
Waterproof BNC |
Wick |
Epoxy |
0 to 14 pH |
0.62 in. |
Combination Ag/AgCl pH Electrode, non-refillable |
0° to 80° C |
| 911600 |
0.25 in. |
BNC |
Wick |
Epoxy |
0 to 12 pH |
10 mm. |
Non-Refillable, Semi-Micro |
0° to 80° C |
| 912600 |
0.25 in. |
BNC |
Wick |
Epoxy |
0 to 12 pH |
10 mm. |
Non-Refillable Flask Electrode |
0° to 80° C |
