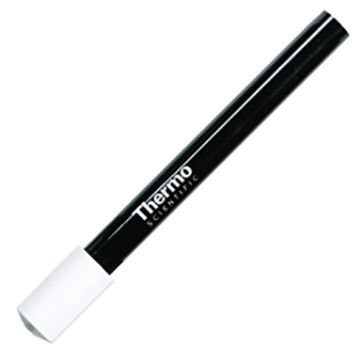

Orion™ Silver/Sulfide Electrodes
Achieve precise and efficient measurements of silver and sulfide ions in aqueous solutions with the Orion™ Silver/Sulfide Electrodes. Designed to deliver quick, reliable readings, these electrodes are essential tools for laboratories engaged in low-level cyanide and halide titrations.
Key Features
- Integrated design featuring both reference and sensing electrodes in a single unit.
- Incorporates the Sure-Flow™ reference junction, which provides high resistance to clogging and ensures rapid, stable measurement results.
- Available with waterproof BNC, BNC, and screw cap connectors for compatibility with any Ion Selective Electrode (ISE) meter equipped with a BNC connection.
- Free-flowing liquid junction technology guarantees stable, drift-free potential readings.
- The BNWP connector allows for a waterproof and secure connection, ideal for use with Orion Star Series meters.
- Designed for use in conjunction with a double junction reference electrode, enhancing versatility and functionality.
Inclusions
Both waterproof BNC and BNC electrodes come with 1-meter cables for flexible deployment in laboratory settings.
Specifications
| Options |
Silver/Sulfide (Ag+/S2-) ionplus Design |
Silver/Sulfide (Ag+/S2-) |
| Catalog Number |
9616BNWP |
9416BN/9416SC |
| Construction |
ionplus Sure-Flow solid-state combination |
Solid state half-cell |
| Measurement Range |
1 x 10-7 to 1.0 M (0.01 to 107,900 ppm as Ag+; 0.003 to 32,100 ppm as S2-) |
1 x 10-7 to 1.0 M (0.01 to 107,900 ppm as Ag+; 0.003 to 32,100 ppm as S2-) |
| Optimum Temperature Range |
0 to 80 °C |
0 to 80 °C |
| Required Reference Electrode |
Included |
900200 |
| Reference Filling Solution |
900062 for Ag+/S2-; 900067 for Ag+; 900061 for S2- |
900002 inner / 900003 outer |
| Required ISA |
940011 for Ag+; 941609 for S2- |
940011 for Ag+; 941609 for S2- |
*Half cells require 900200 Reference Cell.
