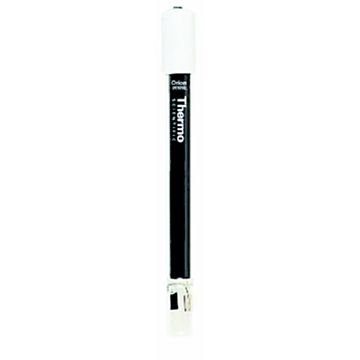

Orion™ Two-Electrode Conductivity Cells

Enhance your analytical capabilities both in the laboratory and in the field with the versatile Orion™ Two-Electrode Conductivity Cells. Engineered for precision and reliability, these cells come in various materials and measurement ranges, making them suitable for a multitude of applications.

Available Models and Specifications:

Model 011010A & 011010

• Material: Glass/Platinum
• Nominal Cell Constant: 1.0 cm^-1
• Measurement Range: 1 µS/cm to 200 mS/cm
• Application: Laboratory use

Model 011020A, 011020 & 9902BN

• Material: Glass/Platinum
• Nominal Cell Constant: 0.1 cm^-1
• Measurement Range: 0.1 µS/cm to 100 µS/cm
• Application: Laboratory use and ultra-pure water

Model 011050MD, 011050A & 011050

• Material: Epoxy/Platinum
• Nominal Cell Constant: 1.0 cm^-1
• Measurement Range: 1 µS/cm to 20 mS/cm
• Application: Field or laboratory use

Model 011510MD & 011510

• Material: Epoxy/Graphite
• Nominal Cell Constant: 1.0 cm^-1
• Measurement Range: 10 µS/cm to 200 mS/cm
• Application: Field or laboratory use

Model 013016MD, 013016A & 013016D

• Material: Steel (V4A)
• Nominal Cell Constant: 0.1 cm^-1
• Measurement Range: 0.01 µS/cm to 300 µS/cm
• Application: Laboratory use and ultra-pure water

Model 018020MD

• Material: Glass/Platinum
• Nominal Cell Constant: 10 cm^-1
• Measurement Range: 10 µS/cm to 2000 mS/cm
• Application: High electrolyte concentration solutions

Recommended For:

The Orion™ Two-Electrode Conductivity Cells are designed for both laboratory and field applications, providing the accuracy and reliability necessary for diverse testing environments.

Quick Specs Overview:

Cat. No.	Cable Length	Meter Compatibility	Measurement Range	Application	Approximate Cell Constant	Cell Material	Dimensions	Min/Max Immersion
011050MD A	1.5 m	Star Series	1 µS/cm to 20 mS/cm	Lab and Field	1.0 cm-1	Epoxy/Platinum	Dia - 12 mm, Length - 120 mm	20/90 mm
011050 B	1 m	150A plus, 145A plus, 125A plus, 115A plus, 05A plus	1 µS/cm to 20 mS/cm	Lab and Field	1.0 cm-1	Epoxy/Platinum	Dia - 12 mm, Length - 120 mm	20/90 mm
011020 B	1 m	150A plus, 145A plus, 125A plus, 115A plus, 05A plus	0.1 µS/cm to 100 µS/cm	Boiler feedwater, ultra-pure water	0.1 cm-1	Glass/Platinum	Tip dia - 17 mm, Tip length - 22 mm, Dia - 13 mm, Length - 120 mm	25/120 mm
011020A F	1 m	555A, 550A, 162A, 136S, 135A, 131S, 130A	0.1 µS/cm to 100 µS/cm	Boiler feedwater, ultra-pure water	0.1 cm-1	Glass/Platinum	Tip dia - 17 mm, Tip length - 22 mm, Dia - 13 mm, Length - 120 mm	25/120 mm
011010 B	1 m	150A plus, 145A plus, 125A plus, 115A plus, 05A plus	1 µS/cm to 200 mS/cm	Lab	0.1 cm-1	Glass/Platinum	Dia - 13 mm, Length - 120 mm	25/120 mm
011010A F	1 m	555A, 550A, 162A, 136S, 135A, 131S, 130A	1 µS/cm to 200 mS/cm	Lab	0.1 cm-1	Glass/Platinum	Dia - 13 mm, Length - 120 mm	25/120 mm
