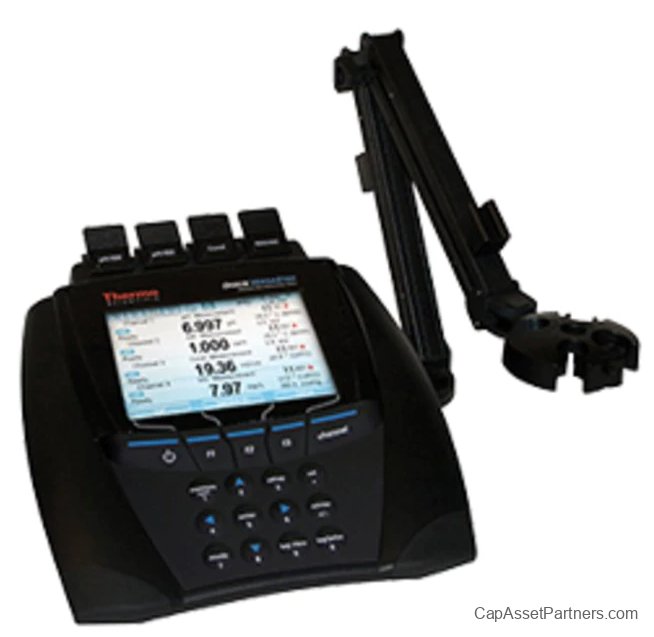

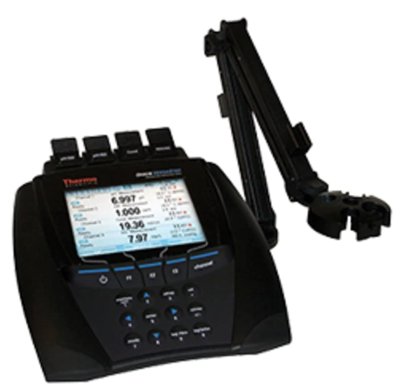

Orion™ Versa Star Benchtop Meter

Advanced Measurement System for pH, ISE, Conductivity, and Dissolved Oxygen

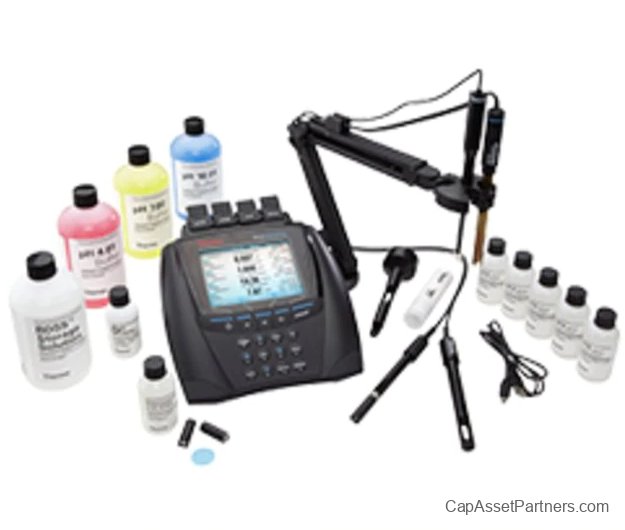

The Orion Versa Star Benchtop Meter is equipped with VSTAR-CND Conductivity Module, VSTAR-RD RDO/DO Module, Electrode Stand, Universal Power Adapter, Literature CD, Printed Quick Start Guide, Computer Interface Cable, and Meter Test Certificate.

Experience unparalleled accuracy and flexibility with the Orion™ Versa Star Benchtop Meter, designed to tackle your toughest analytical challenges in various applications, including pH, ion concentration, conductivity, dissolved oxygen, and temperature. The state-of-the-art color display offers easy visibility of your measurements, while customizable four meter channels allow for interchangeable module use. It also features robust data logging capabilities, saving up to 2000 data point sets with a convenient time/date stamp, which you can easily transfer to a printer or computer via USB or RS232.

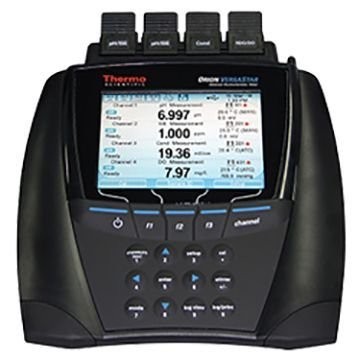

Large, Color Graphic LCD Display:

• Comprehensive display shows readings, connections, time, date, sample ID, user ID, and calibration data.
• Five modules can be configured to customize the four available channels.
• Plain language prompts and soft keys enhance user experience with intuitive selection options.
• Multilingual interface supports English, Spanish, French, Italian, German, and Chinese.

Key Features:

• Nonvolatile memory retains up to 2,000 data points complete with time and date stamps.
• Dual USB and RS232 ports facilitate easy data transfer and meter software updates.
• Data analysis software enables instant display of readings and retrieval of stored results.
• Direct control of two Orion Star stirrer probes (sold separately) allows efficient sample mixing without a stir plate.
• Enhanced electrode arm and newly designed probe holder streamline probe maintenance and sample insertion.
• Universal power adapter compatible with various AC power sources.
• IP54-rated design ensures protection against splashes, enhancing durability.

VERSA STAR pH/ISE Module, VSTAR-ISE:

• Measures pH, concentration via ISE, mV, relative mV (RmV), or ORP alongside temperature.
• Supports up to six-point pH and ISE calibrations, allowing for corrections of individual points.
• Includes advanced ISE capabilities such as incremental techniques, timed end points, and selectable non-linear options for low concentration stability.

VERSA STAR Conductivity Module, VSTAR-CND:

• Determines conductivity, TDS, salinity, or resistivity with temperature measurements.
• Offers selectable reference temperatures for conductivity ranging from 5 to 25 °C including various curve options.
• Provides practical salinity or natural seawater curve selections for accurate readings.

VERSA STAR Dissolved Oxygen/RDO Module, VSTAR-RD:

• Measures dissolved oxygen as a percentage of saturation or concentration with temperature adjustments.
• Compatible with both Orion polarographic and RDO optical dissolved oxygen probes, featuring automatic probe type recognition.
• Calibration flexibility includes water-saturated air, air-saturated water, custom values via Winkler titration, or zero points.
• Automatic compensation for temperature and barometric pressure, with optional manual salinity correction included.

Specifications:

SKU	pH Range	Temperature Range	Temperature Resolution	Temperature Accuracy	Ambient Temperature Range	Temperature Compensation	pH Precision
VSTAR90	−2 to 20	-5 to 105 °C	0.1 °C, 0.1 °F	±0.1 °C	5 to 45 °C, 41 ° to 113 °F	Linear, nLFn, nLFu, EP, or off	±0.002
VSTAR91	−2 to 20	-5 to 105 °C	0.1 °C, 0.1 °F	±0.1 °C	5 to 45 °C, 41 ° to 113 °F	Linear, nLFn, nLFu, EP, or off	±0.002
VSTAR92	−2 to 20	-5 to 105 °C	0.1 °C, 0.1 °F	±0.1 °C	5 to 45 °C, 41 ° to 113 °F	Linear, nLFn, nLFu, EP, or off	±0.002
VSTAR93	−2 to 20	-5 to 105 °C	0.1 °C, 0.1 °F	±0.1 °C	5 to 45 °C, 41 ° to 113 °F	Linear, nLFn, nLFu, EP, or off	±0.002
VSTAR94	−2 to 20	-5 to 105 °C	0.1 °C, 0.1 °F	±0.1 °C	5 to 45 °C, 41 ° to 113 °F	Linear, nLFn, nLFu, EP, or off	±0.002

Additional Information:

SKU	Speed	Height	Width	Channel	Length	Display	Memory	Output
VSTAR90	Selectable fast, medium, slow or Smart Stability setting	3.9 in	9.5 in	4 - customizable with modules	11 in	Color Graphic LCD	Non-volatile memory	USB, RS232
VSTAR91	Selectable fast, medium, slow or Smart Stability setting	3.9 in	9.5 in	4 - customizable with modules	11 in	Color Graphic LCD	Non-volatile memory	USB, RS232
VSTAR92	Selectable fast, medium, slow or Smart Stability setting	3.9 in	9.5 in	4 - customizable with modules	11 in	Color Graphic LCD	Non-volatile memory	USB, RS232
VSTAR93	Selectable fast, medium, slow or Smart Stability setting	3.9 in	9.5 in	4 - customizable with modules	11 in	Color Graphic LCD	Non-volatile memory	USB, RS232
VSTAR94	Selectable fast, medium, slow or Smart Stability setting	3.9 in	9.5 in	4 - customizable with modules	11 in	Color Graphic LCD	Non-volatile memory	USB, RS232
