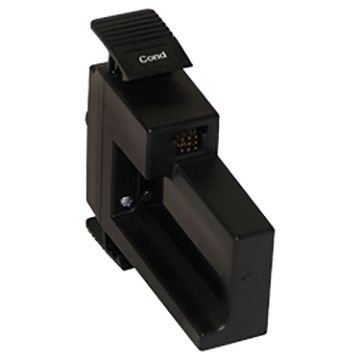

Orion™ Versa Star Conductivity Measurement Module
The Orion™ Versa Star Conductivity Measurement Module elevates your Thermo Scientific™ Orion™ Versa Star meter by integrating advanced capabilities to measure conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature. This cutting-edge module features a four-channel design that allows customization with interchangeable measurement modules, ensuring flexible and reliable performance.
Key Features:
- • User-friendly interface with plain language screen prompts and soft keys for straightforward navigation.
- • Multi-language support with interface options in English, Spanish, French, Italian, German, and Chinese.
- • Non-volatile memory capable of storing up to 2,000 data points, complete with time and date stamps.
- • Two USB and RS232 ports facilitating effortless data transfer and meter software updates.
- • Comprehensive data analysis software for transferring stored results and displaying readings in real-time.
- • Direct control for two Orion Star™ stirrer probes (096019, sold separately) to mix samples without needing an external stir plate.
- • Innovative electrode arm and probe holder for secure probe placement in samples.
- • Universal power adapter compatible with a wide range of AC power sources.
- • IP54-rated housing designed to withstand splashes.
- • Three-year meter replacement warranty, guaranteeing long-term use.
Specifications:
| Conductivity Module (VSTAR-CND) |
| Conductivity |
Range |
0.001 μS to 3000 mS |
| Resolution |
0.001 μS minimum; 4 significant figures minimum |
| Relative Accuracy |
0.5% reading ±1 digit |
| Reference Temperature |
5, 10, 15, 20, 25 °C |
| Temperature Compensation |
Linear (0 to 10.0 %/°C), nLn, nLFu, USP/EP |
| Compatible Cell Constants |
0.001 to 199.9 |
| Calibration Points |
Up to 6 points |
| Calibration Editing |
Yes |
| Resistivity |
Range |
2 ohm to 100 meg-ohm |
| Resolution |
2 ohms-cm |
| Relative Accuracy |
0.5 % reading ±1 digit |
| Salinity |
Type |
Practical salinity or natural sea water |
| Range |
0.01 to 80.0 psu; 0.01 to 42 ppt sea water |
| Resolution |
0.01 |
| Relative Accuracy |
±0.1 |
| TDS |
Range |
0 to 200 ppt |
| Resolution |
4 significant digits |
| Relative Accuracy |
±0.5 % reading ±1 digit |
| TDS Factor Range |
Linear 0.01 to 10.00 |
| Temperature |
Range |
-5 to 105 °C, 23 to 221 °F |
| Resolution |
0.1 |
| Relative Accuracy |
±0.1 |
| Offset Calibration |
1 point |
| Inputs |
8-pin mini-DIN |
