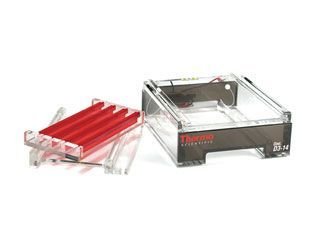

Owl™ D3-14 Horizontal Gel Electrophoresis System

The Owl™ D3-14 Horizontal Gel Electrophoresis System is the perfect solution for a variety of molecular biology applications, including screening PCR products, plasmid preps, restriction mapping, and cloning. Designed to enhance the efficiency of your laboratory workflows, this system delivers high-quality results with remarkable speed.

Key Features:

• Efficiently screen between 25 to 200 samples on a single agarose gel in under 30 minutes, producing clear and tight banding patterns without the common "smiling" effect.
• Utilize special combs and a multichannel pipetter for direct sample loading from 96, eight, or 12-well plates, streamlining your processes.
• Benefits from the Owl™ EasyCast™ casting design with an external caster and a gasket-equipped gel tray, facilitating a snug fit and providing a leakproof seal without conventional tape.
• Accelerated sample loading with the multichannel pipetter enables rapid transfer and efficiency.
• Strategic electrode placement ensures fast run times while maintaining excellent resolution.
• A built-in bubble level aids in creating flat, uniformly thick gels for optimal results.

Included Components:

• Buffer chamber for effective gel preparation.
• SuperSafe™ lid complete with attached power cords, providing safety during operations.
• EasyCast™ gasketed UVT gel tray for secure and efficient gel casting.
• External caster along with four combs (50 micro well, 1.5mm thick) for versatile sample handling.

Specifications:

Enhanced Features:

Replacement Parts:

• Power supply leads come with a retractable sheath for added convenience and safety.
• Manufactured with strain relief cords to minimize breakage risk.
• The UVT gel tray includes gasketed end gates that provide a secure and leakproof seal.
• Comb slots are strategically positioned to accommodate up to 12 sample sets simultaneously.

Leveling Platform:

• The three-point leveling platform guarantees a flat casting and running surface, complete with a bubble level for accuracy.

Casting Dams:

• Seals agarose on contact, eliminating the need for tape during gel preparation.
• Allows for gels of varying lengths to be easily cast and run.
• Easy to maneuver with user-friendly knobs or finger depressions.
• Constructed from high-quality aluminum to block off specific sections of the UVT gel tray, enabling versatile gel casting options.

Certifications:

CE marked for compliance with international safety and quality standards.
