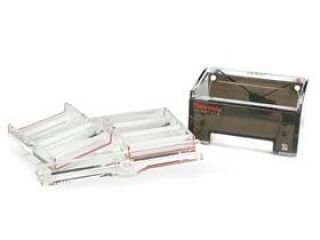

Owl™ D4 Horizontal Electrophoresis System
Lead Times May Vary.
Optimal Flexibility with Compact Design
The Owl™ D4 Horizontal Electrophoresis System is expertly engineered to provide superior flexibility while conserving valuable bench space. This advanced system delivers flat, even banding patterns and consistent results, removing the hassle of utilizing tape, grease, agarose seals, or other cumbersome accessories.
- Conduct a single gel tray (51 samples) in the buffer chamber or maximize your bench space with two stacked trays (accommodating up to 102 samples).
- Equipped with two 16 x 17 cm UV Transmissible (UVT) gel trays, each accommodating up to three combs for simultaneously running up to three series of samples equally spaced.
- Features a stand-alone casting platform for effortless casting of two gels simultaneously.
- Cast a single gel directly in the buffer chamber or utilize the external gel caster for increased versatility.
Comprehensive Product Included
The Owl™ D4 system is complete with:
- Buffer chamber (1.8L volume capacity)
- Three-point leveling base for enhanced stability
- SuperSafe* lid featuring attached power supply leads
- Six combs (1.5mm thickness)
- Bubble level for precise calibration
Specifications Overview
| Specifications |
D4 |
D4-BP |
| Horizontal System |
Space Saving |
Space saving, with buffer exchange ports |
| Gel Size (L x W) |
17 x 16 cm |
| Footprint (L x W x H) |
23 x 27 x 14 cm (9.1 x 10.6 x 5.5") |
| Running Buffer Volume |
1.8 L |
| Sample Range |
17 to 102 |
Replacement Parts and Accessories
The system’s power supply leads feature a retractable sheath end for convenience and enhanced safety. Additionally, these leads are designed with a strain relief cord to prevent breakage. The UVT gel tray incorporates gasketed end gates that provide a reliable leakproof seal without the need for tape.
Leveling Platform Features
- Advanced three-point leveling platform ensures a flat casting and running surface.
- Includes a bubble level for precise setup.
Combs Specifications
| Owl™ D4 Electrophoresis System Combs |
| Specifications |
D4-17C† |
D4-17D† |
| Description |
Micro well comb |
| Number of Teeth |
17 |
| Thickness of Teeth |
1.0mm |
1.5mm |
| Width of Teeth |
7.2mm |
| Recommended Loading Volumes by Gel Thickness* (0.25cm, 0.5cm, 0.75cm, 1.0cm) |
5μL
19μL
32μL
46μL
|
8μL
28μL
49μL
69μL
|
*Note: Recommended Loading Volumes Calculated at 75% of Total Well Volume
†Compatible with 8 and 12-channel pipette formats (1X) and (2X) combs. |
