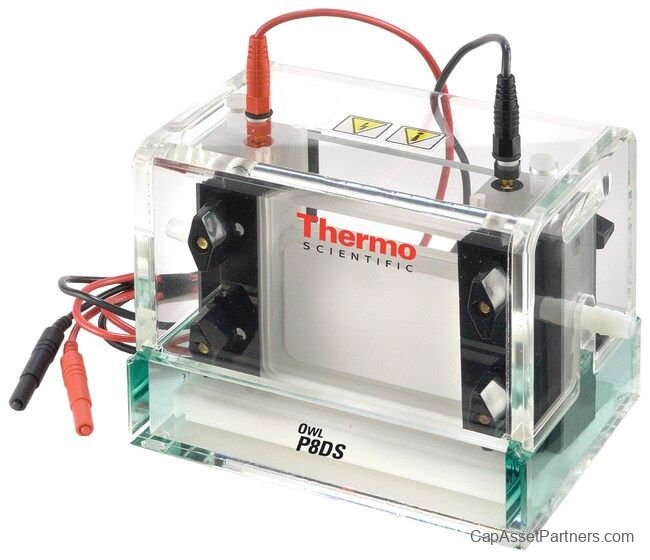

Owl™ P8DS Dual-Gel Vertical Electrophoresis System
Experience cutting-edge technology in protein and nucleic acid analysis with the Owl™ P8DS Dual-Gel Vertical Electrophoresis System, ideal for two-dimensional electrophoresis.
Key Features
- Versatile Operation: Quickly casts and runs 1 or 2 gels simultaneously, making it perfect for a variety of electrophoresis techniques including SDS and agarose gels, as well as native PAGE electrophoresis.
- Innovative Gel Casting: Utilizes a unique agarose plug method for straightforward gel casting. Once set-up, gel assemblies remain stationary, effectively combining two individual steps of casting and running into one efficient process.
- Central Cooling Core: Designed to provide even cooling across the entire gel surface, ensuring outstanding resolution and clear banding. Cooling is facilitated by circulating fluid via an external circulator or cool tap water.
- User-Friendly Design: The simple clamping mechanism allows for hassle-free loading of glass cassettes and compatibility with most manufacturers' precast gels.
- Durable Construction: Made using time-tested acrylic fabrication technology, guaranteeing a long-lasting and rugged system.
Simple Six-Step Operation
- Secure the glass cassettes.
- Plug in the specially designed trough.
- Cast polyacrylamide solution in the cassettes.
Recommended Applications
- Second dimension of two-dimensional (2-D) electrophoresis

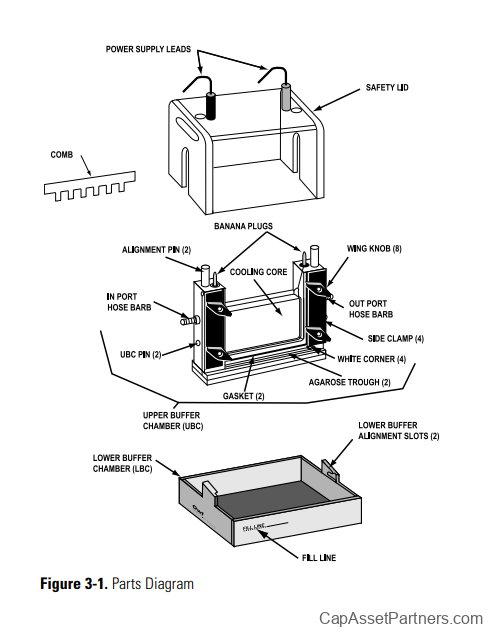

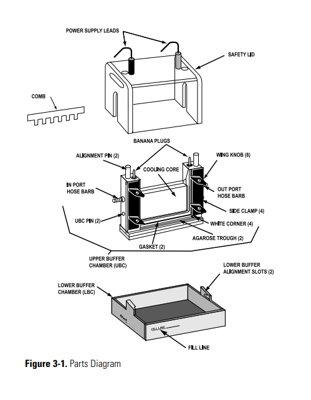

Complete System Package Includes
- Upper Buffer Chamber with Internal Cooling Core
- SuperSafe Lid with Attached Power Supply Leads
- 2 Spacer Sets (0.8 mm Thick)
- Blocking Plate for Single Gel Operation
- 2 Combs (10 Well, 0.8 mm Thick)
Owl P8-Series System Combs Specifications
| SKU |
Name |
Thickness of Teeth |
Width of Teeth |
Estimated Well Volume |
| MP-6A |
Standard 6-tooth Comb |
0.5 mm |
11.1 mm |
89 µL |
| MP-6C |
Standard 6-tooth Comb |
0.8 mm |
11.1 mm |
142 µL |
| MP-6D |
Standard 6-tooth Comb |
1.5 mm |
11.1 mm |
266 µL |
| MP-8A |
Standard 8-tooth Comb |
0.5 mm |
7.7 mm |
62 µL |
| MP-8C |
Standard 8-tooth Comb |
0.8 mm |
7.7 mm |
99 µL |
| MP-8D |
Standard 8-tooth Comb |
1.5 mm |
7.7 mm |
185 µL |
| MP-10A |
Standard 10-tooth Comb |
0.5 mm |
5.7 mm |
46 µL |
| MP-10C |
Standard 10-tooth Comb |
0.8 mm |
5.7 mm |
73 µL |
| MP-10D |
Standard 10-tooth Comb |
1.5 mm |
5.7 mm |
134 µL |
| MP-12A |
Standard 12-tooth Comb |
0.5 mm |
4.3 mm |
34 µL |
| MP-12C |
Standard 12-tooth Comb |
0.8 mm |
4.3 mm |
55 µL |
| MP-12D |
Standard 12-tooth Comb |
1.5 mm |
4.3 mm |
103 µL |
| MP-15A |
Standard 15-tooth Comb |
0.5 mm |
2.9 mm |
23 µL |
| MP-20A |
Standard 20-tooth Comb |
0.5 mm |
4.6 mm |
13 µL |
Specifications
| SKU |
Type |
Dimensions |
| P8DS-1 |
Double-Sided |
6.7 in x 5.1 in x 5.5 in |
| P8DS-2 |
Double-Sided |
6.7 in x 5.1 in x 5.5 in |
| P8DS-3 |
Double-Sided |
6.7 in x 5.1 in x 5.5 in |
