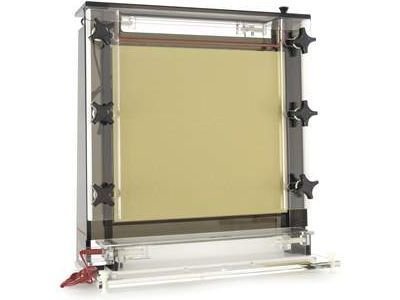

Owl™ S3S Aluminum-Backed Sequencers

Optimal Size: The Owl™ S3S is the most common size for manual sequencing, offering the ideal dimensions for separation.

Key Features:

• • Floating Aluminum Heat Sink: Engineered to minimize the risk of plate cracking during runs, ensuring durability and reliability.
• • Upper Buffer Chamber (UBC): Utilizes minimal buffer and features an inline drain port for easy drainage into a removable bottle.
• • Removable Lower Buffer Chamber (LBC): Facilitates straightforward buffer disposal, enhancing user convenience.
• • Side Clamps Design: Press gel plates against a gasket-seated UBC, providing uniform pressure across the plate and forming a leakproof seal for flat, even banding patterns.
• • Ease of Use: Clamps conveniently slide over glass plates, allowing for quick setup and removal of gels.

Included Components:

The Owl™ S3S comes with everything you need for effective sequencing:

• UBC with removable drain bottle (featuring a safety interlocking lid and attached power supply lead)
• Removable LBC
• Heat sink
• Two side clamps
• Two blank glass plates
• Two notched glass plates
• Two sharktooth combs (78 teeth, 0.4mm thick)
• Well comb (40 well, 0.4mm thick)
• Two spacer sets (0.4mm)
• Adhesive temperature indicator

Product Specifications:

Feature	Specification
Vertical System	Sequencing system
Gel Size (L x W)	45 x 35 cm
Footprint (L x W x H)	44 x 23 x 50 cm
Lower Running Buffer	450 mL
Upper Running Buffer	500 mL
Total Running Buffer	950 mL

Replacement Parts:

• • Power supply leads feature a retractable sheath end for added convenience and safety.
• • Manufactured with strain relief cord to prevent breakage for long-lasting use.

Sequencing Gel Casters:

• • Quick and simple method to cast bubble-free gels in under three minutes.
• • Horizontal plate sliding procedure, utilizing capillary action and surface tension to prevent gel leakage.
• • Requires no taping or special assembly for ease of use.
• • Reduces exposure to hazardous acrylamide, minimizing cleanup time.
• • Fully adjustable to fit glass plates ranging from 20 to 42 cm wide.

Combs Compatibility:

Comb	Description	Thickness of Teeth	Width of Teeth	Estimated Well Volume
S2S-20A	40-tooth Well Comb	0.4mm	6.8mm	15µL
S2S-30A	60-tooth Well Comb	0.4mm	4.1mm	9µL
S2S-SHARK4	78-tooth Sharktooth Comb	0.4mm	—	9µL
S2S-SHARK2	78-tooth Sharktooth Comb	0.2mm	—	5µL
S2S-MT2	72 (2X)-tooth Sharktooth Micro-Well Comb	0.4mm	—	10µL
S2S-MT3	110 (3X)-tooth Sharktooth Micro-Well Comb	0.4mm	—	5.5µL
S2S-MT44	146 (4X)-tooth Sharktooth Micro-Well Comb	0.4mm	—	3.7µL
S2S-MT42	146 (4X)-tooth Sharktooth Micro-Well Comb	0.2mm	—	2µL
