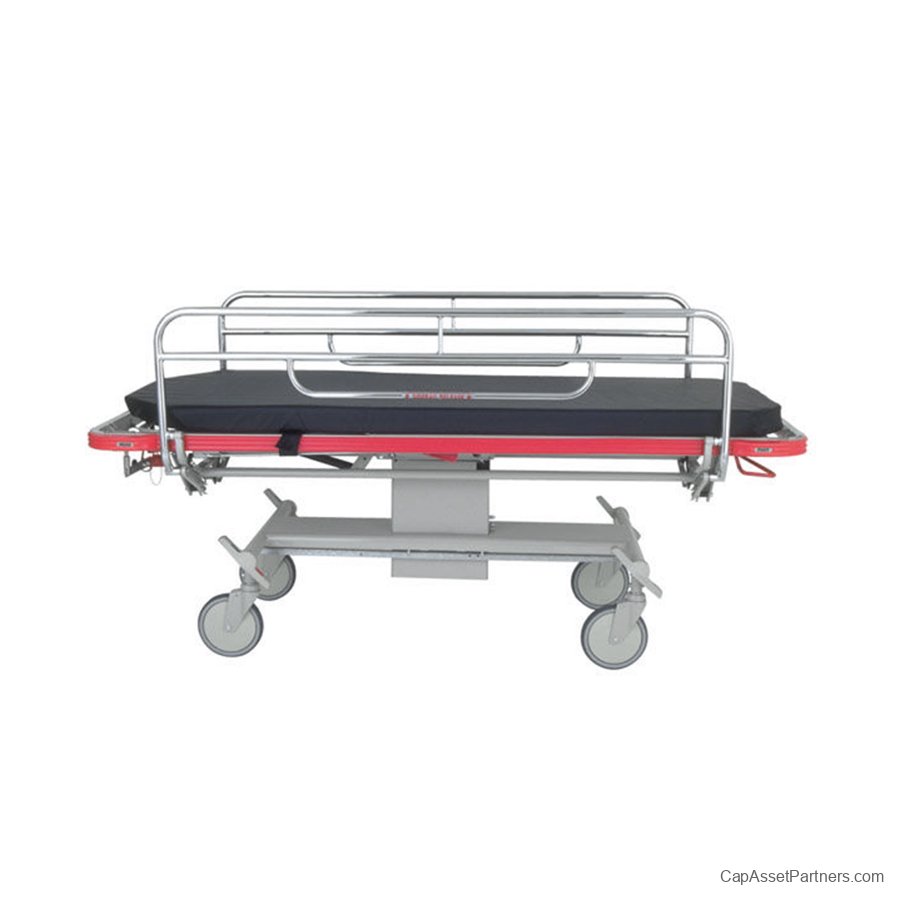

Pedigo 511/516 General Transport Stretcher

Introducing the Pedigo 511/516 General Transport Stretcher – the perfect solution for versatile and economical patient transportation. Designed for optimal safety and comfort, this non-hydraulic adjustable stretcher caters to various transport needs, available in two convenient widths: the 27-inch model 511 and the 31-inch model 516.

Key Features:

• Pneumatic Assisted Fowler Backrest: Easily adjustable for patient comfort and care.

• Four-Corner Braking and Steering: Ensures stability and control during transport.

• True Direction Steering: Provides enhanced maneuverability in tight spaces.

• Full-Length, Tuck-Away Side Rails: Offers added safety while allowing easy access for caregivers.

• Trendelenburg and Reverse Trendelenburg Positions: Promotes better patient management and comfort.

• Pin-Height Adjustment: Simplifies height adjustment for optimal caregiver ergonomics.

• Color-Coded Bumper System: Enhances visibility and safety features.

The Pedigo 511/516 General Transport Stretcher is engineered for reliability and efficiency, making it an essential addition to any medical facility focused on patient care. Trust in its design to deliver a seamless transportation experience for patients and healthcare providers alike.

Pedigo 511/516 General Transport Stretcher Specifications

511 General Transport Stretcher:

• Height: Pin-height adjustable: 28" to 32" (71.1 to 81.3 cm) to litter top

• Side Rails: Tuck-away, chrome plated, 15" (38.1 cm) high above litter top × 63 5/8" (161.6 cm) long

• Overall Length and Width: 83" × 29 1/2" (210.8 × 74.9 cm)

• Patient Surface: 77" × 27" (195.6 × 68.6 cm)

• Casters: Precision bearing casters

• Braking and Steering: Central-locking braking and steering from all four corners

• Restraint Strap Provisions: 8" (20.3 cm)

• IV Rod Positions: One at each corner

• Fowler Adjustment: 0-90 degrees, pneumatic assisted

• Trendelenburg and Reverse Trendelenburg: +12 degrees / -7 degrees, pneumatic assisted

---

516 General Transport Stretcher:

• Height: Pin-height adjustable: 28" to 32" (71.1 to 81.3 cm) to litter top

• Side Rails: Tuck-away, chrome plated, 15" (38.1 cm) high above litter top × 63 5/8" (161.6 cm) long

• Overall Length and Width: 83" × 33 1/2" (210.8 × 85.1 cm)

• Patient Surface: 77" × 31" (195.6 × 78.7 cm)
