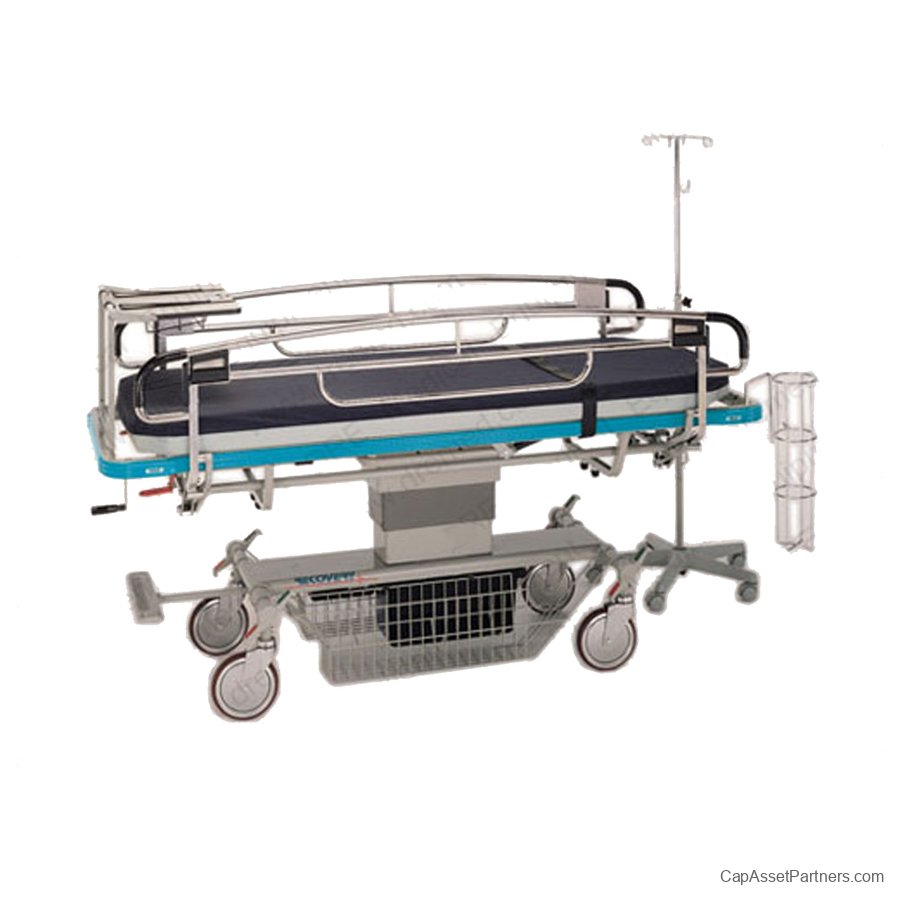

Pedigo 550/555 Universal Procedure Stretchers

Pedigo 550/555 Universal Procedure Stretchers

• Exceptional Versatility for Your Medical Facility

The Pedigo 550/555 Universal Procedure Stretchers are expertly designed to meet the diverse needs of healthcare facilities, ensuring safe and efficient patient transport and positioning. Whether utilized in the Emergency Department, Operating Room, Post Anesthesia Care Unit (PACU), or any other medical department, these stretchers offer unparalleled functionality and high-quality performance.
Key Features:

• Robust Weight Capacity: With a patient weight capacity of 500 pounds, these stretchers can accommodate a wide range of patients securely and comfortably.

• Precision Casters: Equipped with precision casters that lock from any corner, the stretchers provide stability and maneuverability, with an optional 5th wheel steering feature for enhanced navigation.

• Pneumatic Assist Positioning: Effortlessly achieve optimal positioning with pneumatic assist, allowing healthcare professionals to adjust the stretcher to the desired height and angle.

• Hands-Free Hydraulic Height Adjustment: The innovative hydraulic mechanism enables hands-free height adjustments, promoting efficiency and ease of use during patient transfers.

• Total X-Ray Capability: Designed for advanced medical imaging, these stretchers offer total X-ray capability, facilitating seamless diagnostic procedures without the need for additional equipment.

• Thoughtful Design Elements: Push-pull handles integrated into the ends of the side rails improve maneuverability, while tuck-away side rails ensure gapless positioning for enhanced patient safety.

Upgrade your medical facility with the Pedigo 550/555 Universal Procedure Stretchers, where superior design meets practical application, ensuring the highest level of care for your patients.

Pedigo 550/555 Universal Procedure Stretchers Specifications

Model 550

• Height: Hydraulically operated from 24" to 33" (60.9 cm to 83.8 cm) to litter top

• Side Rails: 14" (35.6 cm) high above litter top × 76" (193 cm)

• Overall Length and Width: 83" × 29.5" (210.8 cm × 74.9 cm)

• Patient Surface: 77" × 27" (195.6 cm × 68.6 cm)

• Casters: 8" (20.3 cm) diameter with central lock and steering controlled from all four corners

• Restraint Strap Positions: 8" (20.3 cm) long - 4 positions on leg and hip section; 5" (12.7 cm) long - 4 positions on Fowler section

• IV Rod Positions: One at each corner

• Fowler: 0-90 degrees, pneumatic assisted

• Trendelenburg: +12 degrees, pneumatic assist with mechanical level lock

• Reverse Trendelenburg: -7 degrees, pneumatic assist

• Bumpers: PVC full perimeter

Model 555

• Height: Hydraulically operated from 24" to 33" (60.9 cm to 83.8 cm) to litter top

• Side Rails: 14" (35.6 cm) high above litter top × 76" (193 cm)

• Overall Length and Width: 83" × 33.5" (210.8 cm × 85.1 cm)

• Patient Surface: 77" × 31" (195.6 cm × 78.7 cm)

Additional Information

• Both models share the same height, side rail specifications, casters, restraint strap positions, IV rod positions, Fowler, Trendelenburg, Reverse Trendelenburg, and bumper specifications.

• The primary difference lies in the overall dimensions and patient surface width, with the Model 555 being wider.
