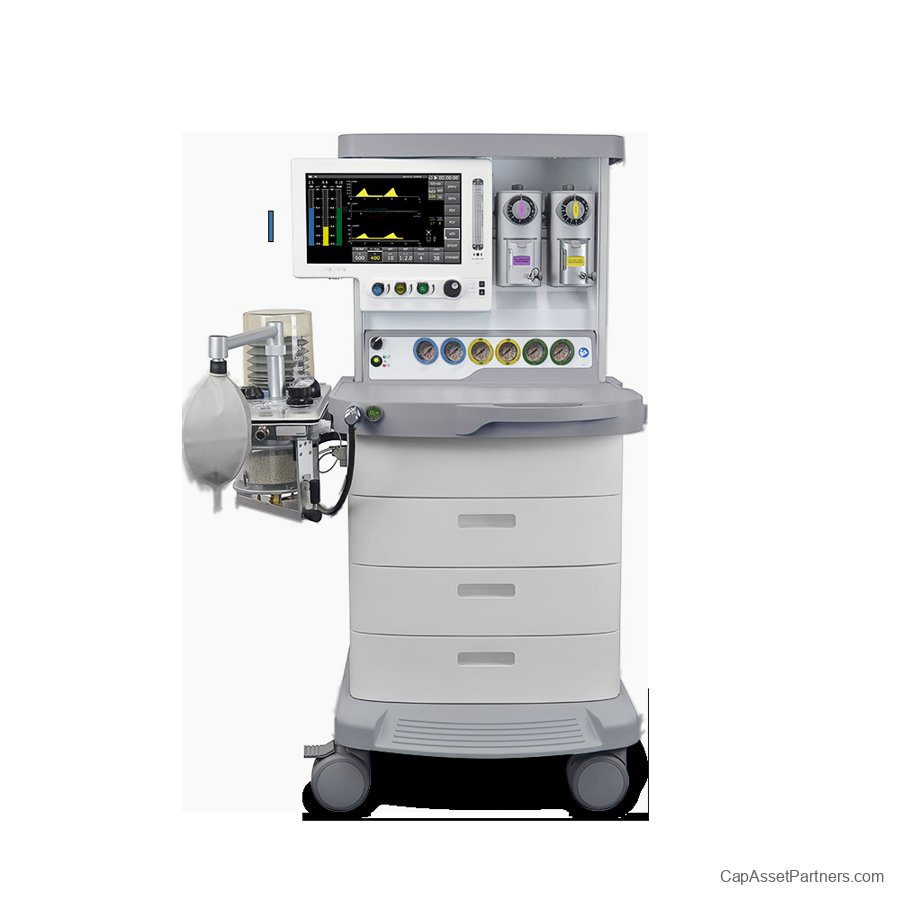

Penlon Prima 460 Anesthesia Machine: The Ideal Choice for Modern Operating Rooms
The Penlon Prima 460 Anesthesia Machine is meticulously engineered for clinicians seeking efficiency and precision in the operating room. Featuring a spacious 15.6-inch HD touchscreen display, it offers an intuitive user interface that simplifies the anesthetic administration process, making it easily accessible for medical professionals of all experience levels.
Designed to accommodate patients of all ages, the Prima 460 is equipped with an array of advanced safety features. These include a backup O2 delivery system, total flow display, and a mechanically accurate anti-hypoxic device that prioritizes patient safety during anesthesia.
Key Features:

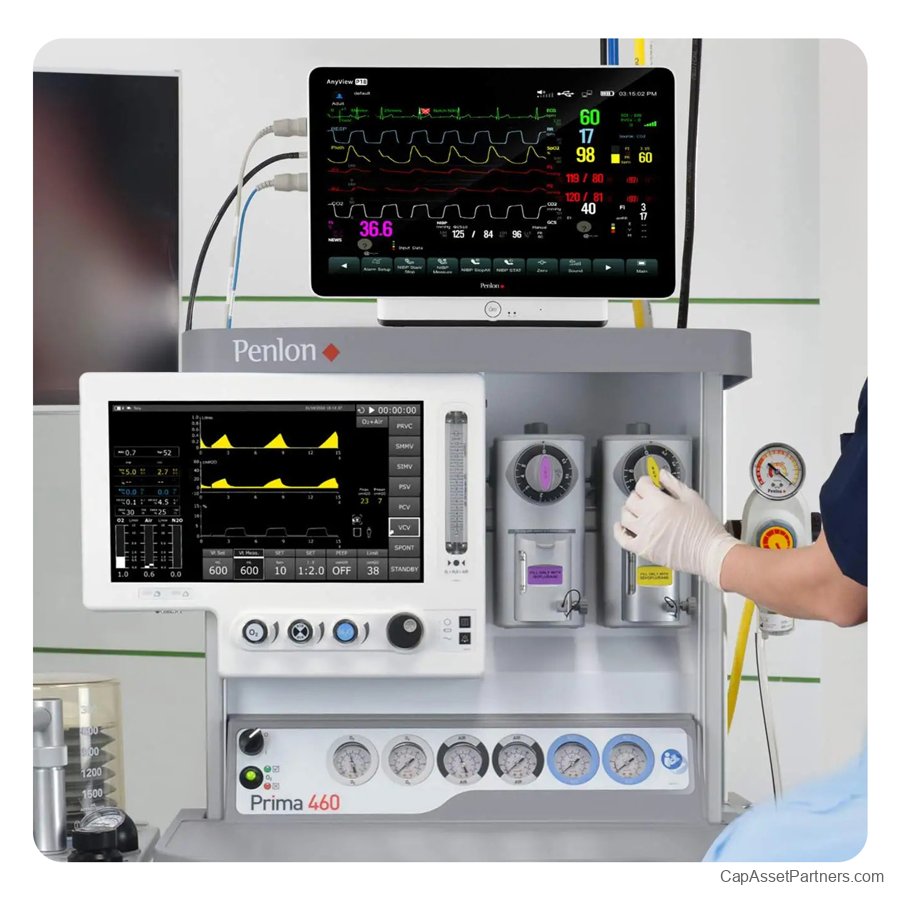

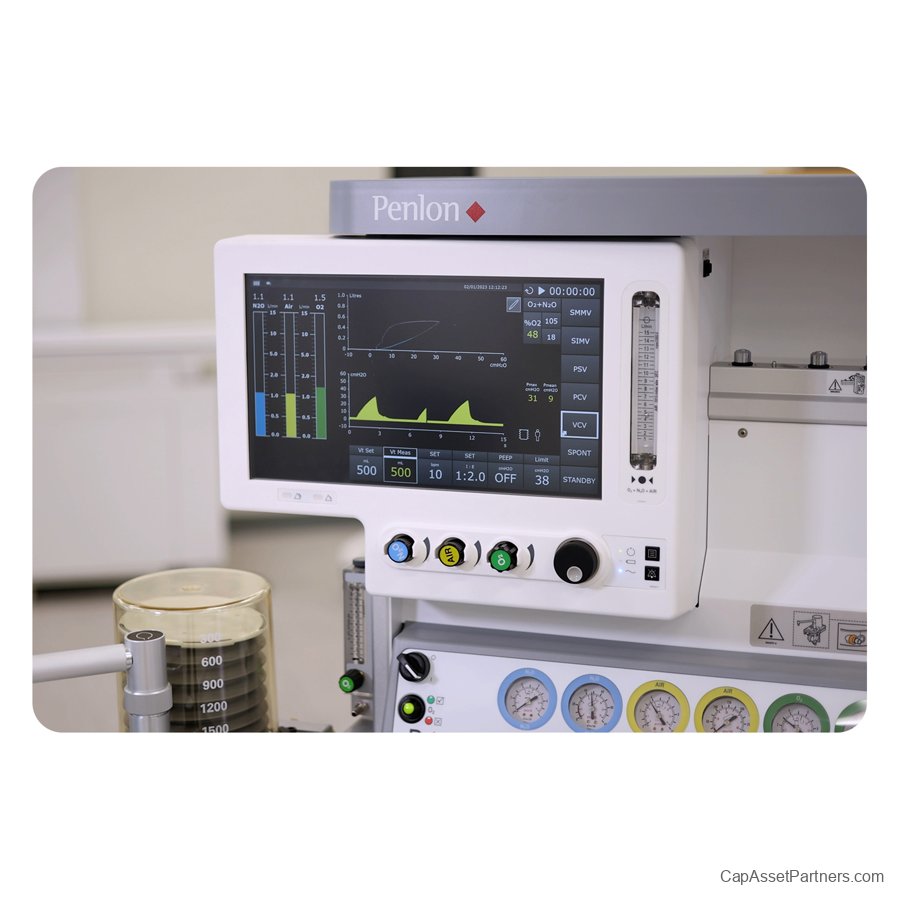

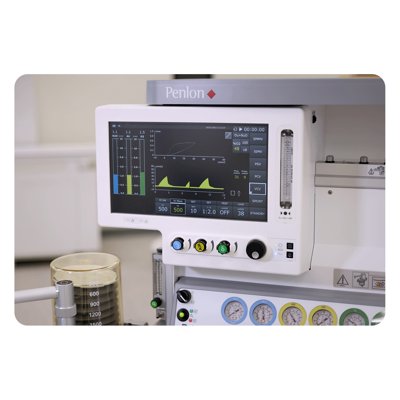

- 15.6-inch HD Touchscreen: Enables quick access to vital information and settings.
- Flexible Display Options: Choose from multiple user-selectable waveform and respiratory loop displays, including flow rate, tidal volume, P–V loop, V–F loop, and P–F loop.
- Versatile Ventilation Modes: Offers seven ventilation modes, with PEEP available in all modes except manual.
- Compatible with Selectatec Vaporizers: The Selectatec back bar allows for convenient use with any compatible vaporizer.

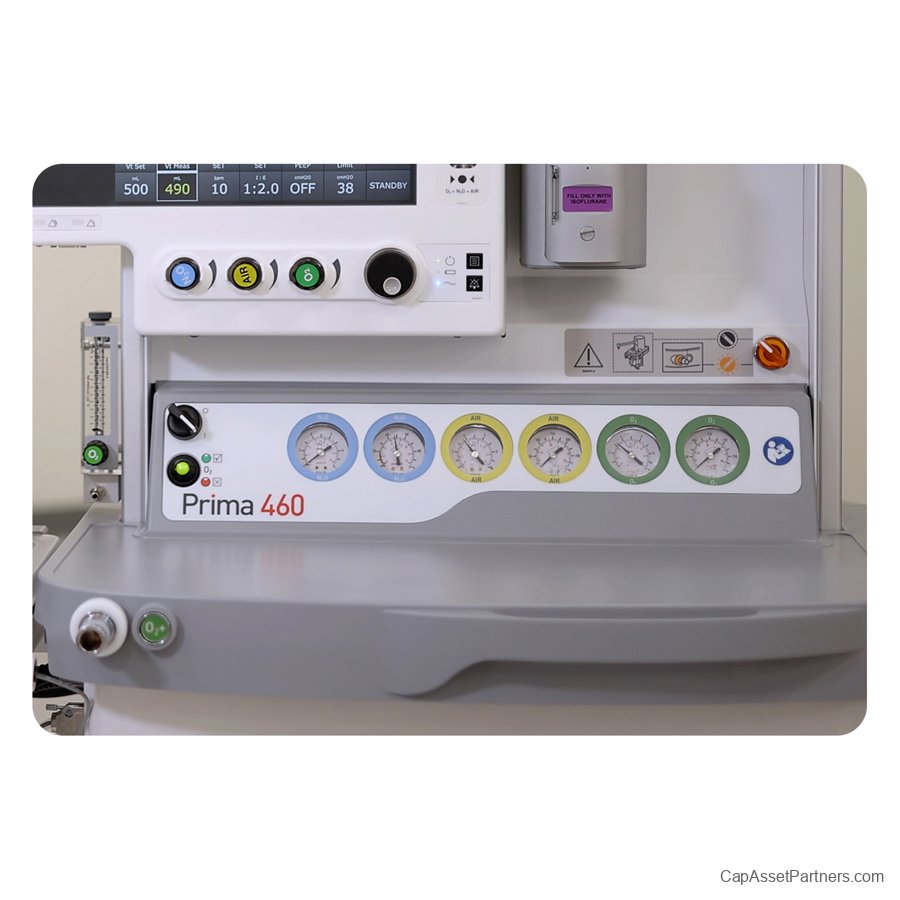

- Multiple Cylinder Yokes: Supports O2, N2O, and medical air with three available cylinder yokes.
- Reliable Backup Power: The built-in backup battery provides power for up to one hour in case of power interruptions.
- Anesthetic Gas Scavenging: Includes a sophisticated scavenging system to ensure a safe working environment.
- Monitor Mounting System: A top shelf with a mounting system allows for easy integration of patient monitors.
- Dual Flow Sensors: Enhance measurement accuracy for improved patient care.
- Comprehensive Alarms: Equipped with audio and visual alarms to alert the clinical team to potential issues.
Experience the reliability and user-friendliness of the Penlon Prima 460 Anesthesia Machine, designed to meet the demands of today’s healthcare professionals. This advanced anesthesia machine combines cutting-edge technology with essential safety features to ensure the best possible care for patients across all age groups.
Penlon Prima 460 Anesthesia Machine Specifications
Ventilation Modes:
- Volume Control Ventilation (VCV)
- Pressure Control Ventilation (PCV)
- Pressure Support Ventilation (PSV)
- Spontaneous Breathing (SPONT)
- Synchronized Intermittent Mandatory Ventilation (SIMV)
- Spontaneous Minute Ventilation (SMMV)
Additional Specifications:
- Weight: Approximately 65 kg (143 lbs)
- Power Supply: 100-240 VAC, 50/60 Hz
- Fresh Gas Flow: 0-15 L/min (0-3.96 gal/min)
- Oxygen Concentration: 21-100%
- Ventilator Operating Modes: Electronic, microprocessor-controlled
- End-Tidal CO2 Monitoring: Optional
- Gas Flow Meter Display: Digital
- Standby Power: Battery backup available
User Interface:
- Intuitive menu navigation
Safety Features:
- Alarms for high/low pressure, gas supply failure
- Backup battery for uninterrupted operation
Compatibility:
- Supports various circuit systems
- Compatible with standard anesthesia agents and vaporizers
Output Pressure: Up to 70 cm H2O (52.5 mmHg)
Note:
Always refer to the specific device manual for detailed operational procedures and safety guidelines.
