Peristaltic Pump Multi-Channel Cassettes

The Peristaltic Pump Multi-Channel Cassettes are expertly designed to meet the demanding needs of various laboratory applications. With a robust construction and versatile capabilities, these cassettes provide precise fluid control and ensure consistent performance throughout your experiments.

Cassette Options:

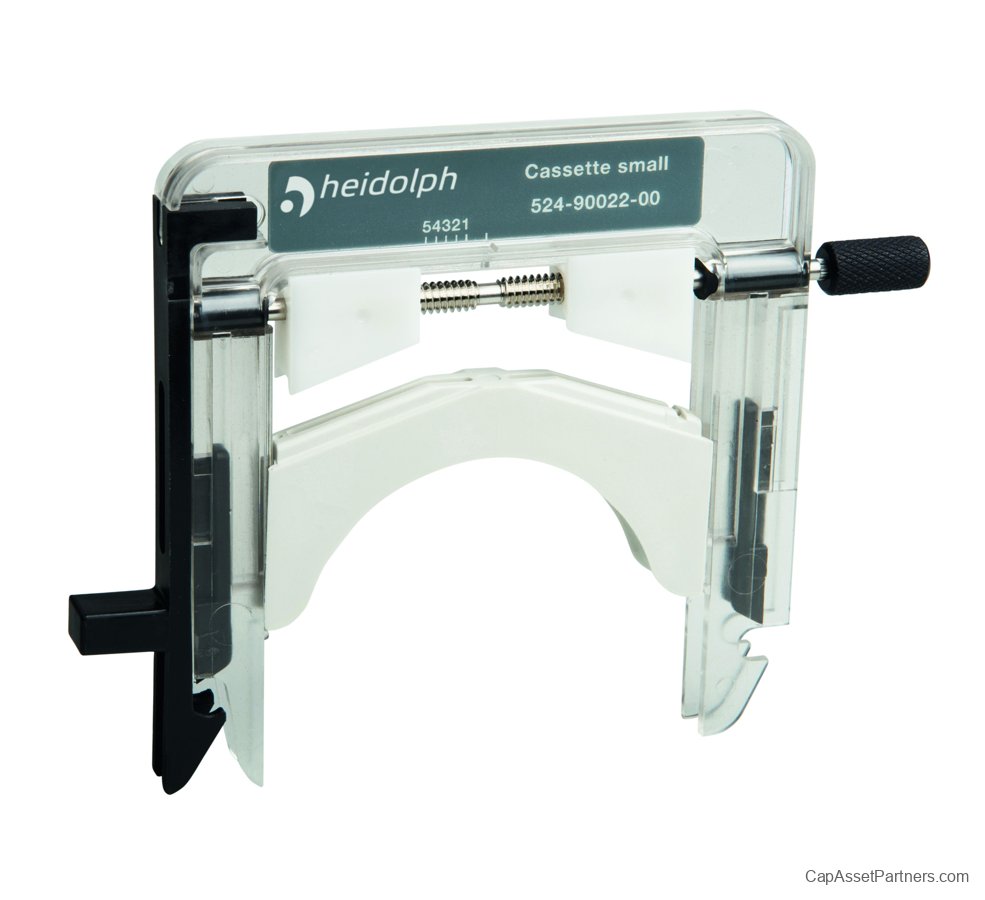

Cassette Small (Model: 036150490)

• Flow Rates: Adjustable flow rates ranging from 0.005 to 37 mL/min for precise dispensing.
• Tube Compatibility: Suitable for tubes with a 0.9 mm wall thickness.
• Tube Diameters: Available in multiple sizes - 0.2 mm, 0.5 mm, 0.9 mm, 1.4 mm, and 2.8 mm for flexible use.
• Operational Requirements: Requires two-stop tubing (40 cm) to operate efficiently.
• Stabilization: Equipped with stoppers to securely hold the tube in place.
• Extension Options: Couplings and tube extensions offer increased hose lengths in 1 meter increments.
• Compatibility: Works with C4 multi-channel pump head (max. 4 small cassettes) and C12 multi-channel pump head (max. 12 small cassettes).

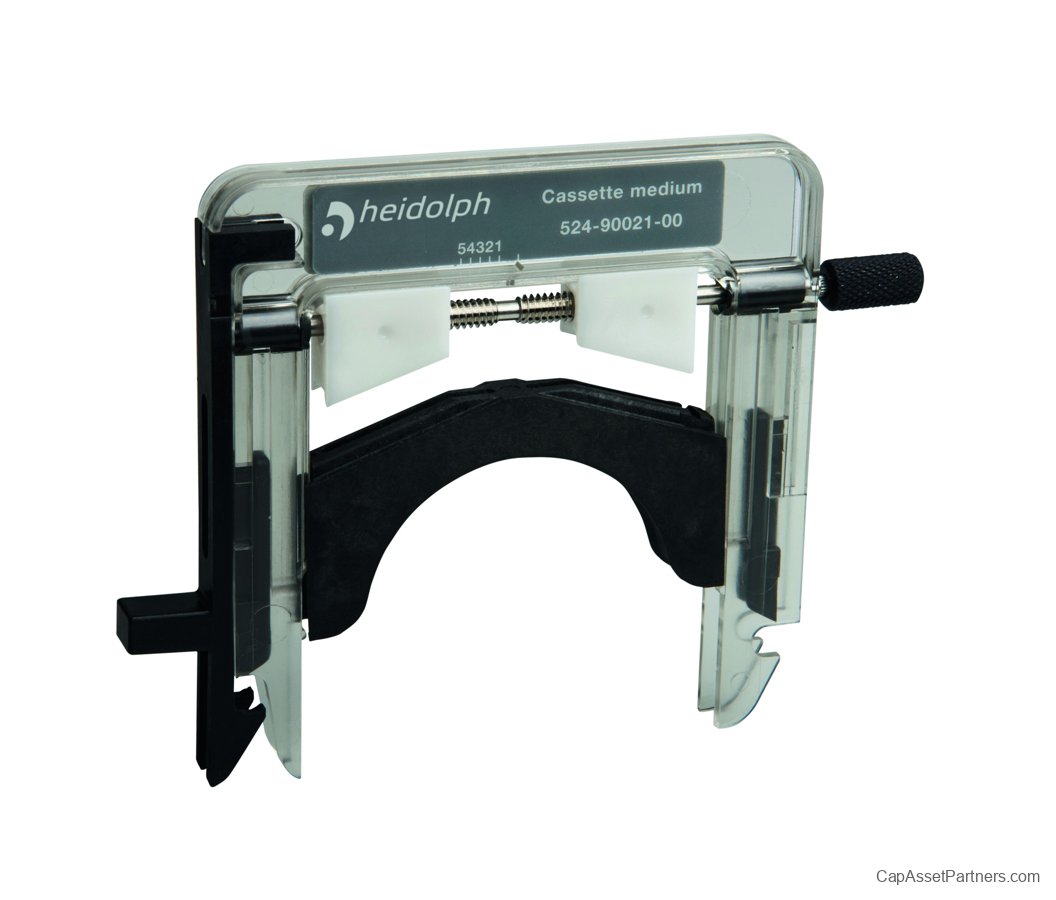

Cassette Medium (Model: 036150500)

• Flow Rates: Adjustable flow rates from 0.24 to 27 mL/min to accommodate various requirements.
• Tube Compatibility: Designed for tubes with a 1.6 mm wall thickness.
• Tube Sizes: Available in requested tube sizes of 0.8 mm and 1.7 mm for versatility.
• Compatibility: Works seamlessly with C8 multi-channel pump head (max. 8 medium cassettes).

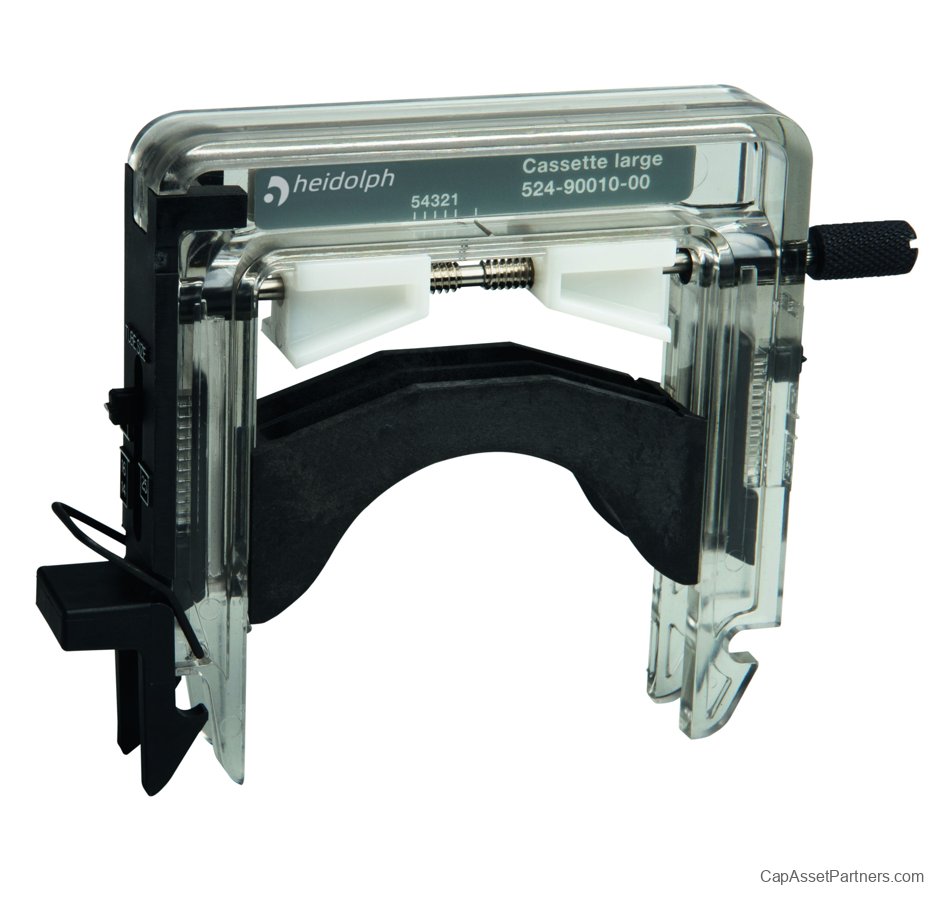

Cassette Large (Model: 036150510)

• Flow Rates: Supports flow rates from 1 to 364 mL/min, ideal for high-volume applications.
• Tube Compatibility: Designed for tubes with a 1.6 mm wall thickness to ensure durability.
• Tube Sizes: Available in 1.7 mm, 3.1 mm, 4.8 mm, and 6.4 mm tube diameters to meet specific needs.
• Compatibility: Compatible with C8 multi-channel pump head, allowing a maximum of 4 large cassettes.

Specifications Summary:

Choose the appropriate cassette based on flow requirements, tube compatibility, and experimental needs to achieve optimal results in your peristaltic pumping applications. The Peristaltic Pump Multi-Channel Cassettes are engineered for precision and reliability, making them an essential tool for any laboratory setting.
