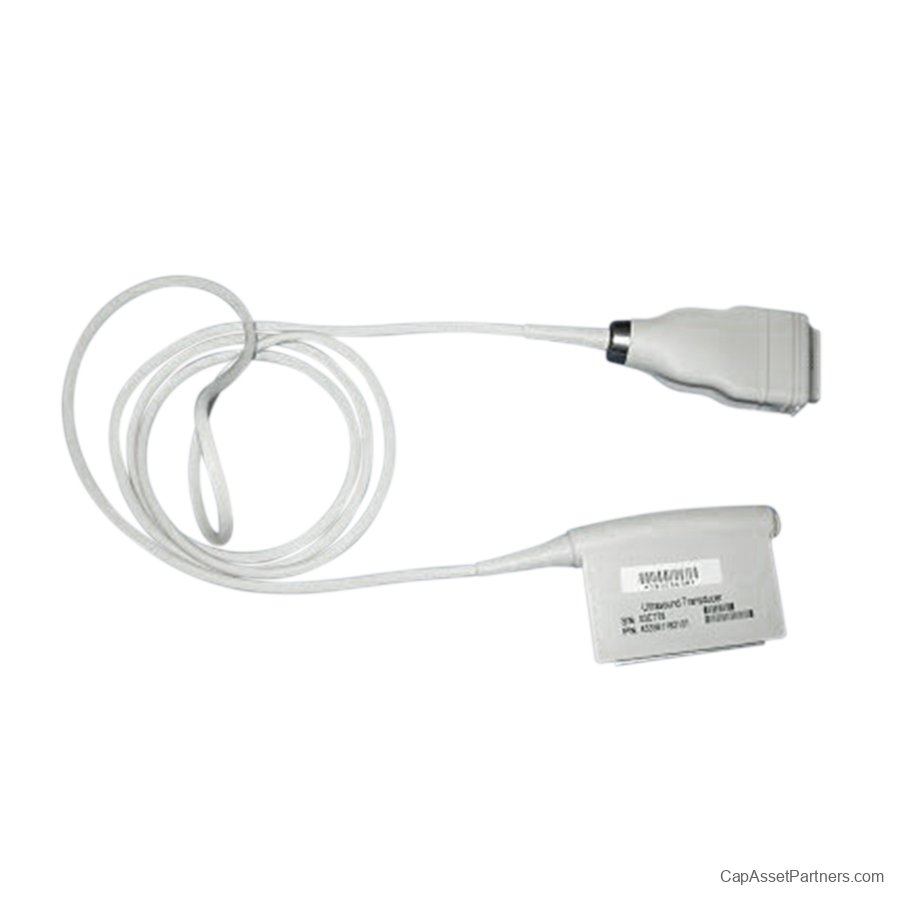

Philips 21475A/L12-3 Cartridge Connector

Philips 21475A/L12-3 Cartridge Connector

Discover the precision and reliability of the Philips 21475A/L12-3 Cartridge Connector, designed for optimal performance in medical imaging applications. This advanced connector operates within a frequency range of 12-3 MHz, ensuring crystal-clear signal transmission for enhanced diagnostic accuracy.
Key Features:

• Model: Philips 21475A/L12-3

• Part Number: 21475-68000

• Frequency Range: 12-3 MHz

Engineered for compatibility with Philips ultrasound systems, this cartridge connector is essential for healthcare professionals seeking to maintain the highest standards of imaging quality. Its robust design makes it a vital component for accurate patient assessments and procedures.
Elevate your medical imaging capabilities with the Philips 21475A/L12-3 Cartridge Connector. For pricing and availability, please reach out to us for more information.

Philips 21475A/L12-3 Cartridge Connector Specifications:

• Connector Type: Cartridge Connector

• Number of Pins: 12

• Pin Configuration: Circular

• Material: Copper alloy contacts

• Finish: Gold-plated contacts

• Insulation Resistance: > 1000 M? at 500 VDC

• Dielectric Strength: 1000 VAC

• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)

• Current Rating: 2 A per contact

• Voltage Rating: 50 VAC

• Insertion Force: 30 N maximum

• Extraction Force: 10 N minimum

• Dimensions:

• Length: 2.08 inches (52.83 mm)

• Width: 1.34 inches (34.04 mm)

• Height: 0.59 inches (15.00 mm)

• Weight: Approximately 0.09 lbs (40.82 g)

• Mounting Type: PCB mount

• Locking Mechanism: Positive locking

• Compliance: RoHS compliant
