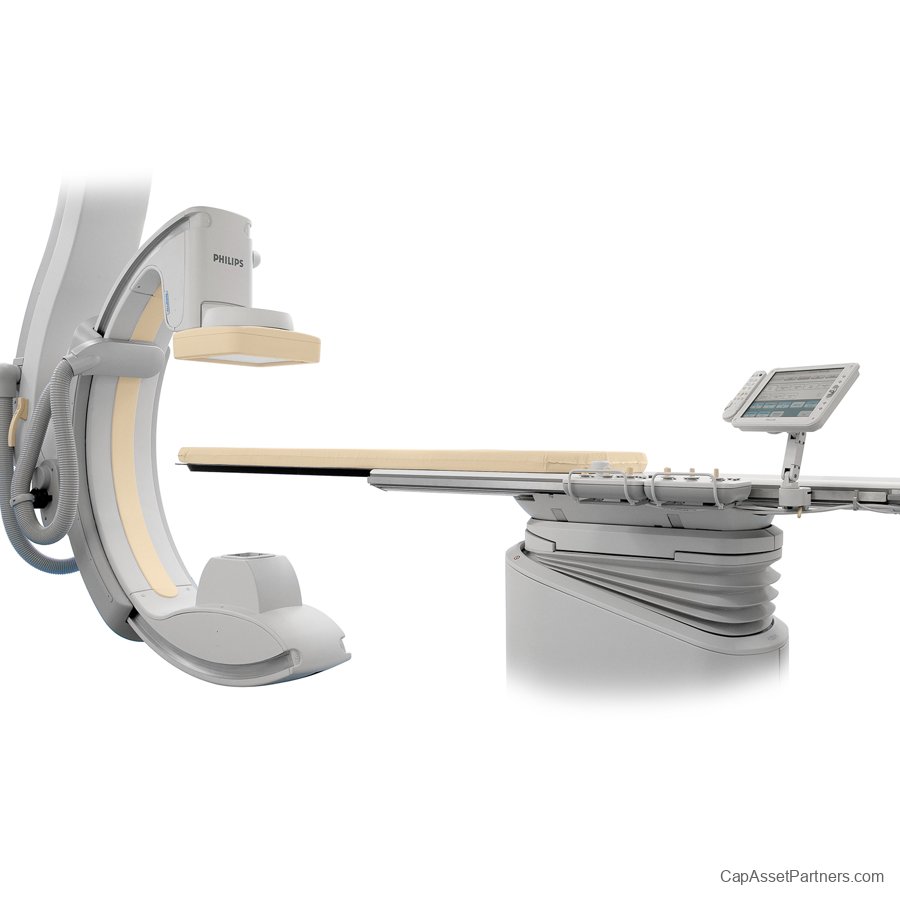

Philips Allura Xper FD20 Cath/Angio System

Product Description: Philips Allura Xper FD20 Cath/Angio System

Comprehensive Cardiovascular Imaging for Interventional Procedures

The Philips Allura Xper FD20 Cath/Angio System is a sophisticated solution designed for the complete spectrum of cardiac and vascular interventions. This advanced imaging system integrates cutting-edge technology to streamline workflows, enhance image acquisition, and provide exceptional visualization tools tailored for clinical excellence. With features like multimodality access and robust hemodynamic monitoring, the Allura Xper FD20 ensures precise diagnostics and effective intervention planning.

Key Features and Components

Experience the next level of cardiovascular care with the Philips Allura Xper FD20 Cath/Angio System, where precision meets efficiency in interventional procedures.

Philips Allura Xper FD20 Cath/Angio System Specifications:

Gantry:

• Iso-center to floor (FD20 ceiling): 106.5 cm (41.9 in)

• Iso-center to floor (FD20 floor): 113.5 cm (44.7 in)

• Longitudinal movement: Manual and motorized for 300 cm (118.1 in) at 15 cm/sec, includes auto stops at park, cardio, neuro, and lower peripheral positions

• Longitudinal movement (FD20 floor): None

• L-arm rotation: Motorized and manual, over 180° with snap positions at 90°, 0°, -90°

• C-arm rotation (head-end position): 120° LAO, 185° RAO; (side position): 90° LAO, 90° RAO

• C-arm rotation speed: Up to 25°/sec; 55°/sec for rotational scan

• C-arm angulation (head-end position): 90° cranial, 90° caudal; (side position): 185° cranial, 120° caudal

• C-arm angulation speed: Up to 25°/sec

• Focal spot to iso-center: 81 cm (31.9 in)

• Source Image Distance: 89.5 - 119.5 cm (35.2 - 47.1 in)

• C-arm depth: 90 cm (35.4 in)

• Rotation of flat detector: Re-positioning from portrait to landscape within 3 sec (Xper Access)

• Programmable positions: 2 standard positions

Xper Table:

• Tabletop material: Radio translucent carbon fiber

• Tabletop length: 319 cm (125.6 in)

• Tabletop width: 50 cm (19.7 in)

• Motorized tabletop height adjustment: 79 to 107 cm (31.1 to 42.1 in)

• Tabletop metal-free overhang: 125 cm (49.2 in)

• Longitudinal float: 120 cm (49.2 in)

• Transversal float: 36 cm (14.2 in)

• Maximum allowable patient weight: 250 kg with additional force of 500 N for CPR (CPR can be performed in any longitudinal position)

• Modules positioning: Xper Module, Xper Imaging, and Xper Geometry can be positioned on three sides

• Cable integration: Cables incorporated in the table

• Patient mattress: Slow recovery foam, density 58 kg/m³, thickness 7 cm

Monitor Ceiling Suspension:

• Number of monitors: 2, 3, 4, 6, or 8

• Rotation range: 350°

• Transversal movement: 300 cm (118.1 in)

• Longitudinal movement: 330 cm (129.9 in)

Flat Panel Detector:

• Size: 42 x 52 cm (16.5 x 20.5 in), including BodyGuard

• Maximum field of view: 30 x 38 cm (11.8 x 14.9 in)

• Image matrix: 2480 x 1920 px at 14 bits depth

• Detector zoom fields:

• 30 x 30 cm (11.8 x 11.8 in)

• 26 x 26 cm (10.2 x 10.2 in)

• 22 x 22 cm (8.7 x 8.7 in)

• 19 x 19 cm (7.5 x 7.5 in)

• 16 x 16 cm (6.3 x 6.3 in)

• 13.5 x 13.5 cm (5.3 x 5.3 in)

• 11 x 11 cm (4.3 x 4.3 in)

• Pixel pitch: 154 ?m

• Detector bit depth: 14 bits

• Nyquist frequency: 3.25 lp/mm

• DQE (0): > 73% at 0 lp/mm

• Digital output: 2k², 1k², and 512² at 14 bit depth

• MTF at 1 lp/mm: > 60%

• MTF at Nyquist frequency: 10%

Velara X-ray Generator:

• Generated power: Microprocessor-controlled, 100 kW high frequency converter

• Minimum switching time: 1 ms

• Voltage range: 40 to 125 kV

• Maximum current: 1250 mA at 80 kV

• Maximum continuous power: 2.4 kW for 0.5 hours, 2 kW for 8 hours

• Nominal power: 100 kW (1000 mA at 100 kV)

MRC-GS 0407 X-ray Tube:

• Focal spot size: 0.4/0.7 nominal focal spots with 30/65 kW loadability

• Grid-switched pulsed fluoroscopy: Yes

• Fluoro power: 4500 W for 10 minutes, 3500 W for 20 minutes

• Anode heat dissipation: 11,000 W

• Max. heat dissipation of assembly: 3400 W

• Extra pre-filtration: SpectraBeam dose management with filters (0.2, 0.5, and 1.0 mm copper equivalent)

• Cooling liquid: Oil-cooled with thermal safety switch

• Anode cooling: Direct oil cooling system with 200 mm diameter

Monochrome LCD Monitor:

• Size: 18-inch TFT-LCD

• Format: Native 1280 x 1024 SXGA

• Grey-scale resolution: 10 bit with correction

• Wide viewing angle: Approx. 160°

• High brightness: Max 600 Cd/m² (default 500 Cd/m²), ambient light control

• Protection screen: Yes, for examination room

Color LCD Monitor:

• Size: 19-inch TFT-LCD

• Format: Native 1280 x 1024 SXGA

• Wide viewing angle: Approx. 160°

• High brightness: Controlled at 200 Cd/m² with ambient light control

• Protection screen: Yes, for examination room
