Philips Clear Vue 550 Ultrasound

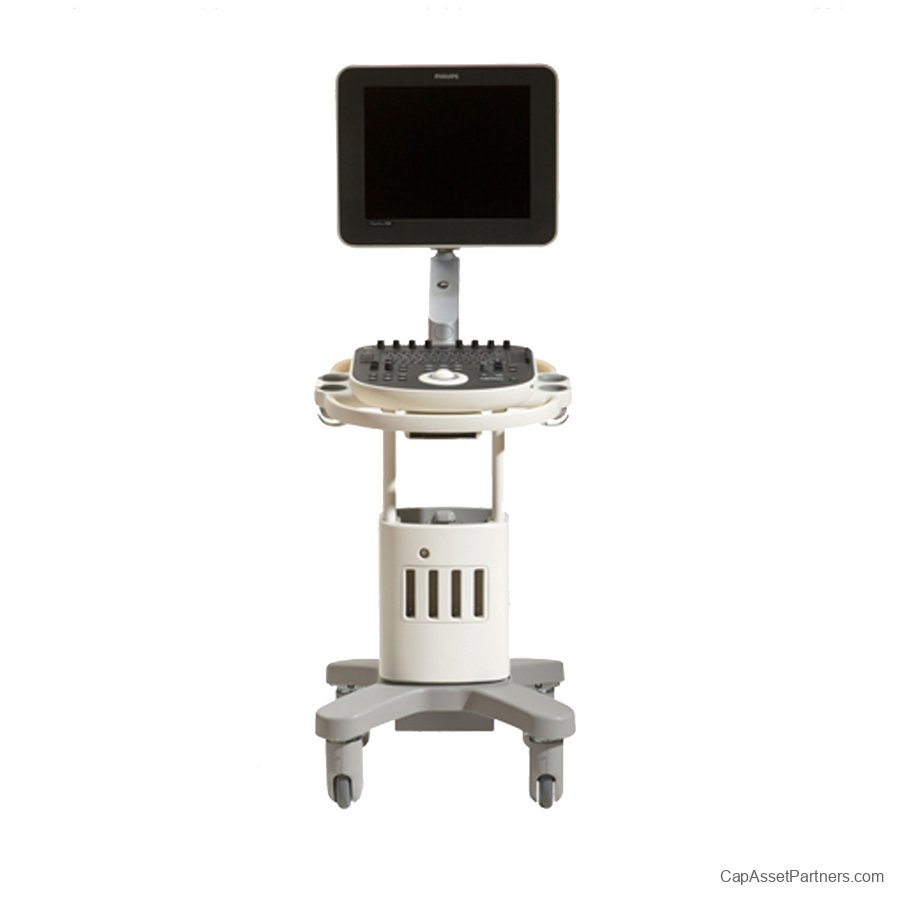

Philips Clear Vue 550 Ultrasound: Advanced Imaging Redefined
The Philips Clear Vue 550 Ultrasound is a state-of-the-art imaging system meticulously designed to enhance diagnostic capabilities and improve workflow in diverse medical environments. This ultrasound unit features Philips Active Array technology, which integrates advanced imaging capabilities directly into the transducer, delivering exceptional image quality and clarity that enhances diagnostic confidence.
With its compact and portable design, the Clear Vue 550 is both lightweight and user-friendly, making it an ideal choice for hospitals, clinics, and outpatient facilities. Key features include a 17-inch fold-down LCD monitor mounted on a fully articulating arm for versatile positioning, cable management hooks for a tidy workspace, and an integrated footrest for added comfort during examinations.
The system is equipped with a simplified interface that includes in-context back-lighting, ensuring easy navigation. Movement is effortless with its wrap-around handle and four-way swivel wheels. The Clear Vue 550 also accommodates a variety of clinical needs with its EKG plug, USB flash port, and four transducer ports. Additionally, it supports DVD/CD write and read capabilities, providing versatile data storage solutions.
Elevate your imaging capabilities with the Philips Clear Vue 550 Ultrasound, where innovation meets practicality for outstanding performance in any medical setting.

Philips Clear Vue 550 Ultrasound Specifications

System Architecture

• Acquisition Frame Rate: > 1128 fps (frames per second) in high frame rate mode

• All-digital broadband beamformer

• Microfine 2D focusing with dynamic focal tuning

Applications

• Abdominal

• Small parts and superficial

• Musculoskeletal

• Urology and prostate

• Obstetrical

• Gynecological and fertility

• Vascular – Cerebrovascular – Peripheral vascular

• Transcranial Doppler

• Cardiac: Adult/Pediatric

Imaging Modes

• Philips Microfine 2D focusing

• Directional Color Power Angio

• Pulsed wave Doppler

• Anatomical M-mode

• Duplex for simultaneous 2D and Doppler

• Intelligent Doppler

• Trapezoidal

• Adaptive Doppler

Connectivity

• Three USB ports

• 320 GB hard drive space

• DVD/CD write and read capabilities

• Direct digital storage of system configuration backup, including user-defined presets and OB trending data, to USB or DVD/CD

• Ability to export AVI clips and BMP images to USB flash for PC viewing

Dimensions

• Depth: 23.0 in / 58.4 cm

• Height: 53.6 – 59.8 in / 136.1 – 151.9 cm

• Control Panel Height (non-adjustable): 33.0 in / 83.7 cm

• Width: 20.5 in / 52.0 cm

• Weight: 115 lb / 52 kg (with printer)

Display

• 17-inch (338 x 270 mm) high-resolution color monitor

• Mounted on fully articulating arm with tilt and swivel

• Tilt: -60° to +90° (fully flat)

• Swivel: ± 90°

• SXGA resolution: 1280 x 1024, 60 Hz, non-interlaced RGB

• In-plane switching (IPS) panel for superior viewing angle and grayscale reproduction

Power Requirements

• Power: 450 VA

• Power Consumed: 300 VA

• Frequency: 50 to 60 Hz

• Voltage: 100 to 240 VAC
