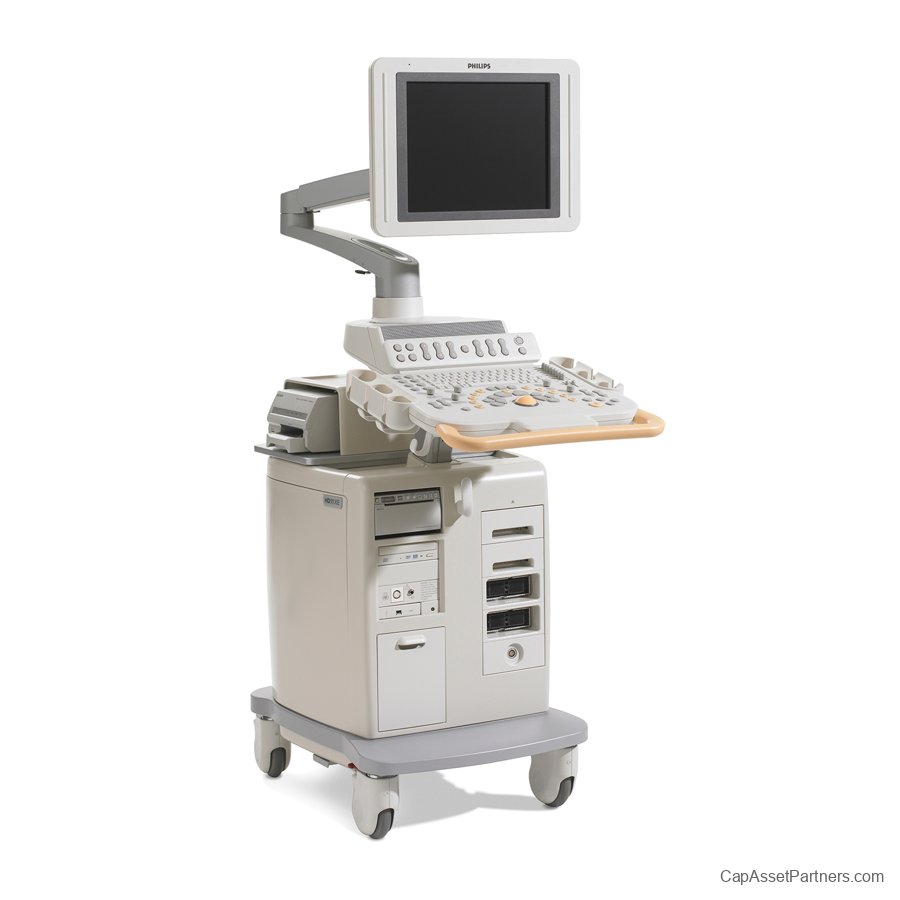

Philips HD11xe Ultrasound: A Versatile Solution for Clinical Excellence
The Philips HD11xe ultrasound machine is a premier mid-range shared service system designed to meet the diverse needs of modern healthcare facilities. With its compact design and user-friendly ergonomics, this ultrasound platform is ideally suited for private practice environments, making it a reliable choice for healthcare professionals.
Versatile Applications
The HD11xe excels across a wide range of applications, including:

• OB/GYN

• Abdominal

• Musculoskeletal (MSK)

• Pediatrics

• Cerebrovascular

• Peripheral Vascular

• Small Parts

• Breast

• Cardiology

• Transcranial

Key Standard Features
The Philips HD11xe is equipped with advanced features that enhance diagnostic capabilities:

• B, M, PW Doppler, and Colorflow imaging

• High-resolution flat panel monitor for clear visuals

• Anatomical M-Mode for precise measurements

• SonoCT and XRES technologies for improved image clarity

• Tissue Doppler Imaging (TDI) for advanced cardiac assessments

• Pulse Inversion Harmonic Imaging for detailed imaging

• 3D Imaging for volumetric assessment

• Adaptive Color Doppler for enhanced flow visualization

• CD-RW drive for convenient data storage

• Netlink DICOM 3.0 for seamless integration in a digital environment

Optional Features
Expand the capabilities of the HD11xe with a range of optional features tailored to specific diagnostic needs:

• Volumetric Imaging (3D/4D)

• Stress Echo assessments

• Contrast Imaging for enhanced visualization

• Continuous Wave (CW) Doppler for specialized cardiac studies

With the Philips HD11xe ultrasound machine, clinicians can expect a blend of innovative technology, flexibility, and exceptional performance, making it an essential tool for effective patient care. Elevate your diagnostic imaging capabilities with this outstanding ultrasound system.

Philips HD11xe Ultrasound Specifications

• Dimensions:

• Width: 22.8 in (57.9 cm)

• Depth: 25.2 in (64.0 cm)

• Height: 38.4 in (97.5 cm)

• Weight:

• Approximately 132 lbs (60 kg)

• Power Supply:

• Voltage: 100-240 V

• Frequency: 50/60 Hz

• Display:

• Type: 15-inch LCD

• Resolution: 1024 x 768 pixels

• Transducer Frequency Range:

• 2 to 10 MHz

• Image Modes:

• B-mode, Color Doppler, Spectral Doppler, M-mode

• Probe Types:

• Linear, Curvilinear, Phased Array

• Maximum Imaging Depth:

• Up to 30 cm (12 in)

• Storage:

• Hard Drive: 250 GB (approx. 1,000 images)

• Connectivity:

• USB ports for data transfer

• DICOM compatibility for network connectivity

• Battery Life:

• Up to 2 hours on a full charge

• Software Features:

• Automated measurements and calculations

• 3D imaging capability

• Image archiving and review

• Operating Temperature:

• 10°C to 35°C (50°F to 95°F)

• Humidity:

• 30% to 85% (non-condensing)

• Operating System:

• Windows-based interface

Please note that this information is based on historical specifications and may vary or have additional configurations based on the model version or software updates.
