Philips Heartstart FR3 Defibrillator

Philips Heartstart FR3 Defibrillator: Reliable Emergency Response

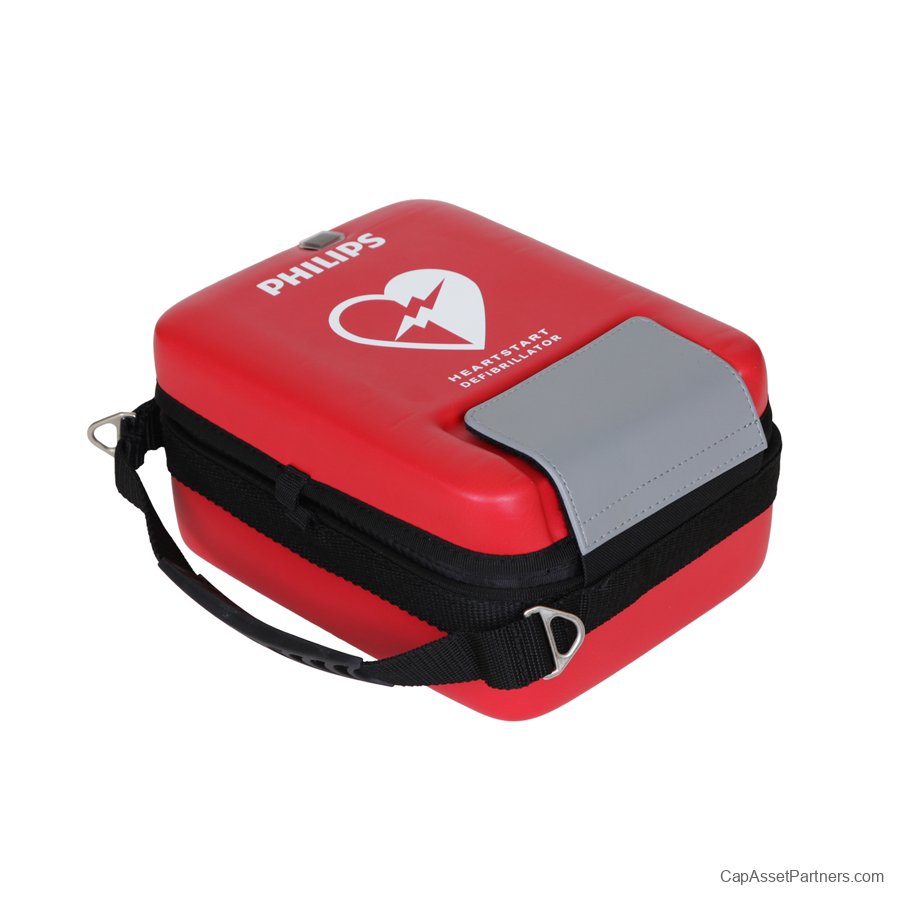

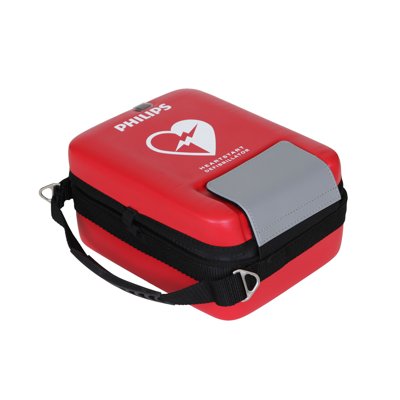

The Philips Heartstart FR3 Defibrillator stands out as the most compact and lightweight professional-grade defibrillator/AED available from leading manufacturers. Weighing only 3.5 pounds, this device is designed for mobility and can be easily stored in a carrying case alongside other essential emergency medical equipment, making it perfect for responders on the go.
Engineered for rapid deployment in critical situations, the Heartstart FR3 is equipped with pre-connected SMART PAD III’s that eliminate the hassle of foil pouches—simply peel and place. The device features innovative Philips SMART CPR guidance software, which offers patient-specific instructions to enhance the efficiency of emergency technicians in the field. Its high-resolution color LCD screen provides clear visuals, ensuring critical information is easily accessible in any environment. For versatility, the device is also available in a bilingual configuration, facilitating effective communication in diverse situations.

Key Features:

• Compact and Portable: The Heartstart FR3 is small and extremely lightweight, tailored for mobile use in emergency situations.

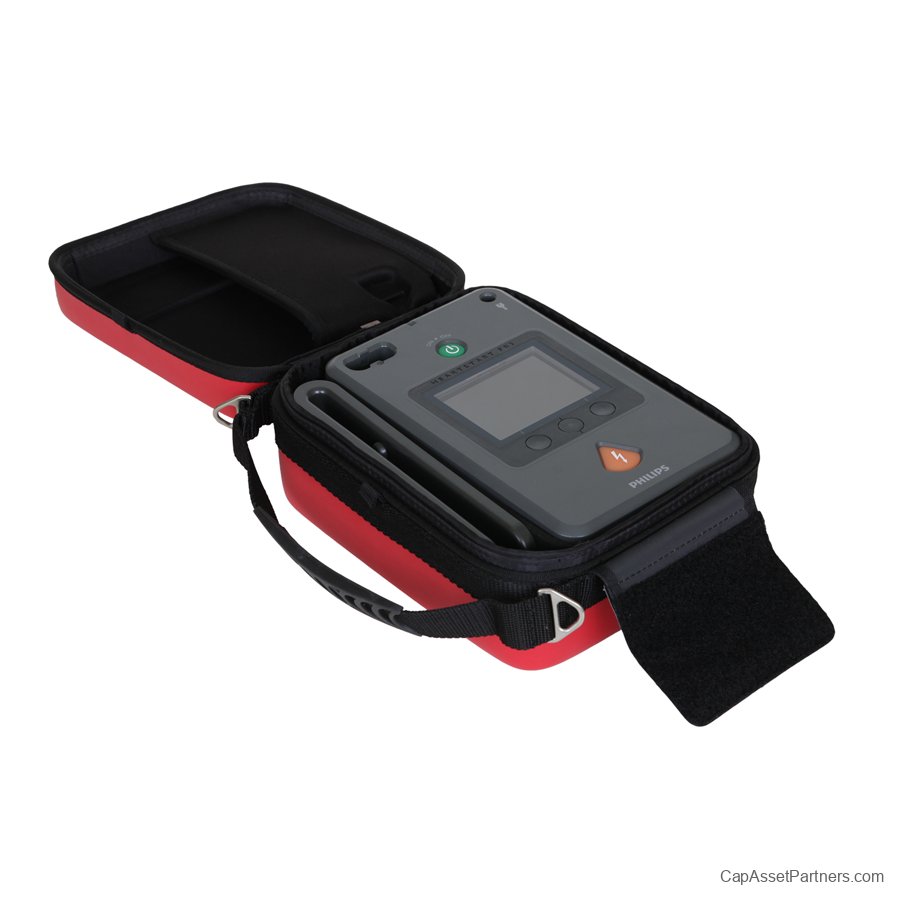

• Automatic Activation: The unit powers on automatically when the carrying case is opened, allowing responders to concentrate immediately on pad placement.

• SMART PADS III: Pre-connected pads simplify the process—just peel and apply.

• Philips SMART CPR Guidance: Provides real-time, patient-specific feedback to enhance CPR efforts.

• Quick Shock Technology: Minimizes interruptions during CPR to maximize patient outcomes.

• Durable Construction: Designed to meet US Military standards, ensuring reliability even in challenging environments.

• Automated Self-Testing: The AED conducts regular self-checks to guarantee its readiness for use.

• Bilingual Capabilities: Voice and text prompts can be configured to accommodate varied language needs.

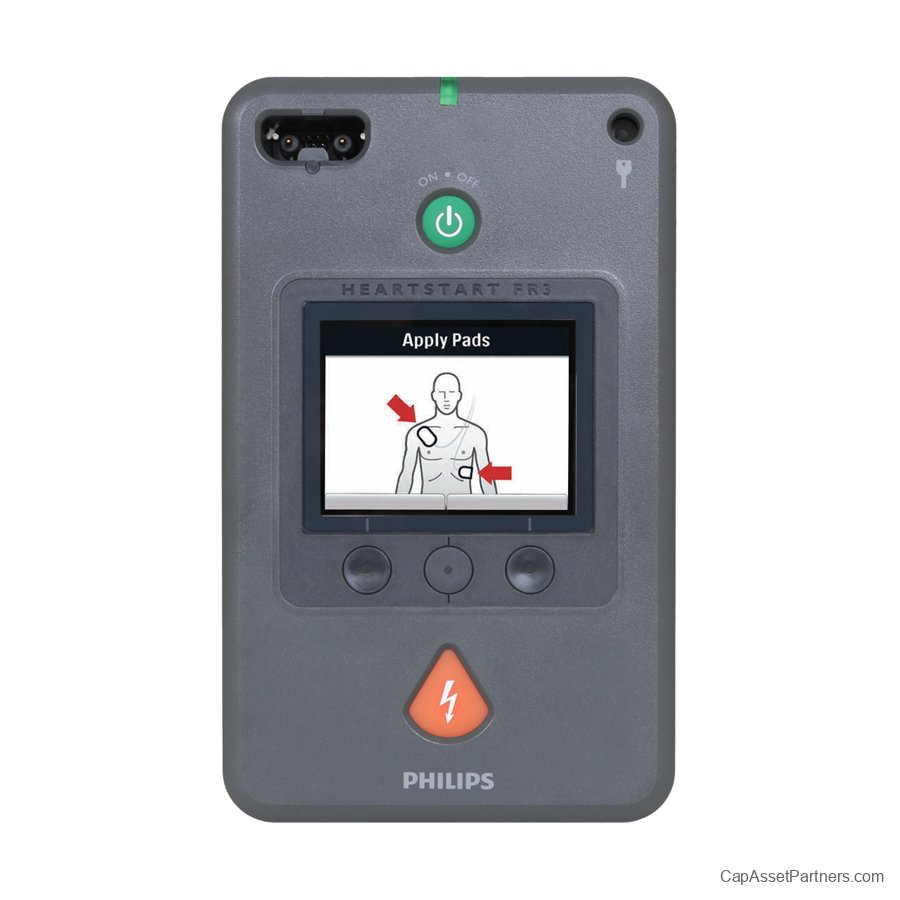

• High-Resolution LCD Display: Offers easy reading of important information in any lighting condition.

• Pediatric Support: An optional Infant/Child key reduces defibrillation therapy in accordance with pediatric CPR protocols.

Optimize your emergency response capabilities with the Philips Heartstart FR3 Defibrillator—combining advanced technology, user-friendly features, and a lightweight design for effective lifesaving interventions.

Philips Heartstart FR3 Defibrillator Specifications

Defibrillator

• Model Options:

• 861388 text display

• 861389 ECG and text display

• Waveform:

• SMART Biphasic Truncated Exponential waveform

• Adult nominal peak current: 32A (150J into a 50-ohm load)

• Pediatric nominal peak current: 19A (50J into a 50-ohm load) using optional Infant/Child Key

• Shock Delivery:

• Anterior-anterior (Lead II) position for adults

• Anterior-posterior position for infants and children under 55 lbs (25 kg) or 8 years old

• Controls:

• On/Off button, shock button, option buttons

• Auto-On feature with optional FR3 carry case

• Indicators:

• High-resolution color LCD, beeper, voice prompts, tones and chirps, audio speaker, connector socket, ready light, shock button

• Advanced Mode:

• Configurable using optional HeartStart Configure software

ECG Display

• Screen:

• LCD color display, 320 x 240 pixels, 2.8" x 2.1" (71 x 53 mm)

• Frequency Range:

• 1 Hz to 30 Hz (-3dB), nominal (non-diagnostic)

• Lead:

• Lead II using anterior-anterior adult pads placement

Physical

• Size:

• 2.7" high x 5.3" wide x 8.7" deep (68.6 x 134.6 x 220.9 mm)

• Weight:

• 3 lbs 8 oz (1.6 kg) with FR3 primary battery installed

Environmental

• Sealing:

• Meets IEC529 class IP55 with battery installed

• Temperature:

• Operating/standby: 32°F to 122°F (0°C to 50°C)

• Altitude:

• Meets IEC 60601-1:5.3 (1013 to 572 mbar (hPa), equivalent to air pressure from 0 to 15,000 feet)

• Shock/Drop Tolerance:

• Meets MIL-STD-810F 516.5, Procedure IV (after a one-meter drop to any edge, corner, or surface in standby mode)

• Vibration:

• Meets MIL-STD-810F 514.5 C-17

Bluetooth 2.0

• Module:

• Bluetooth 2.0 Class II Wireless Transceiver

• Function:

• Transmit retrospective event data or configuration setting wirelessly

Patient Analysis System

• ECG Analysis:

• Evaluates impedance of defibrillator pads for proper contact with patient skin, assesses the ECG rhythm and signal quality to determine if a shock is appropriate; detects artifact and pacemaker

• SMART CPR:

• Evaluates VF characteristics to determine initial therapy: shock first, or CPR first quickly followed by a shock

• Sensitivity/Specificity:

• Meets AAMI DF80 requirements and AHA recommendations for adult defibrillation

• Quick Shock:

• Typically arms in <8 seconds from the end of the “Stop CPR” prompt

FR3 Primary Battery

• Type:

• 12 VDC, 4.7 Ah, lithium manganese dioxide | Long-life primary cells

• Performance:

• Typically 300 shocks or 12 hours of operating time at 77°F (25°C) for monitoring after No Shock Advised (NSA); 7.5 hours of operating time at 77°F (25°C) for CPR after NSA

• Standby Life:

• 3 years minimum when stored under standby environmental conditions (battery installed)

• Shelf Life:

• 5 years

SMART Pads III

• Application:

• Disposable, multifunction defibrillation pads for adult or infant/child patients. Time-saving peel and place pads can be preconnected to FR3 for routine self-testing.

FR3 Data Card

• Function:

• Stores a minimum of 8 hours of ECG, event, and voice recording (if configured). Also used for configuring FR3.

Automated and User-Activated Self-Tests

• Automatic Self-Test:

• Tests internal circuitry, waveform delivery system, ECG acquisition, temperature, status (or readiness) of attached accessories (SMART Pads III and FR3 data card) and battery

• Automated Self-Test Frequency:

• Daily, weekly, monthly, power on, and runtime during all modes of operation

• User Initiated Tests:

• Automatic self-tests plus tone, display, and button performance

FR3 Training Battery and Training Pads (Optional)

• Function:

• Places FR3 into a scenario-based training mode, simulating shock therapy

• Type:

• 10.8 Volt, 4.5 Ah Li-ion battery
