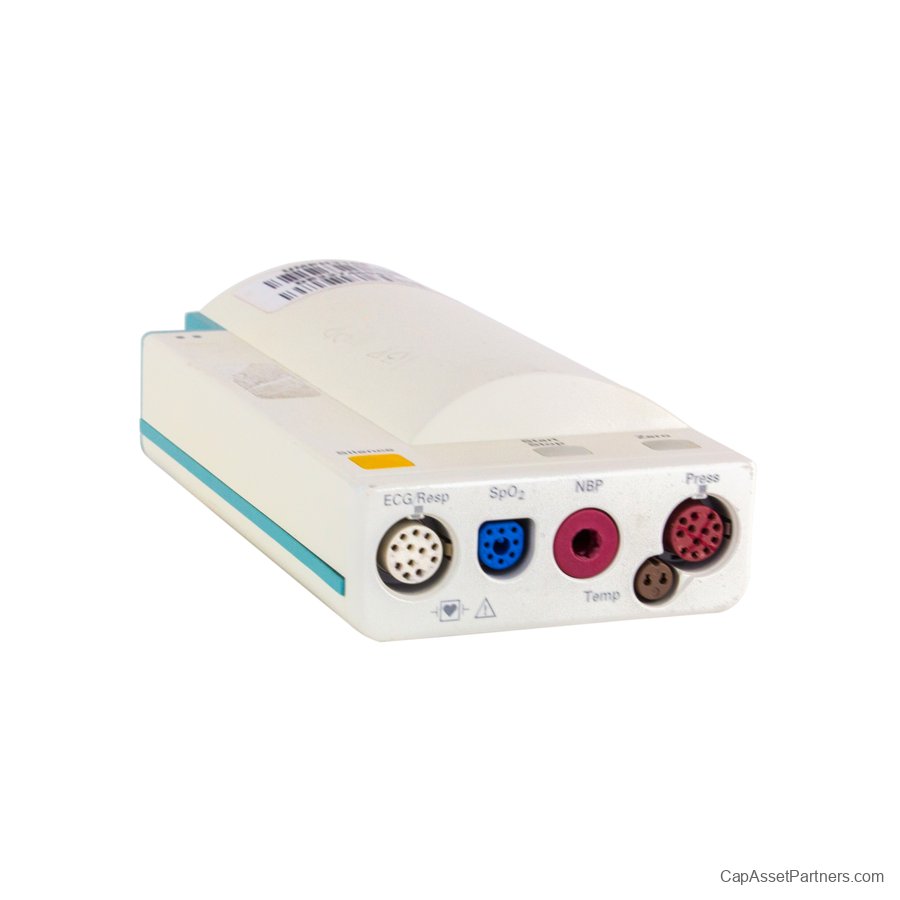

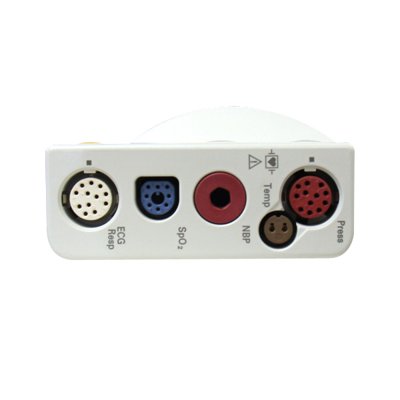

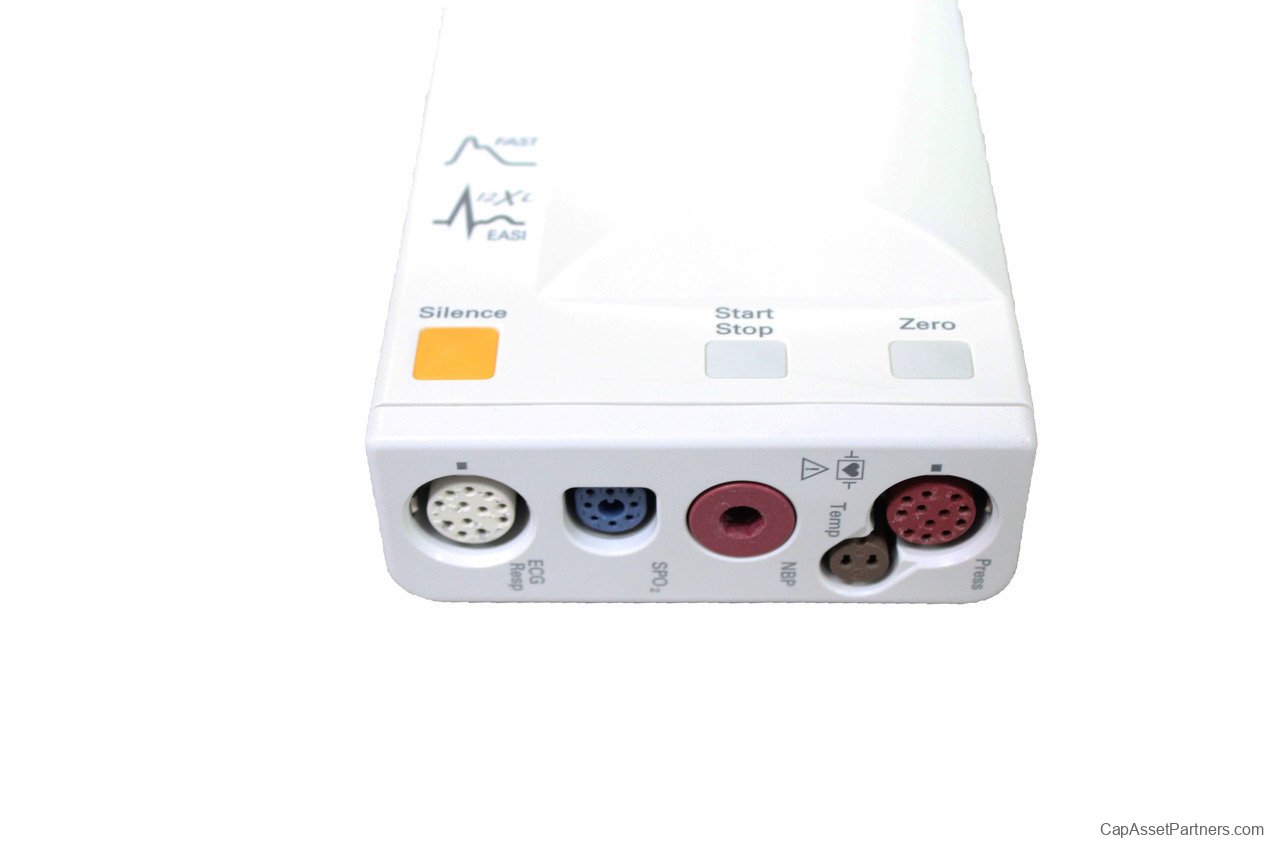

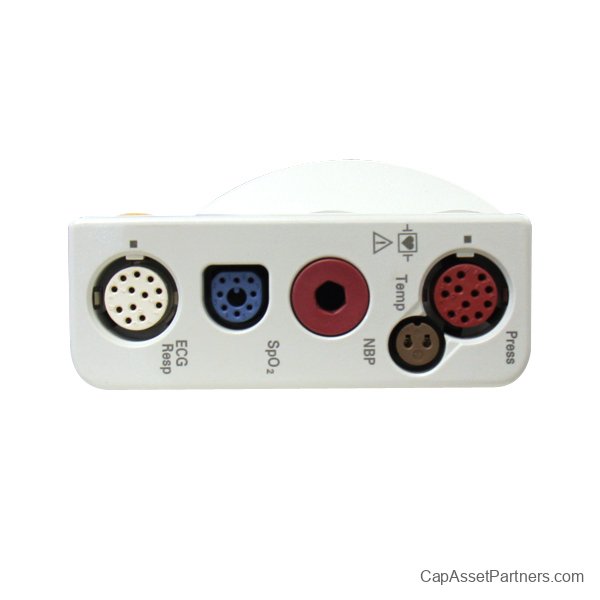

Philips Intellivue Module M3001A - A01C06 - Fast SPO2, NIBP, ECG, Temp, IBP

Introducing the Philips Intellivue Module M3001A (A01C06) – your reliable solution for comprehensive patient monitoring. Designed for seamless integration with the Philips IntelliVue series, this versatile module provides essential measurements, including FAST SpO2, NIBP (Non-Invasive Blood Pressure), ECG (Electrocardiogram), Temperature, and IBP (Invasive Blood Pressure).
Engineered to enhance clinical efficiency, the M3001A module delivers accurate and real-time data to support informed decision-making in critical care settings. Its user-friendly interface ensures that healthcare professionals can quickly access vital signs, enabling timely interventions and improved patient outcomes.
Each Philips Intellivue M3001A module undergoes rigorous testing and cleaning by skilled biomedical technicians to ensure optimal performance and reliability in a patient care environment. Elevate your medical monitoring capabilities with the trusted performance of the Philips Intellivue Module M3001A, designed to meet the high standards of healthcare providers around the globe.

Philips Intellivue Module M3001A

• A01C06 Specifications:

• SPO2 Measurement:

• Range: 0% to 100%

• Accuracy: ±2% (70% to 100%)

• Resolution: 1%

• NIBP (Non-Invasive Blood Pressure):

• Pressure Range: 0 to 300 mmHg (0 to 40 kPa)

• Accuracy: ±5 mmHg (±0.67 kPa)

• Measurement Method: Oscillometric

• ECG (Electrocardiography):

• Lead Types: 3-lead, 5-lead, 12-lead

• Frequency Response: 0.05 to 150 Hz

• Gain Range: 1, 2, 5, 10, 20 mm/mV

• Temperature Measurement:

• Measurement Range: 32°C to 42°C (89.6°F to 107.6°F)

• Accuracy: ±0.1°C (±0.2°F) within range

• IBP (Invasive Blood Pressure):

• Pressure Range: ±500 mmHg (±67 kPa)

• Accuracy: ±1 mmHg (±0.13 kPa) within range

• Measuring Method: Strain gauge

• Power Supply:

• Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Weight:

• Approx. 1.7 kg (3.75 lbs)

• Dimensions:

• Size: 240 mm x 150 mm x 40 mm (9.4 in x 5.9 in x 1.6 in)

• Connectivity:

• Ethernet: Yes

• Wireless: Compatible with Philips IntelliVue Network

• Compatibility:

• Compatible with IntelliVue patient monitors from various Philips models

• Environmental Requirements:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 15% to 95% (non-condensing)

This updated specification for the Philips Intellivue Module M3001A

• A01C06 provides essential parameters for users in clinical settings.
