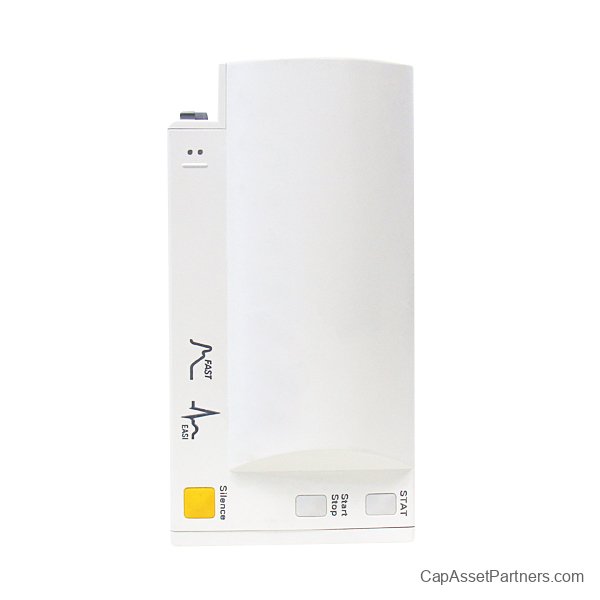

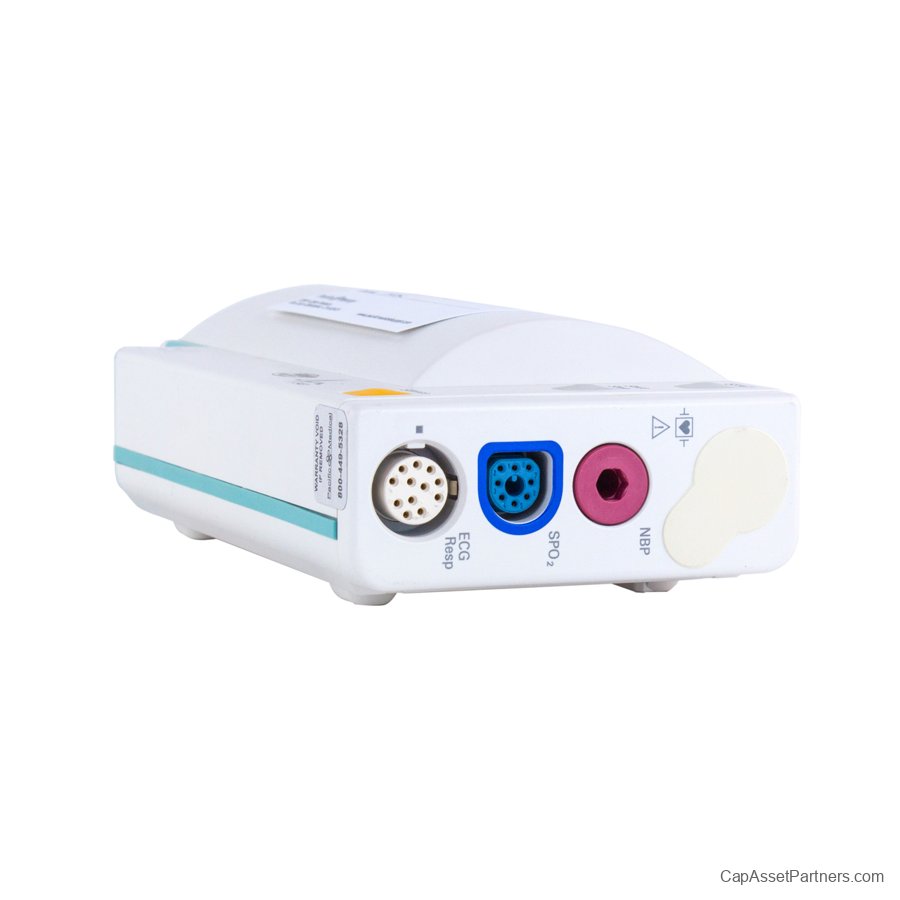

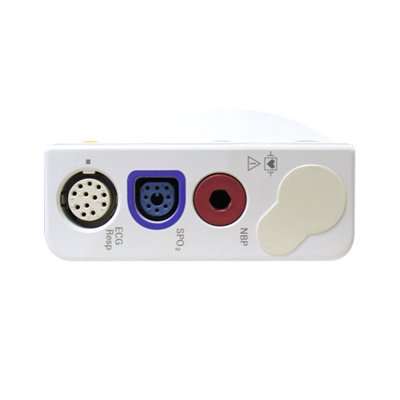

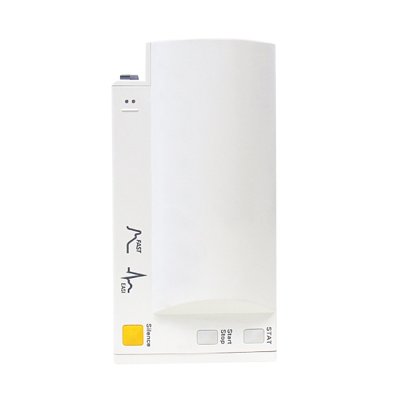

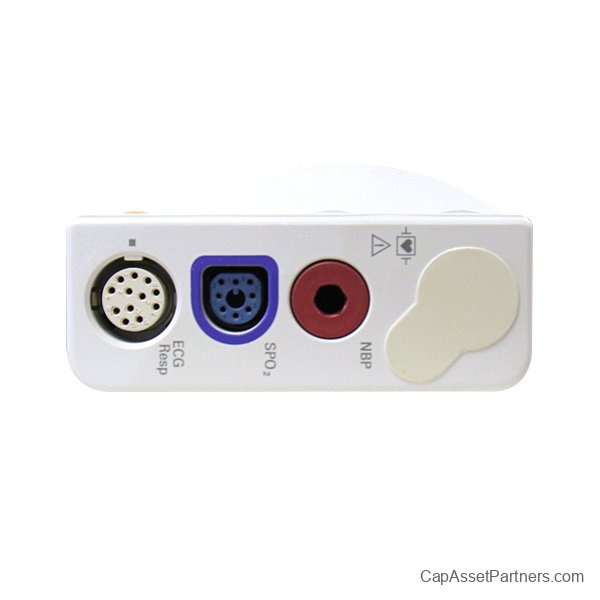

Philips Intellivue Module M3001A - A02 - Nellcor SPO2, NIBP, ECG

Introducing the Philips Intellivue Module M3001A

• A02, a top-of-the-line medical monitoring solution designed to enhance patient care. This advanced MMS module features the renowned Nellcor Oximax SpO2 technology for accurate and reliable oxygen saturation readings. Additionally, it includes capabilities for Non-Invasive Blood Pressure (NIBP) and Electrocardiogram (ECG) monitoring, ensuring comprehensive patient assessments in a variety of clinical settings.

Engineered for seamless integration with Philips IntelliVue patient monitoring systems, the M3001A provides healthcare professionals with critical data at their fingertips. This module has undergone thorough testing and cleaning by certified biomedical technicians to ensure optimal performance, making it an ideal choice for healthcare facilities looking to improve patient outcomes with trusted monitoring solutions.
Whether used in hospitals, clinics, or other medical environments, the Philips Intellivue Module M3001A

• A02 promises reliability and precision, empowering caregivers to make informed decisions based on real-time patient information. Elevate your monitoring capabilities with this essential medical device and support your commitment to delivering exceptional patient care.

Philips Intellivue Module M3001A

• A02

Specifications:

• SPO2 (Nellcor)

• Range: 0% - 100%

• Accuracy: ±2% (70% - 100%), ±3% (50% - 69%), unspecified below 50%

• Resolution: 1%

• Signal Processing: Nellcor Oximax Technology

• NIBP (Non-Invasive Blood Pressure)

• Measurement Range:

• Systolic: 40 mmHg - 250 mmHg (5.3 kPa - 33.3 kPa)

• Diastolic: 10 mmHg - 200 mmHg (1.3 kPa - 26.7 kPa)

• Mean: 20 mmHg - 230 mmHg (2.7 kPa - 30.7 kPa)

• Accuracy: ±5 mmHg (0.67 kPa)

• Cuff Sizes Available: Adult, Pediatric, Neonatal

• ECG (Electrocardiogram)

• Lead Configuration: 3, 5, or 12 leads

• Frequency Response: 0.05 Hz - 150 Hz

• Sample Rate: 250 Hz

• Gain settings: 1, 2, 5, 10, 20 mm/mV

• Power Supply

• Voltage Input: 100-240 V AC

• Frequency: 50/60 Hz

• Power Consumption: 90 VA

• Weight

• Module Weight: 0.7 kg (1.54 lbs)

• Dimensions

• Size: 200 mm x 100 mm x 50 mm (7.87 in x 3.94 in x 1.97 in)

• Communication

• Interfaces: Digital (RS-232 / RS-485)

• Compatibility: Philips Intellivue Patient Monitors

• Environmental Conditions

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 15% to 95% (non-condensing)

• Certifications

• CE Marked

• FDA Cleared
