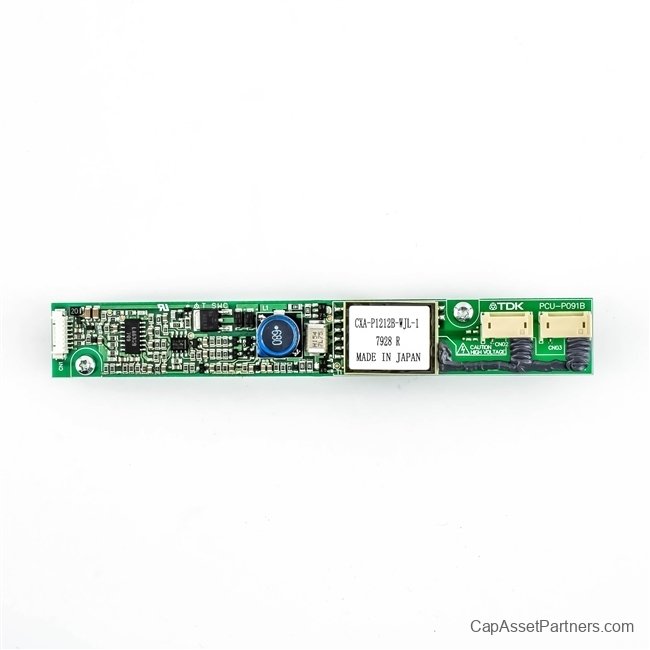

Philips IntelliVue MP20 MP30 MP40 MP50 LCD Display Screen Backlight Inverter Circuit Board

Enhance the performance of your Philips IntelliVue patient monitors with the Philips IntelliVue MP20, MP30, MP40, and MP50 LCD Display Screen Backlight Inverter Circuit Board. This high-quality circuit board has been tested and cleaned by experienced biomedical technicians to meet manufacturer specifications, ensuring reliable operation in your medical environment.
Designed for compatibility with the following models:

• Philips IntelliVue MP20 M8001A Patient Monitor

• Philips IntelliVue MP30 M8002A Patient Monitor

• Philips IntelliVue MP40 M8003A Patient Monitor (serial numbers DE714XXXX and above)

• Philips IntelliVue MP50 M8004A Patient Monitor (serial numbers DE714XXXX and above)

This inverter board is a crucial component for optimal display functionality, allowing healthcare professionals to maintain a clear and accurate visual interface. It is also associated with OEM part numbers M8001-66051 and 451261003341, ensuring you are getting a product that meets industry standards.
Revitalize your equipment's display capabilities and ensure seamless patient monitoring with the Philips IntelliVue LCD Display Screen Backlight Inverter Circuit Board.

Philips IntelliVue MP20/MP30/MP40/MP50 LCD Display Screen Backlight Inverter Circuit Board Specifications:

• Type: Backlight Inverter Circuit Board

• Model Compatibility: MP20, MP30, MP40, MP50

• Input Voltage: 12V DC (±10%)

• Output Voltage: 600V AC (typical)

• Power Consumption: 15W (max)

• Frequency: 40 kHz (typical)

• Connector Type: 6-pin (specific connector)

• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)

• Dimensions:

• Length: 180 mm (7.09 in)

• Width: 100 mm (3.94 in)

• Height: 30 mm (1.18 in)

• Weight: 250 g (8.82 oz)

• Backlight Type: CCFL (Cold Cathode Fluorescent Lamp)

• Safety Standards: UL, CE, RoHS compliant

Additional Information:

• Manufacturing Process: Surface Mount Technology (SMT)

• Circuit Protection: Fuse and thermal shutdown circuit integrated

• Key Features: High efficiency, compact design, and reliable performance in medical environments.
