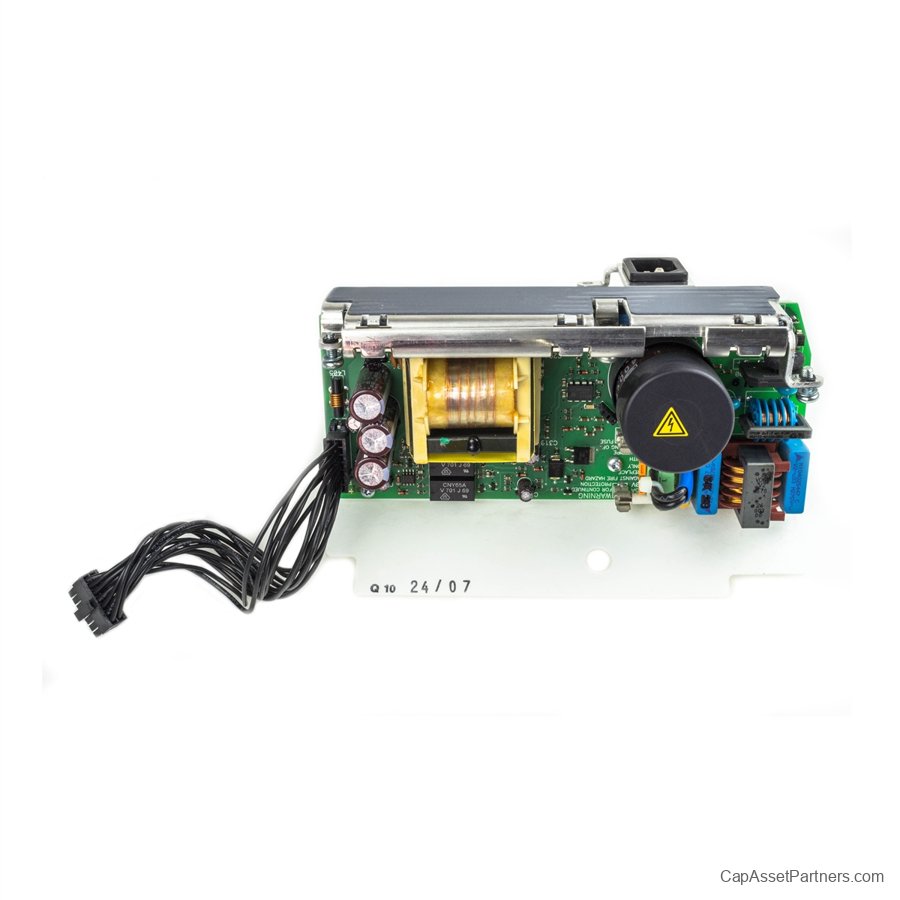

Philips IntelliVue MP20 MP30 Patient Monitor Power Supply Circuit Board Assembly

Enhance the reliability of your Philips IntelliVue MP20 or MP30 patient monitoring system with our expertly refurbished power supply circuit board assembly. This essential component has been meticulously tested and cleaned to ensure it meets all manufacturer specifications for peak performance. Designed for seamless compatibility with the Philips IntelliVue MP20 (M8001A) and MP30 (M8002A) patient monitors, this power supply assembly ensures uninterrupted operation and optimal patient care.
Compatible Units:

• Philips IntelliVue MP20 M8001A Patient Monitor

• Philips IntelliVue MP30 M8002A Patient Monitor

OEM Part Numbers:

• M8001-68002

• 451261001741

Choose our Philips IntelliVue MP20/MP30 power supply circuit board assembly to maintain the highest standards of medical monitoring. Trust in quality and precision for your healthcare needs.

Philips IntelliVue MP20/MP30 Patient Monitor Power Supply Circuit Board Assembly Specifications

• Model Numbers: MP20, MP30

• Input Voltage:

• AC: 100-240 V (Voltage Range)

• DC: 12 V (Output)

• Input Frequency:

• 50/60 Hz

• Power Consumption:

• Operating: 60 W max

• Dimensions:

• Length: 12.5 in (318 mm)

• Width: 8.5 in (216 mm)

• Height: 2.5 in (64 mm)

• Weight:

• Approx. 4.5 lbs (2.0 kg)

• Connectors:

• AC input connector

• DC output connector

• Operating Temperature Range:

• 0°C to 40°C (32°F to 104°F)

• Storage Temperature Range:

• -20°C to 60°C (-4°F to 140°F)

• Relative Humidity:

• Operating: 15% to 95% (non-condensing)

• Storage: 10% to 95% (non-condensing)

• Protection Class:

• Class I

• Compliance:

• IEC 60601-1

• UL 60601-1

(Note: Specifications may vary slightly based on manufacturing revisions.)
