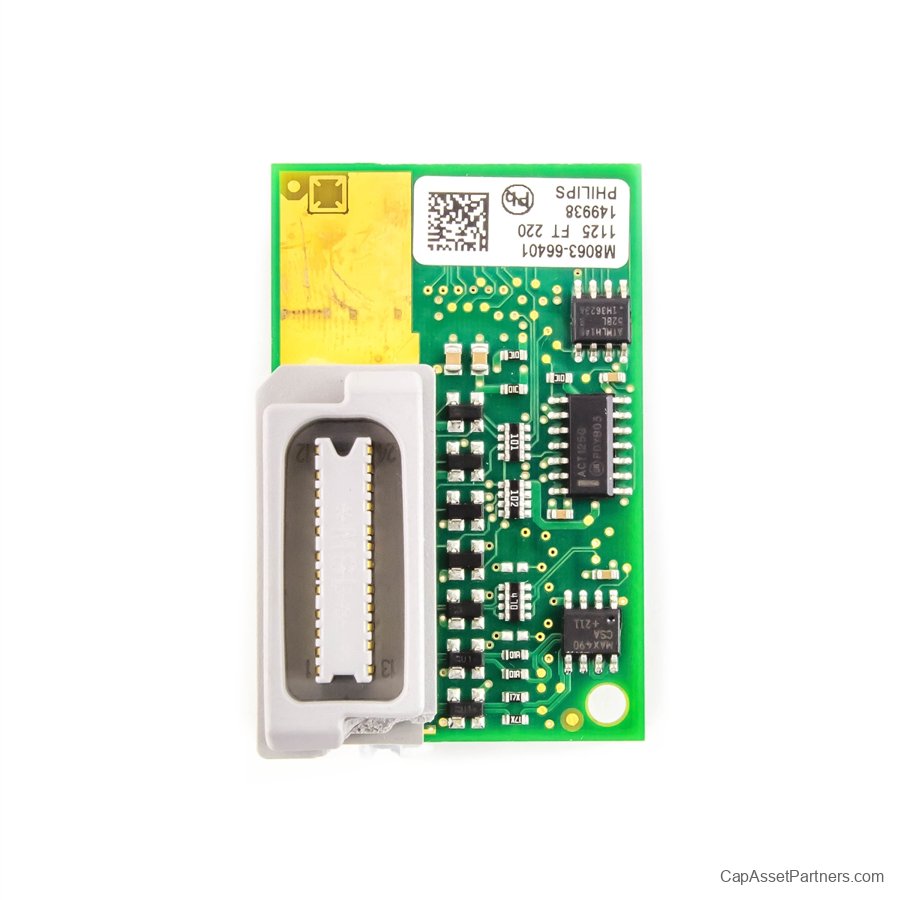

Philips IntelliVue MP40 MP50 MSL Connector Assembly Circuit Board

Philips IntelliVue MP40 MP50 MSL Connector Assembly Circuit Board
Enhance the functionality of your Philips IntelliVue patient monitoring systems with the Philips IntelliVue MP40 MP50 MSL Connector Assembly Circuit Board. This essential component has been meticulously tested and cleaned to meet the highest manufacturer specifications, ensuring reliability and optimal performance for your medical equipment.
Compatible Units:

• Philips IntelliVue MP40 (M8003A) Patient Monitor

• Philips IntelliVue MP50 (M8004A) Patient Monitor

OEM Part Numbers:
This circuit board is integral to assemblies M8063-69501, M8063-67001, & 453563499191, providing seamless compatibility and functionality for your Philips monitoring solutions. Invest in quality and performance with this key component, designed for easy installation and exceptional durability in a clinical setting.

Philips IntelliVue MP40/MP50 MSL Connector Assembly Circuit Board Specifications:

• Model: IntelliVue MP40 / MP50

• Type: MSL (Modular Subsystem Layer) Connector Assembly Circuit Board

Electrical Specifications:

• Operating Voltage: 12 V DC (±1 V)

• Current Draw: 500 mA (max)

• Power Consumption: 6 W (max)

Mechanical Specifications:

• Dimensions:

• Length: 9.25 in (235 mm)

• Width: 6.30 in (160 mm)

• Height: 1.04 in (26.5 mm)

• Weight: 1.5 lb (0.68 kg)

Connector Specifications:

• Number of Connectors: Multiple connectors for patient monitoring

• Connector Type:

• MSL connector types vary

• Standard connectors for ECG, SpO2, NIBP, etc.

Environmental Specifications:

• Operating Temperature Range: 0 to 40°C (32 to 104°F)

• Storage Temperature Range: -20 to 60°C (-4 to 140°F)

• Humidity: 15% to 95% non-condensing

Compatibility:

• Compatible with Philips IntelliVue patient monitoring systems.

Certification:

• Compliant with relevant medical device safety and performance standards.

Please verify with the manufacturer for the most accurate and updated specifications.
