Philips IntelliVue MP40 MP50 Power Supply Assembly nRoHS

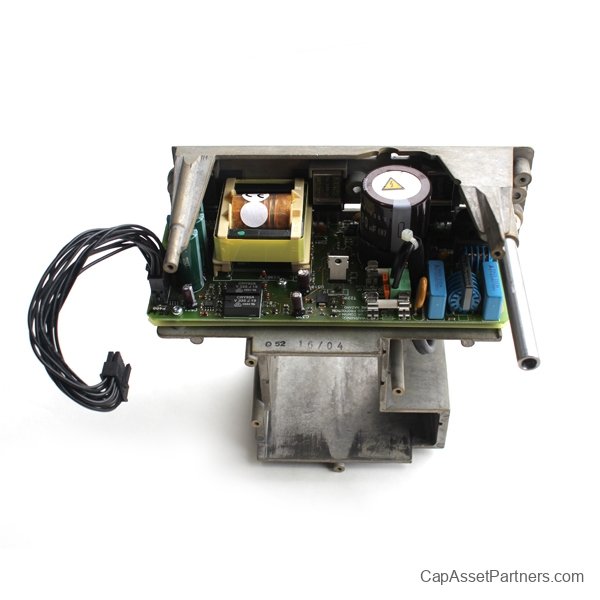

Philips IntelliVue MP40 MP50 Power Supply Assembly

• nRoHS Certified

Enhance the reliability of your Philips IntelliVue patient monitoring systems with the Philips IntelliVue MP40 / MP50 Power Supply Assembly. This essential component is specifically designed to power the Philips IntelliVue MP40 (M8003A) and MP50 (M8004A) patient monitors, ensuring optimal performance in critical care settings.
Each power supply assembly has undergone rigorous testing and cleaning to meet manufacturer specifications, guaranteeing a high standard of quality and performance. This assembly is compatible with the following OEM part numbers: M8003-68002, M8003-60002, 453563499241, and 453564438381, ensuring a perfect fit and seamless integration into your existing monitoring setup.
With its nRoHS certification, this power supply assembly adheres to strict environmental regulations, making it a responsible choice for medical facilities focused on sustainability without compromising on quality. Upgrade your monitoring equipment today and experience dependable power solutions designed for the healthcare industry.

Philips IntelliVue MP40/MP50 Power Supply Assembly Specifications (nRoHS)

• Model Numbers: MP40, MP50

• Power Supply Input Voltage:

• 100-240 VAC, 50/60 Hz

• 1.5 A (maximum)

• Output Voltage: 12 VDC (± 5%)

• Efficiency: ? 85% (at full load)

• Power Consumption:

• Max: 36 W

• Weight:

• Approx. 1.5 lbs (0.68 kg)

• Dimensions:

• 6.3 in x 2.5 in x 1.5 in (160 mm x 63 mm x 38 mm)

• Operating Temperature Range:

• 0°C to 40°C (32°F to 104°F)

• Storage Temperature Range:

• -20°C to 60°C (-4°F to 140°F)

• Relative Humidity:

• Operating: 10% to 95% non-condensing

• Storage: 5% to 95% non-condensing

• Safety Standards:

• IEC 60601-1

• Pollution Degree: 2

• EMC Compliance:

• IEC 60601-1-2

• Input Connector Type: Standard AC inlet

• Output Connector: Compatible with MP40/MP50 devices

• Warranty: Typically 1 year (confirm with supplier)

Note: Always refer to the manufacturer's documentation for the latest specifications and compliance details.
