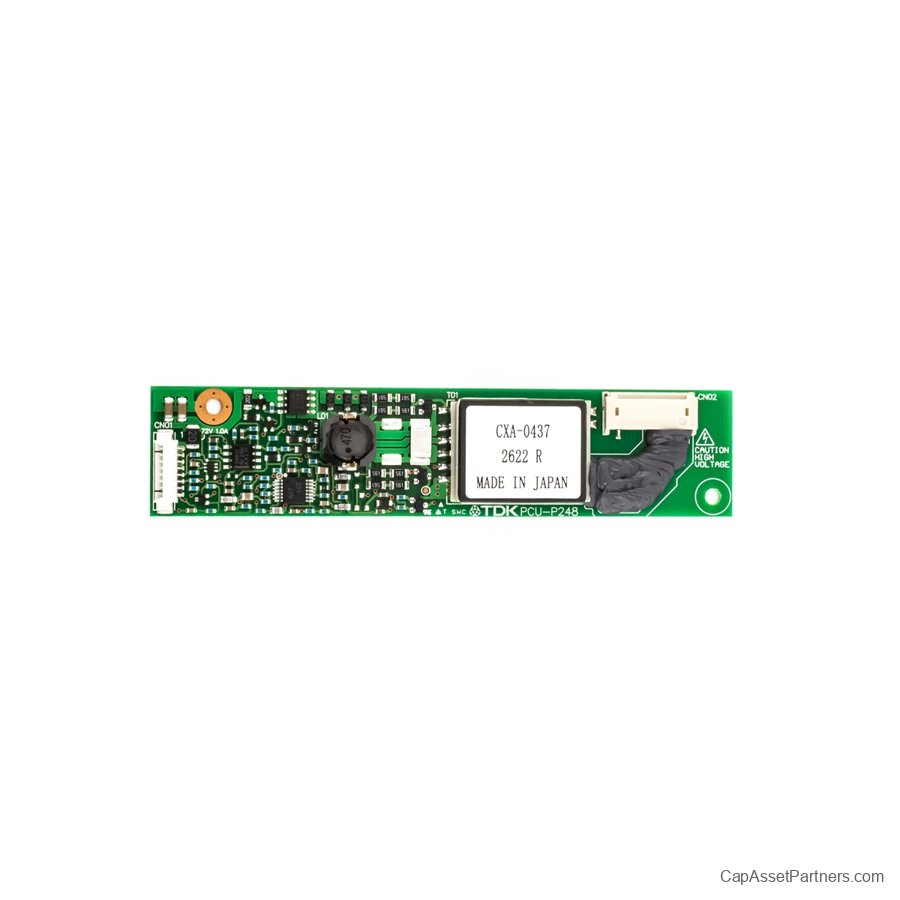

Philips IntelliVue MP5 Patient Monitor TFT LCD Screen Backlight Inverter Circuit Board

Enhance your Philips IntelliVue MP5 Patient Monitor with our high-quality backlight inverter circuit board, specifically designed for the TFT LCD screen. This essential component has undergone thorough testing and cleaning by our skilled biomedical technician team to ensure it meets manufacturer specifications, providing reliable performance for optimal patient monitoring.
Key Features:

• Compatibility: This inverter is compatible with the Philips IntelliVue MP5 M8105A patient monitors, ensuring seamless integration and functionality.

• OEM Part Numbers: The circuit board corresponds with OEM part numbers 0950-9086 and 451261019031, guaranteeing a perfect fit and performance.

Upgrade your medical equipment with this vital component and ensure your monitoring system operates at its best. Ideal for healthcare professionals seeking dependable replacements for their Philips patient monitoring devices.

Philips IntelliVue MP5 Patient Monitor TFT LCD Screen Backlight Inverter Circuit Board Specifications:

• Model: Philips IntelliVue MP5

• Screen Type: TFT LCD

• Backlight Type: Inverter-driven LED

• Input Voltage: 12V DC (± 10%)

• Output Voltage: 300V DC (for backlight)

• Current Consumption:

• Backlight: up to 120 mA

• Total: 800 mA max

• Frequency: 50/60 Hz

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity: 15% to 95% RH (non-condensing)

• Dimensions:

• Length: 6.7 in (170 mm)

• Width: 3.9 in (100 mm)

• Height: 1.2 in (30 mm)

• Weight: Approximately 0.77 lbs (350 g)

• Compliance: IEC 60601-1, UL 60601-1

This information provides a succinct overview of the specifications relevant to the Philips IntelliVue MP5 Patient Monitor's backlight inverter circuit board.
