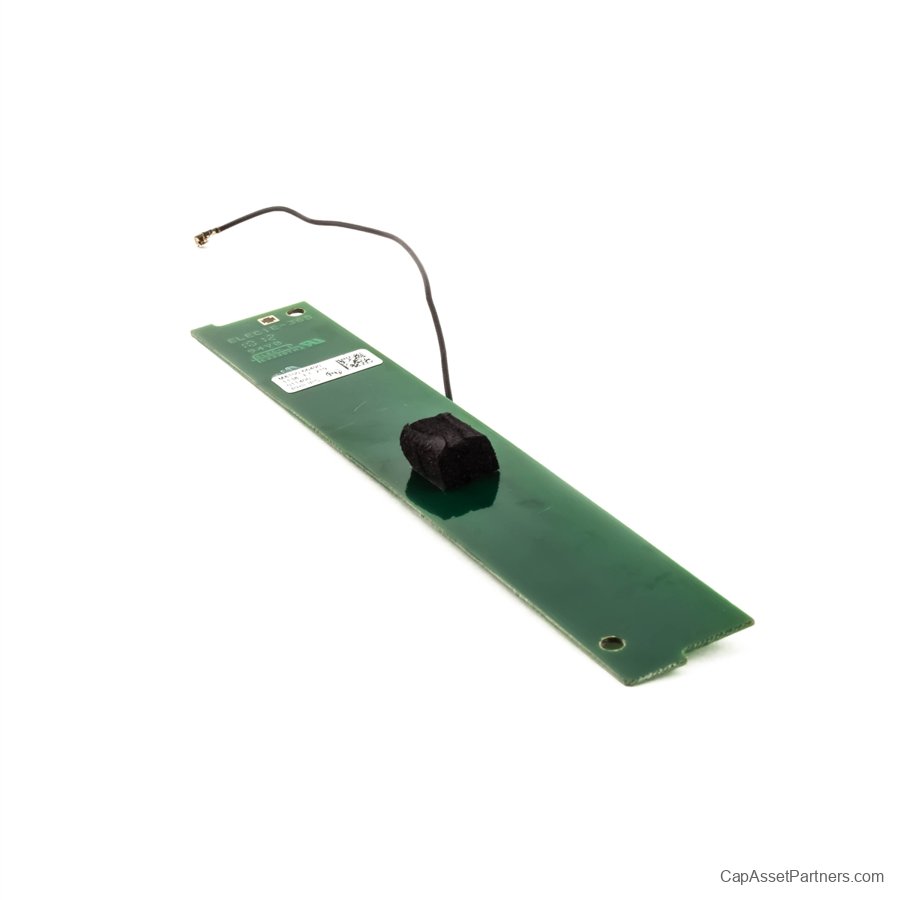

Philips IntelliVue MP5 Patient Monitor Triband Antenna Circuit Board

Philips IntelliVue MP5 Patient Monitor Triband Antenna Circuit Board
Enhance the performance of your Philips IntelliVue MP5 Patient Monitor with the high-quality Triband Antenna Circuit Board. Designed specifically for the Philips IntelliVue MP5 M8105A model, this antenna ensures reliable connectivity and accurate patient monitoring in critical healthcare environments.
Our Triband Antenna Circuit Board has undergone rigorous testing and cleaning processes to meet manufacturer specifications, guaranteeing a seamless installation.
Compatibility:

• Philips IntelliVue MP5 M8105A Patient Monitors

OEM Part Numbers:

• M8100-66490

• 451261019291

Optimize your patient care with this essential component, ensuring consistent and dependable monitoring capabilities.

Philips IntelliVue MP5 Patient Monitor Triband Antenna Circuit Board Specifications:

• Frequency Bands:

• Band 1: 2.4 GHz (2400 - 2483.5 MHz)

• Band 2: 5.0 GHz (5150 - 5850 MHz)

• Band 3: 5.9 GHz (5725 - 5850 MHz)

• Impedance:

• 50 Ohms

• Connector Type:

• RF Coaxial Connector (typical)

• Temperature Range:

• Operating: 0 to 50 °C (32 to 122 °F)

• Storage: -20 to 70 °C (-4 to 158 °F)

• Dimensions:

• Length: approximately 6.0 cm (2.36 in)

• Width: approximately 4.0 cm (1.57 in)

• Height: approximately 1.0 cm (0.39 in)

• Weight:

• Approximately 30 grams (1.06 oz)

• Power Supply:

• Voltage: 3.3 V DC (typical)

• Antenna Type:

• Triband Antenna

• Mounting:

• Surface-mounted design

• Material Composition:

• FR-4 PCB material (flame retardant epoxy resin)

• Regulatory Compliance:

• CE Marking

• FCC Compliance

• Environmental Rating:

• IPX4 (Splash resistant)

• Signal Range:

• Indoor: up to 30 m (98 ft)

• Outdoor: up to 100 m (328 ft)

• Data Communication:

• Wireless Protocol: IEEE 802.11 b/g/n

This format presents the specifications directly without additional context, as requested. Please let me know if you need further details or additional specifications!
