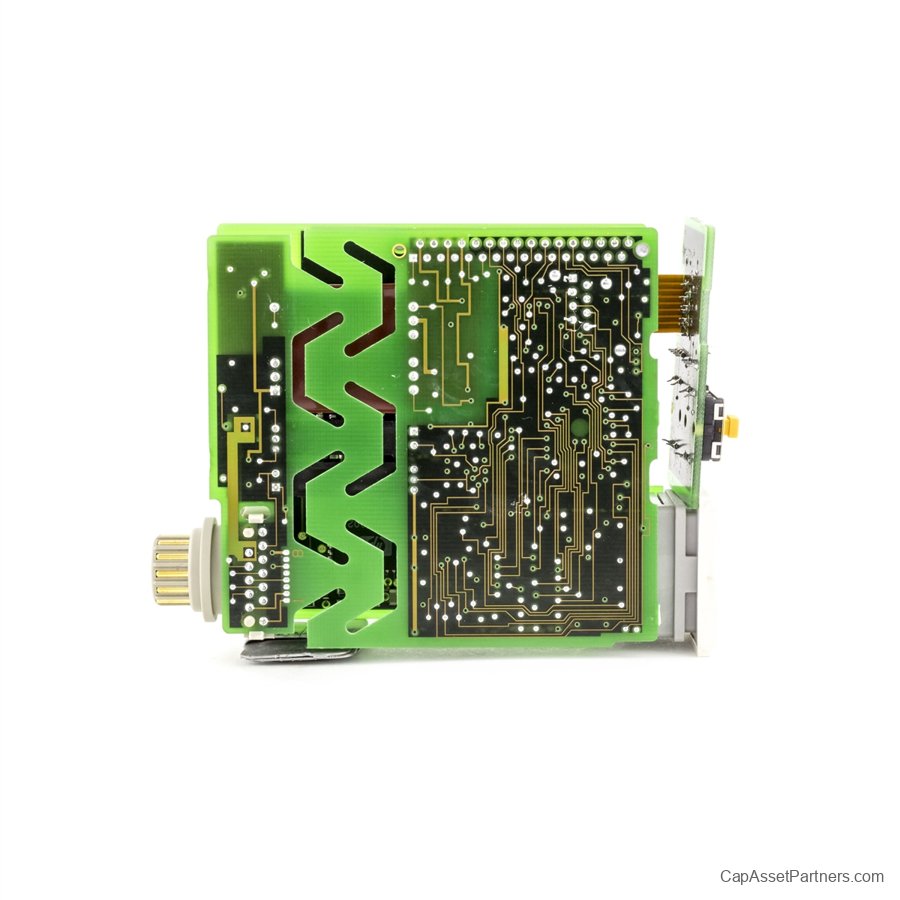

Philips M1002B ECG Module Circuit Board Assembly

Introducing the Philips M1002B ECG Module Circuit Board Assembly, a vital component designed for seamless integration into your Philips ECG/RESP modules. This high-quality circuit board assembly has undergone rigorous testing and cleaning by our expert biomedical technicians, ensuring it meets the original manufacturer specifications for optimal performance.
Compatible with the Philips M1002B ECG/RESP modules, this assembly is essential for those seeking reliable and efficient medical equipment solutions. The OEM part number for this product is M1002-66511, making it easy to ensure compatibility with your existing systems.
Upgrade your medical facility's capabilities with the Philips M1002B ECG Module Circuit Board Assembly, a dependable choice for healthcare professionals committed to delivering exceptional patient care. Experience the difference in quality and performance with this expertly restored component, designed to keep your equipment running smoothly.

Philips M1002B ECG Module Circuit Board Assembly Specifications

• Model: M1002B

• Input Voltage: 12 V DC

• Power Consumption: 1.2 W

• Dimensions: 6.0 in x 4.0 in x 1.0 in (152 mm x 102 mm x 25 mm)

• Weight: 0.5 lb (0.23 kg)

• ECG Channel Configuration: 3 lead, 5 lead, or 12 lead

• Frequency Response: 0.05 - 150 Hz

• Sampling Rate: 250 samples/sec

• Common Mode Rejection Ratio (CMRR): ? 100 dB

• Input Impedance: ? 5 M?

• Noise Level: < 1 µV RMS

• Display: Compatible with Philips patient monitors

• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)

• Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)

• Communication Interface: Serial communication (RS-232 or similar)

• Compliance: CE, FDA, ISO 13485

This assembly is primarily used in patient monitoring systems for displaying and analyzing electrocardiograph data.
