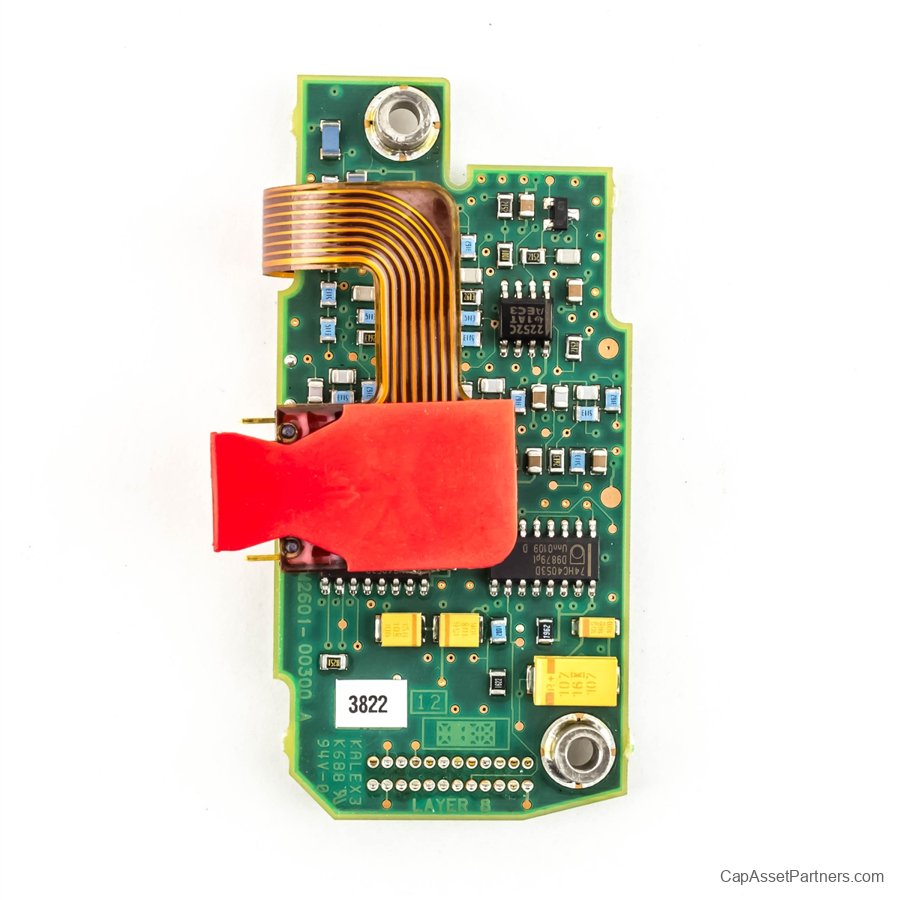

Philips M2601A Series C Telemetry Transmitter S02 S03 ECG Circuit Board PCB

Philips M2601A Series C Telemetry Transmitter S02 S03 ECG Circuit Board PCB
Discover the Philips M2601A Series C Telemetry Transmitter ECG Circuit Board (S02/S03)—an essential component designed for reliable performance in patient monitoring. This high-quality PCB has been meticulously tested and cleaned to meet stringent manufacturer specifications, ensuring optimal functionality in your medical setting.
Key Features:

• Compatibility: Specifically designed for the Philips M2601A Series C Standard Telemetry Transmitter, this circuit board is compatible with both S02 and S03 models, with or without EASI ECG.

• OEM Part Number: M2601-60300, guaranteeing you’re purchasing an authentic part tailored to your Philips equipment.

Upgrade your medical equipment with confidence and enhance the efficiency of your telemetry monitoring system with the Philips M2601A Series C ECG Circuit Board. Trust in a product that guarantees high standards for precision and reliability in patient care.

Here are the specifications for the Philips M2601A Series C Telemetry Transmitter (S02, S03) ECG Circuit Board PCB:

General Specifications:

• Model: Philips M2601A

• Type: Telemetry Transmitter

• Series: C

Dimensions:

• Length: 5.31 inches (135 mm)

• Width: 3.23 inches (82 mm)

• Height: 0.79 inches (20 mm)

• Weight: Approx. 0.88 lbs (400 g)

Electrical Specifications:

• Power Supply Voltage: 7.2V DC (battery-operated)

• Battery Type: Rechargeable lithium-ion battery

• Power Consumption: 0.5 W (typical)

• Frequency Range: 2400 - 2483.5 MHz

ECG Specifications:

• Number of Channels: 3-Lead ECG

• Lead Types: I, II, III (standard)

• Input Impedance: > 5 M?

• Common Mode Rejection Ratio (CMRR): > 110 dB at 50/60 Hz

• Signal Bandwidth: 0.5 - 40 Hz

Communication Specifications:

• Wireless Protocol: 2.4 GHz ISM band

• Transmission Range: Up to 150 feet (45 meters) in open space

• Data Transmission Rate: 1.5 kHz sampling rate

Environmental Conditions:

• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)

• Storage Temperature Range: -40°F to 158°F (-40°C to 70°C)

• Humidity Range: 15% to 95% non-condensing

Compliance & Certifications:

• Electromagnetic Compatibility: Complies with relevant standards (specific certificates may apply)

• Safety Standards: IEC 60601-1

Please note that specifications may vary between different production batches, and it's advisable to consult the official product documentation or manufacturer for the most accurate information.
