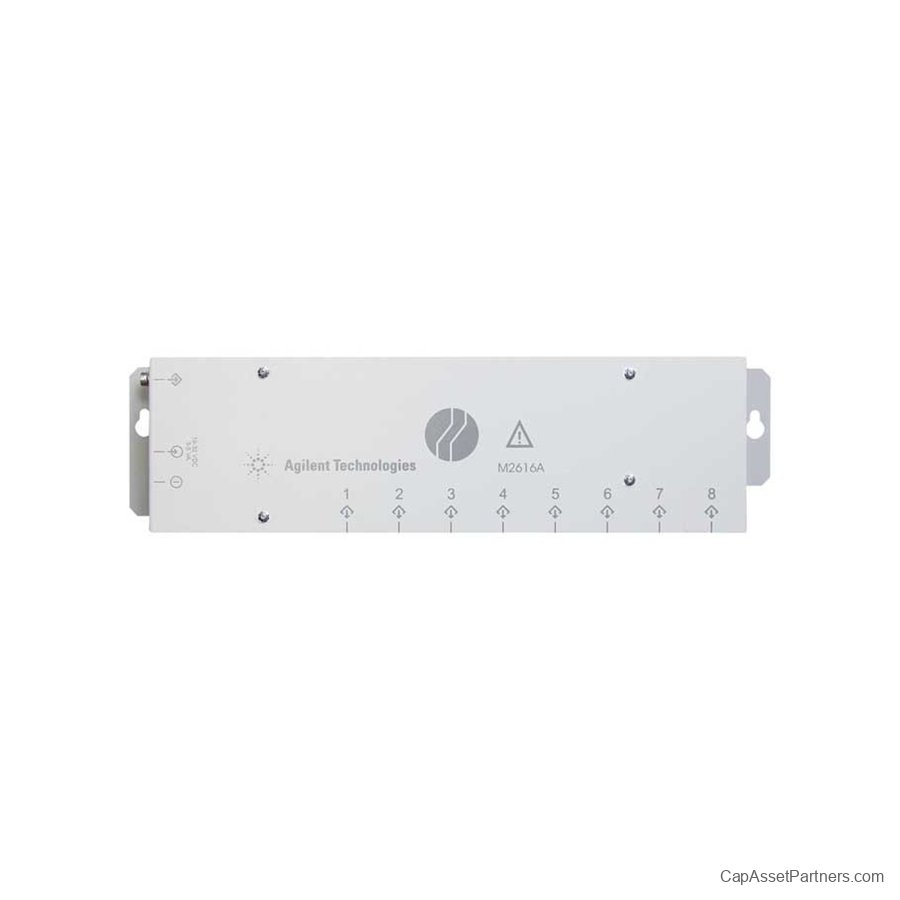

Philips M2616A Down Converter (142MHZ or 148 MHZ)

Introducing the Philips M2616A Down Converter, a precision device designed for medical imaging applications. Operating at frequencies of either 142MHz or 148MHz, this sophisticated down converter plays a critical role in enhancing the quality of diagnostic imaging. Engineered to provide reliable and consistent performance, the M2616A ensures accurate signal processing, making it an essential component for healthcare facilities aiming to optimize their imaging systems. Elevate your medical practice with the trusted technology of Philips, and experience the difference in your imaging capabilities. For inquiries and additional details, explore more about the Philips M2616A Down Converter on our website.

Philips M2616A Down Converter Specifications:

• Frequency Input Range:

• 142 MHz - 148 MHz

• Frequency Output:

• 70 MHz

• IF (Intermediate Frequency):

• 70 MHz

• Gain:

• Minimum: 10 dB

• Maximum: 25 dB

• Input Impedance:

• 50 Ohms

• Output Impedance:

• 75 Ohms

• Noise Figure:

• Typical: 5 dB

• Maximum: 7 dB

• Power Supply:

• Voltage: 12 V DC

• Current Consumption: 100 mA

• Temperature Range:

• Operating: -10 °C to +50 °C (14 °F to 122 °F)

• Dimensions:

• Height: 1.75 inches (44.5 mm)

• Width: 19 inches (483 mm)

• Depth: 11 inches (280 mm)

• Weight:

• Approx. 3.5 lbs (1.6 kg)

• Connector Type:

• Input: BNC

• Output: F-Type

This information provides a comprehensive overview of the Philips M2616A Down Converter specifications.
