Philips Pagewriter Touch

Philips PageWriter Touch: Advanced ECG Solution for Hospitals

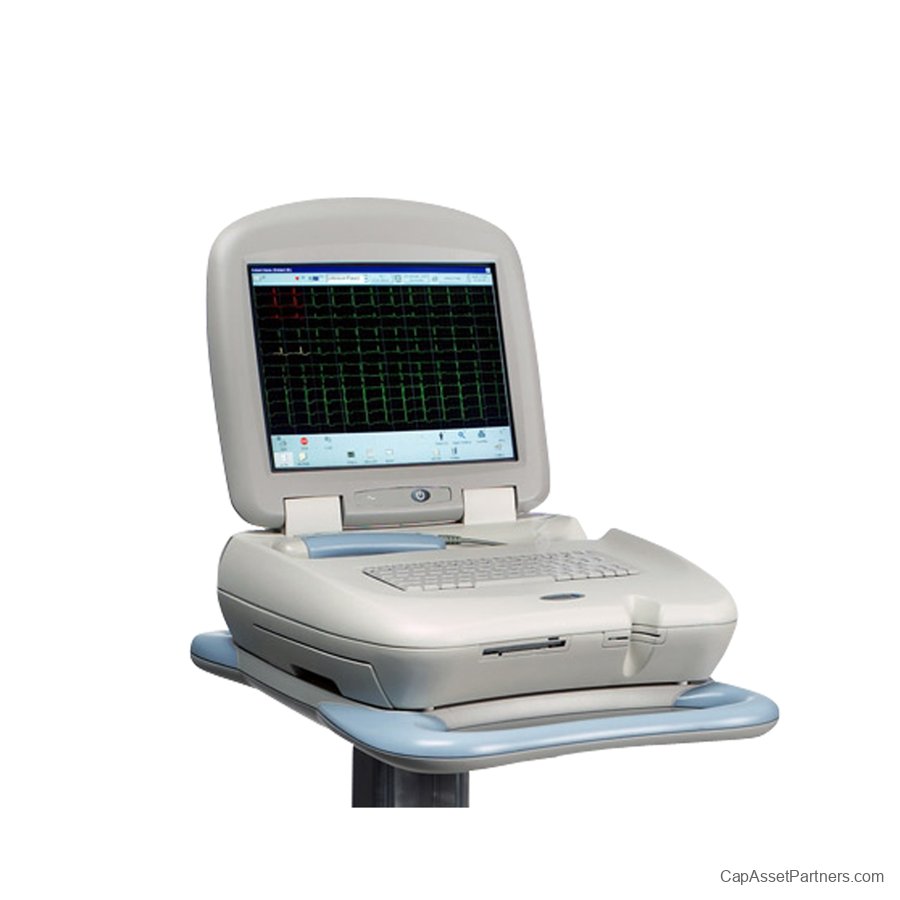

The Philips PageWriter Touch is designed for high-volume hospital environments where quality and efficiency are paramount. Featuring a high-resolution 15-inch touch screen, this cardiac monitoring device displays 10 seconds of comprehensive 12-lead ECG data, color-coded for ease of interpretation and signal quality.
Optimize your workflow with the ability to preview the full report—including waveforms and interpretations—before printing. This feature not only saves time but also conserves resources. With wireless communication capabilities, the PageWriter Touch streamlines the process of downloading orders and transmitting data to your ECG management system swiftly.

Key Features

ECG Acquisition

• Obtain up to 12 leads for both adult and pediatric patients.

• Real-time 12-lead display with ECG snapshot functionality for capturing screen data at the touch of a button.

• AUTO 12-lead acquisition for efficient data collection.

• Continuous 5-minute waveform data disclosure for thorough review and printing.

ECG Quality Monitoring

• Extensive indicators for ECG quality, including AC noise filtering and baseline wander correction.

• Color-coded waveforms and loose electrode alerts provide immediate feedback on ECG quality.

Memory and Data Transfer

• The PageWriter Touch offers storage memory for easy retrieval of ECGs.

• Transfer options include floppy disk, modem, or LAN connection to effectively manage patient data.

• Automatic indexing of recorded ECGs facilitates quick access and reporting for administrative purposes.

Interpretation Capabilities

• Equipped with the Philips 12-Lead Algorithm for in-depth interpretive analysis tailored for both adult and pediatric patients.

• Clinically validated interpretation program provides configurable severity statements that enhance reporting accuracy.

Print Preview Functionality

• Full-screen preview of ECG reports allows for quality checks before printing, ensuring accuracy.

• Multiple report formats can be selected, with previews available to confirm layout and content.

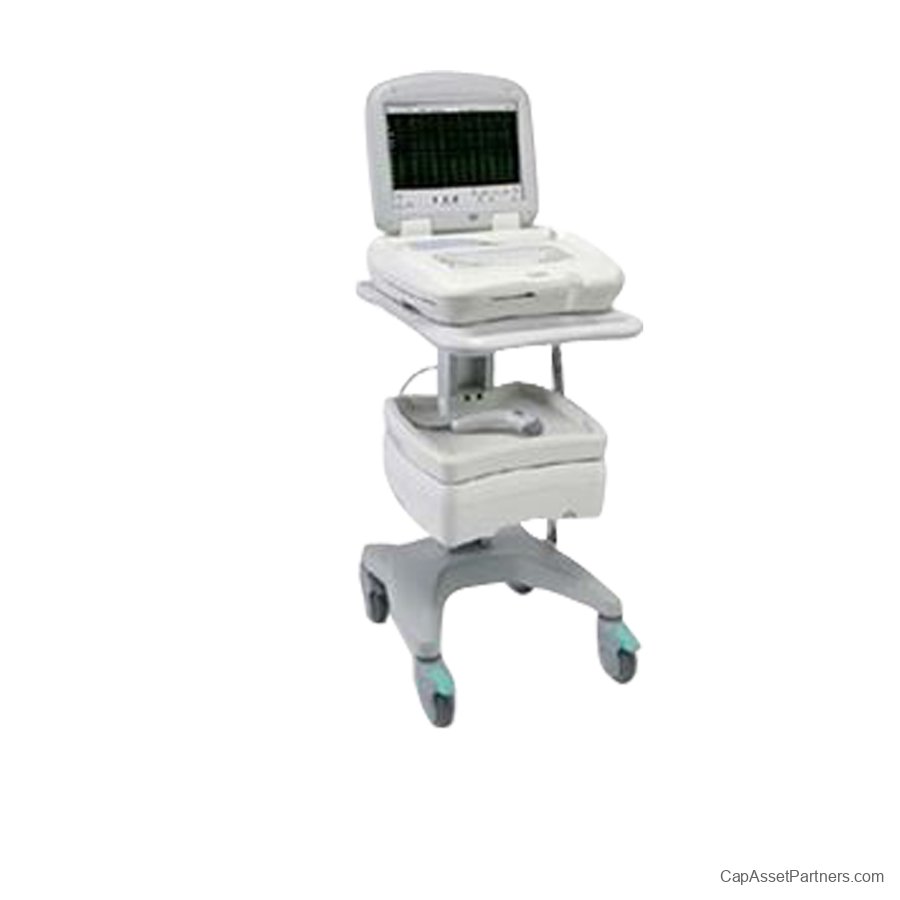

Convenient Mobile Cart

• The integrated mobile cart enhances mobility, enabling ease of transport from bedside to bedside while ensuring durability suited to hospital conditions.

• Features ample storage space, including trays and optional locks, to safeguard medical supplies and equipment.

Battery Operation

• The rechargeable battery facilitates approximately 50 ECG recordings or 40 minutes of rhythm monitoring on a single charge, making it ideal for bustling hospital environments.

With its comprehensive features and user-friendly design, the Philips PageWriter Touch supports healthcare professionals in delivering accurate and timely cardiac care.

Philips Pagewriter Touch Specifications (Old)

ECG Acquisition

• R/T (real-time) ECG (12 leads)

• AUTO (12 leads)

• RHYTHM (up to 12 leads)

• DISCLOSE (1 to 3 leads)

Keyboard

• Full alphanumeric capability

Touch Screen Display

• Resolution: 1024 × 768 pixels

• Size: 30.4 cm × 22.8 cm (15-inch diagonal) color liquid crystal touch screen display with backlight

Patient Module

• Action button for ECG snapshots from the bedside

Signal Processing/Acquisition Sampling Rate

• 1,000 samples per second per electrode/lead

• A/D conversion: 12-bit provides 5 µV resolution

Auto Frequency Response

• 0.05-150 Hz, 0.15-150 Hz, 0.5-150 Hz

• 0.05-100 Hz, 0.15-100 Hz, 0.5-100 Hz

• 0.05-40 Hz, 0.15-40 Hz, 0.5-40 Hz

Rhythm Frequency Response

• 0.05-150 Hz, 0.15-150 Hz, 0.05-100 Hz

• 0.15-100 Hz, 0.05-40 Hz, 0.15-40 Hz

Filters

• AC noise

• Baseline wander

• Artifact

Printer/Printer Resolution

• High-resolution, digital-array printer using thermal-sensitive paper

• Resolution: 200 dpi (voltage axis) by 500 dpi (time axis)

Report Formats

• 3x4 (1R, 3R)

• 6x2

• Panoramic 12 (Cabrera)

• 12x1

• Rhythm (up to 12 selected leads)

• Extended Measurements

• One Minute Disclose (1 lead)

• Full Disclosure (five minutes, 1 to 3 selected leads)

Battery Operation Capacity

• Typically 50 ECGs and copies on a single charge or 40 minutes of continuous rhythm recording

• Recharge time: Seven hours in standby mode to >90% capacity (typical)

Network Connection

• 10/100 Base-T IEEE 802.3 Ethernet via RJ45 connector (standard)

• Optional software for Proxim Range LAN2 7410 CE PC card for wireless LAN connection (Wireless PC LAN card not included)

FAX Capability (Optional)

• Group 3, Class 1 or 2 fax modem (optional for USA & Canada)

• Supported protocols: V.90, K56flex, enhanced V.34, V.32bis, V.32, V.22bis and below

Barcode Reader (Optional)

• Reads Code 39 (standard and full ASCII)

• Reads cards adhering to ISO 7810, 7811-1, -2, -3, -4, -5, and JIS × 6301 and X6302

ECG Storage

• XML File Format

• 150 ECGs to internal flash memory

• 2 to 3 ECGs typical per 1.4 MB floppy disk

• 150 ECGs per 128 MB PCMCIA card (optional)

ECG File Formats

• XML and XML SVG

Power and Environment

• Line Power: 100-240 Vac, 50/60 Hz, 150 VA max

Environmental Operating Conditions

• Temperature: 15° to 35 °C (50° to 104°F)

• Humidity: 15% to 70% relative humidity (non-condensing)

• Altitude: Up to 4,550 m (15,000 ft.)

Cardiograph Dimensions

• Approx. 45 × 45.8 × 16 cm (17.7 × 18.0 × 6.34 in.)

Cardiograph Weight

• Approx. 13 kg (28 lb.) including accessories

Patient Interface Module

• Remote, microprocessor-controlled module
