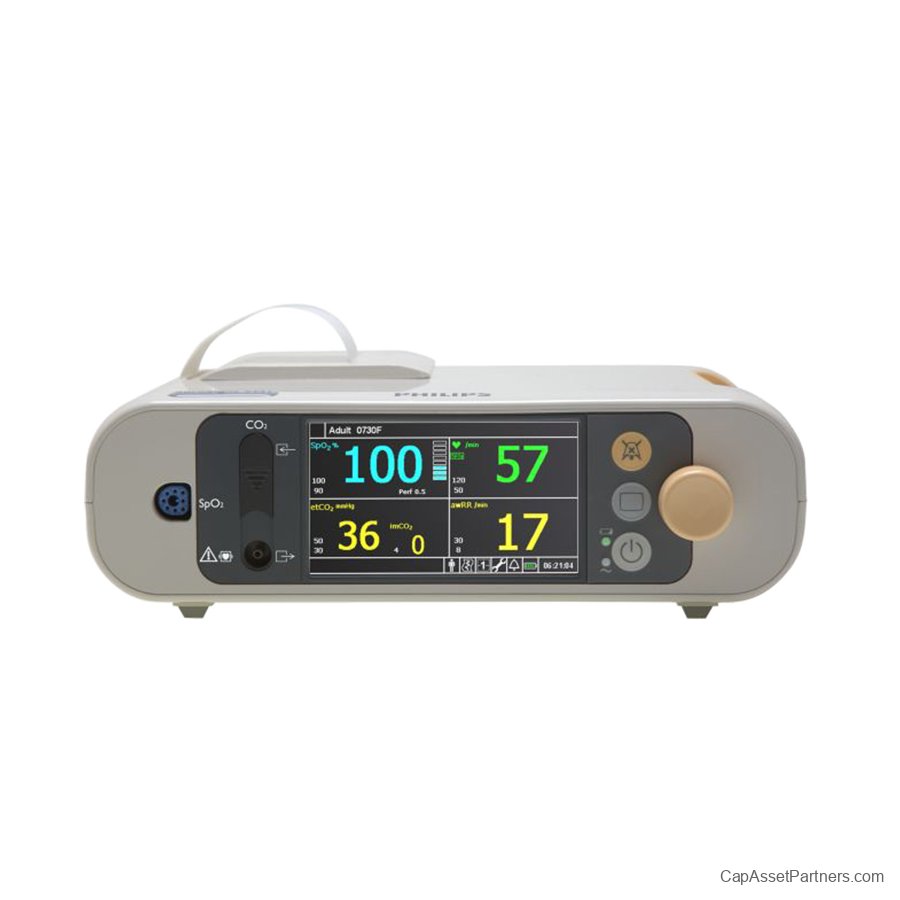

Philips SureSigns VM1 Vital Signs Monitor

Philips SureSigns VM1 Vital Signs Monitor
The Philips SureSigns VM1 is a versatile and reliable multi-parameter vital signs monitor, expertly designed for use in diverse care settings. Its robust functionality makes it suitable for adult, pediatric, and neonatal patients, ensuring accurate monitoring across all age groups.
Features:

• Versatile Monitoring: Tailored for adult, pediatric, and neonatal patients, delivering critical insights regardless of the demographic.

• Compact and Portable: Engineered with a sturdy handle, the compact design enhances portability, making it easy to relocate within various care environments.

• User-Friendly Display: Equipped with a backlit, color-coded display panel that ensures clear visibility and straightforward readings in any lighting condition.

• Advanced SpO2 Technology: The innovative Philips SpO2 technology supports sensors from leading industry brands, providing accurate SpO2 monitoring for all patient types.

• Real-Time Waveform Visualization: The display panel features real-time waveforms for SpO2 and optional CO2, allowing clinicians to monitor vital trends effectively.

• Integrated Barcode Scanner: Streamline patient ID entry with the built-in barcode scanner, enhancing workflow efficiency.

• Data Exporting Made Easy: On-board USB and LAN/serial data ports facilitate the easy export of patient data, supporting seamless integration into existing systems.

• Optional CO2 Monitoring: For enhanced patient management, the optional Microstream CO2 feature is available for both intubated and non-intubated patients.

Elevate your patient care with the Philips SureSigns VM1 Vital Signs Monitor—combining portability, advanced technology, and user-friendly design for optimal monitoring in any clinical setting.

Philips SureSigns VM1 Vital Signs Monitor Specifications

General:

• Patient Type: Adult/Pediatric/Neonatal

• Battery: Internal lithium-ion, 10.8 to 11.1 V. Operating time: 6 hours with continuous SpO2 measurements every 4 hours.

• Data Output: HL7 format via Ethernet port, USB port, optional serial interface adapter.

• Display Modes: Large numeric display, numeric and waveform display, tabular trend display, graphical trend display.

• Recorder Type (optional):

• Paper width: 2.28 in (58 mm)

• Speed: 6.25, 12.5, 25, and 50 mm/sec; user selectable.

Dimensions:

• Width: 10.2 in (26 cm)

• Height: 3.5 in (9 cm)

• Depth: 9.1 in (23 cm)

• Weight (with CO2 and recorder): 4 lbs (1.82 kg)

• Screen: WQVGA TFT-AM LCD Display | 4.3 in (10.9 cm)

Monitoring Parameters:

• SpO2:

• Measurement Range: 0 to 100%

• Accuracy: Depends on sensor.

• Heart Rate:

• Measurement Range: 30 to 300 bpm

• Accuracy: ±2% or ±1 bpm, whichever is greater. Complies with EN ISO 9919 standard.

• CO2 (optional):

• Technology: Microstream

• Measurement Range: 0 to 150 mmHg

• Accuracy:

• 0 - 38 mmHg: ±2 mmHg

• 39 - 99 mmHg: ±5% of the reading (+0.08% for every 1 mmHg above 38 mmHg)

• 100 - 150 mmHg: ±5% of the reading (+0.08% for every 1 mmHg above 38 mmHg)

• Respiration:

• Measurement Range: 0 to 150 rpm

• Accuracy:

• ±1 rpm (range: 0-70 rpm)

• ±2 rpm (range: 71-120 rpm)

• ±3 rpm (range: 121-150 rpm)
