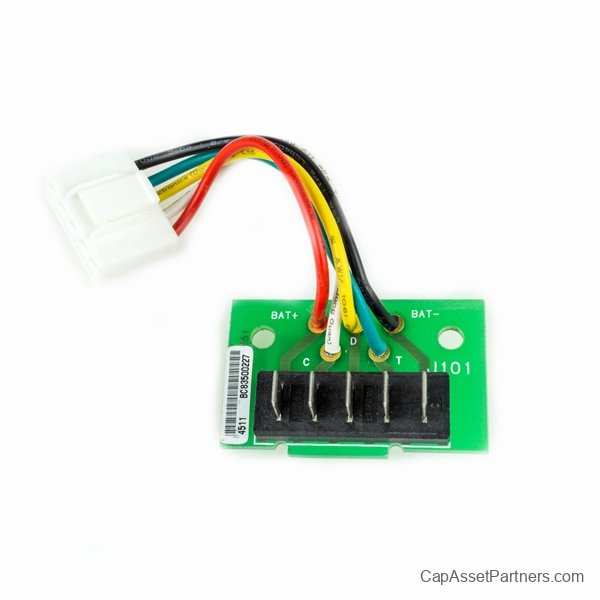

Philips SureSigns VS & VM Series Patient Monitor Battery Connector PCB Circuit Board

Enhance the performance of your Philips SureSigns patient monitors with our high-quality battery connector PCB circuit board. This essential component, specifically designed for the Philips SureSigns VS and VM series, ensures reliable connectivity and optimal functionality.
Carefully tested and cleaned by skilled biomedical technicians, this circuit board is ready for seamless installation, providing you with peace of mind that your monitoring equipment operates at its best.
Compatible with the following models:

• Philips SureSigns VM4 Patient Monitor

• Philips SureSigns VM6 Patient Monitor

• Philips SureSigns VM8 Patient Monitor

• Philips SureSigns VS3 Patient Monitor

For those looking to maintain the integrity of their medical equipment, this battery connector PCB is an ideal replacement part, efficiently supporting the ongoing performance of your Philips SureSigns monitors.
OEM Part Number:

• Keep your monitors running smoothly with this essential circuit board.

Philips SureSigns VS & VM Series Patient Monitor Battery Connector PCB Circuit Board Specifications:

• Model: PCB Circuit Board for Battery Connector

• Dimensions:

• Length: 4.5 inches (114 mm)

• Width: 2.5 inches (64 mm)

• Thickness: 0.062 inches (1.57 mm)

• Material:

• Substrate: FR-4 epoxy glass laminate

• Finish: Hasl (Hot Air Solder Leveling) or ENIG (Electroless Nickel Immersion Gold)

• Trace Width:

• Minimum: 0.020 inches (0.5 mm)

• Layer Count: 1 or 2 layers

• Voltage Rating:

• Maximum Voltage: 50 V DC (3.7 V typical for battery applications)

• Operating Temperature Range:

• -40°F to 185°F (-40°C to 85°C)

• Pin Configuration:

• Connector Type: Molex or similar

• Number of Contacts: Typically 4 – 8

• Soldering Method:

• Wave solder or hand solder (SMT components as applicable)

• Compliance Standards:

• RoHS compliant

• CE compliance (if applicable)

• Functionality:

• Designed for connection between battery and monitoring device

• Supports power management and signaling functions

• Typical Applications:

• Philips SureSigns VS & VM Series Patient Monitors
