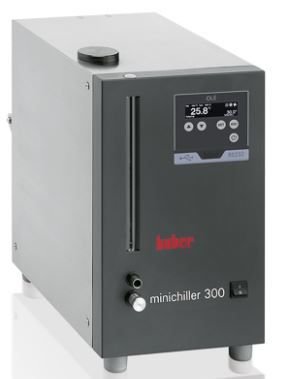

Pilot ONE Minichiller OLE Systems
The Pilot ONE Minichiller OLE Systems present an innovative and efficient cooling solution for laboratories, research institutes, and industrial applications. Designed to optimize operational efficiency, this Minichiller minimizes water consumption by up to 48,000 liters weekly while ensuring a rapid return on investment due to its low procurement costs.
Key Features:
- Compact design with a footprint of just 225 x 360 mm, making it ideal for any lab bench space.
- Perfect for cooling reactor blocks, rotary evaporators, vacuum pumps, and heat exchangers, maintaining stable application conditions with consistent temperature, pressure, and flow rates.
- Operational efficiency at ambient temperatures up to 40°C, tailored for continuous performance.
- Equipped with large LED indicators for pump, cooling, and heating statuses, alongside an illuminated filling level indicator for easy monitoring.
- Access to an optional 1 kW heater extends the temperature range to +100°C, enhancing its versatility.
- Available in both air and water-cooled models, utilizing environmentally-friendly natural refrigerants to enhance sustainability.
OLE Controller Technology:
The advanced OLE controller combines state-of-the-art technology with user-friendly operations, facilitating intuitive menu navigation. This ensures the Pilot ONE Minichiller is suitable for routine tasks across various sectors of research and industry.
Specifications:
- Environmentally-friendly cooling solution
- High-efficiency performance with precise temperature control
- Robust stainless steel construction
- Reliable continuous operation with built-in warning functionalities
- Simple filling and emptying process
- Large, bright OLED display for clear visibility
- USB and RS232 interfaces for easy connectivity
- Utilizes natural refrigerants for enhanced environmental compliance
Additional Specifications:
| SKU |
Max Pressure |
Max Suction |
Power Requirement |
Controller |
| 3006.0093.98 |
0.25 bar |
0.17 bar |
220-240 V/60 Hz |
OLE |
| 3006.0095.98 |
0.25 bar |
0.17 bar |
220-240 V/60 Hz |
OLE |
| 3066.0001.98 |
0.17 bar |
0.4 bar |
208-240 V/60 Hz |
OLE |
| 3066.0002.98 |
0.17 bar |
0.4 bar |
208-240 V/60 Hz |
OLE |
Accessory Specifications:
| SKU |
Capacity |
Quantity |
Color |
| 6164 |
10 L |
Each |
Clear |
| 6166 |
10 L |
Each |
Clear |
Safety and Stability:
| SKU |
Width |
Depth |
Height |
Safety |
Type |
Refrigerant |
| 3006.0093.98 |
8.86 in |
14.17 in |
14.96 in |
I/FL |
Air Cooled |
R290 |
| 3006.0095.98 |
8.86 in |
14.17 in |
14.96 in |
I/FL |
Air Cooled |
R290 |
| 3066.0001.98 |
11.02 in |
19.29 in |
16.69 in |
I/FL |
Air Cooled |
R290 |
| 3066.0002.98 |
11.02 in |
19.29 in |
16.69 in |
I/FL |
Air Cooled |
R290 |
For optimal performance and safety, make sure to select the compatible Huber Heat Transfer Fluids. Reference the compatibility chart provided during the product selection process to ensure the best heat transfer efficiency.
