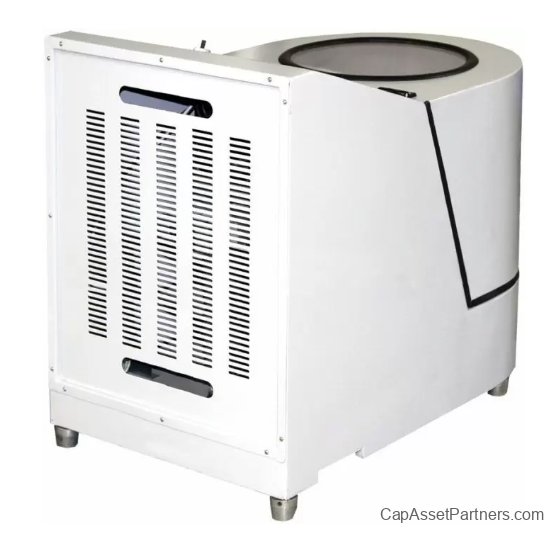

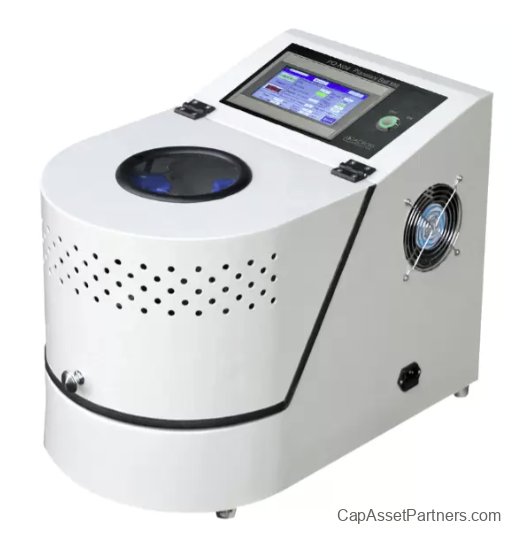

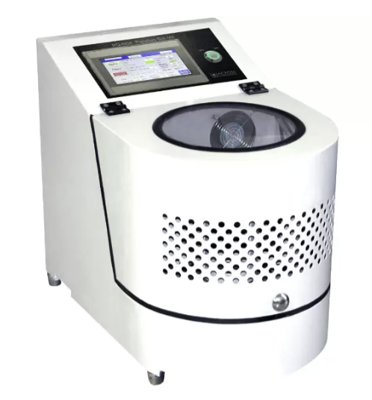

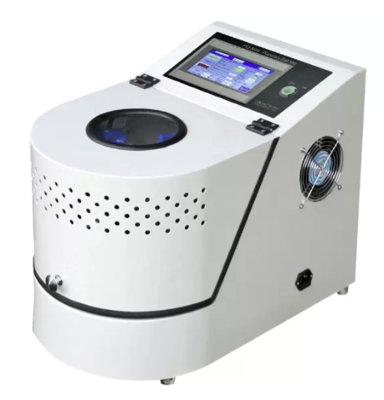

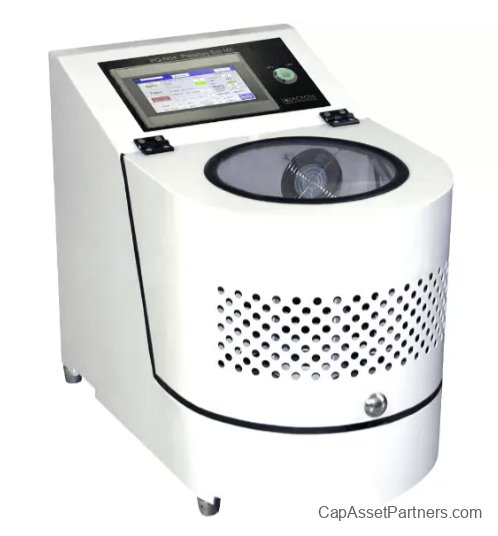

PQ Series Gear-Drive Planetary Ball Mills

The PQ Series Planetary Ball Mills are engineered for high-performance mixing, homogenizing, fine grinding, mechanical alloying, cell disruption, and the production of small volumes of advanced materials. Whether you're looking for a robust solution for wet or dry milling, these mills are designed to deliver outstanding results with minimal noise—a perfect choice for acquiring research samples quickly and efficiently.

Key Features:

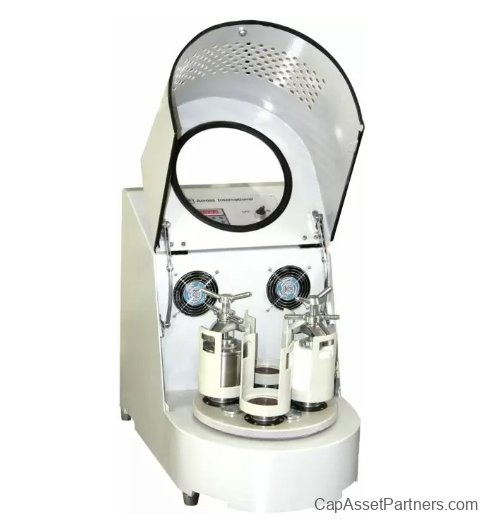

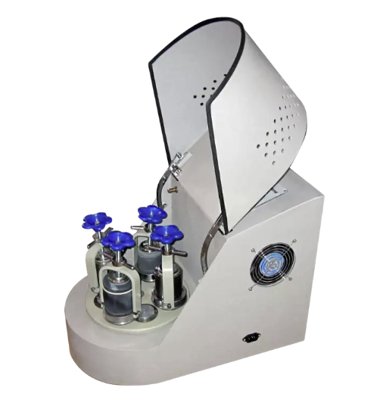

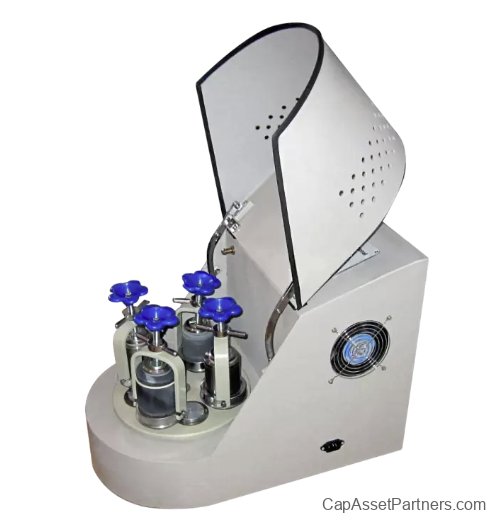

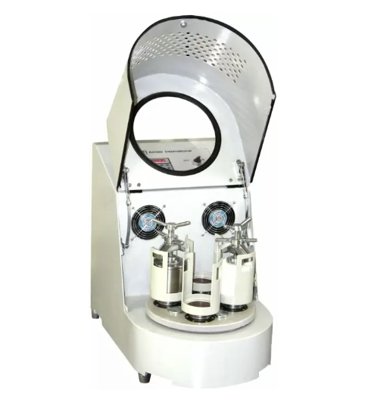

• Working Modes: Two or four grinding jars can operate simultaneously for maximum efficiency.
• Exceptional Feeding Capacity: Operate at 2/3 of the grinding jar's maximum capacity.
• Discharge Granularity: Achieve final product granularity as fine as 0.1µm.
• Feeding Granularity Limitations: Soil materials ≤ 10 mm; other materials ≤ 3 mm (preliminary size reduction may be required for larger samples).
• High Uniformity: Guarantees excellent repeatability across samples.
• Rapid Rotational Speed: Designed for high efficiency and fine granularity.
• Multi-sample Capability: Process four distinct samples with varying sizes and materials simultaneously.
• Leak-Proof Jars: Available for wet grinding applications.
• Diverse Grinding Media: Offers a wide selection of materials for grinding media matching your application's needs.
• Gear-Drive Mechanism: An effective alternative to belt-driven systems, eliminating issues like belt creep and wear.

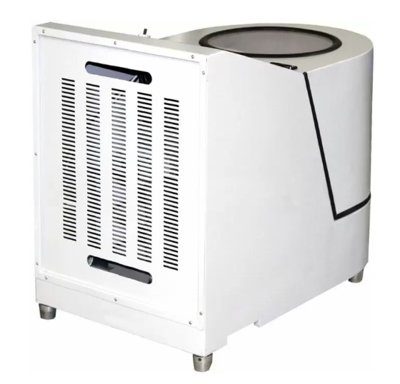

• Compact Design: Features a low center of gravity, sturdy construction, reduced noise, and reliable operation.
• Adjustable Height: Customizable height to fit your workspace requirements.
• Safety Features: Automatic shut down when the cover is opened during operation.

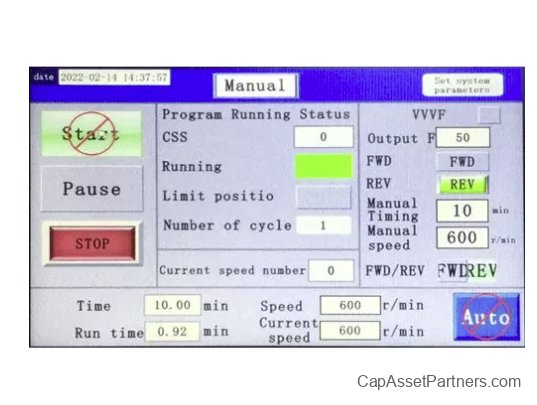

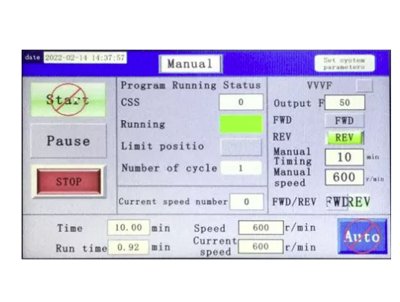

Grinding Methods:

• Single Direction Without Timing: Ideal for samples needing prolonged or continuous milling.
• Single Direction With Timing: Automatically shuts down after a designated time when grinding in one direction.
• Bi-Directional With Timing: Enables alternating clockwise and counter-clockwise operation for a specific duration, enhancing thoroughness.
• Single Direction With Paused Intervals: Allows for periodic pauses, optimizing sample processing for specific materials.
• Bi-Directional With Paused Intervals: A structured approach for samples needing precise milling intervals in both rotational directions.

Included Components:

• Four Jar Clamping Devices
• Four Rubber Jar Cushions
• Stainless Steel Sieve
• Spare Motor Belts
• Space Fuses
• Hex Keys
• Power Cord

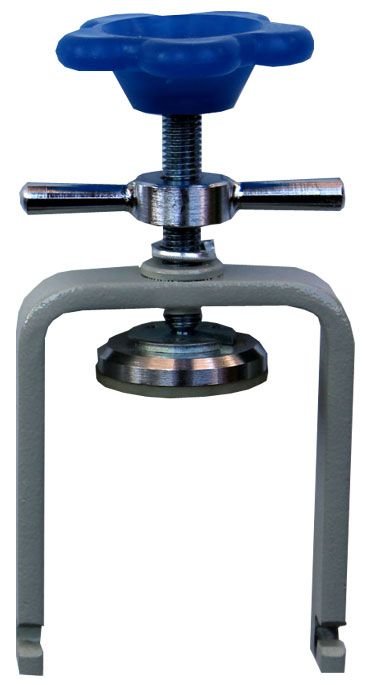

• Additional: The PQN4 model includes two Tightening Tubes.

Specifications:

Additional Information:

Disclaimer: Achieving the desired particle size using the PQ Series Ball Mill involves a research process that depends on material characteristics, grinding time, rotational speed, and jar/ball combinations. Users are responsible for determining the optimal milling procedure based on their materials. Paid sample testing services are available to establish baseline procedures prior to purchase. Note: Only stainless steel jars do not require vacuum jackets in vacuum conditions. Vacuum jars must be operated with a separate vacuum pump.
