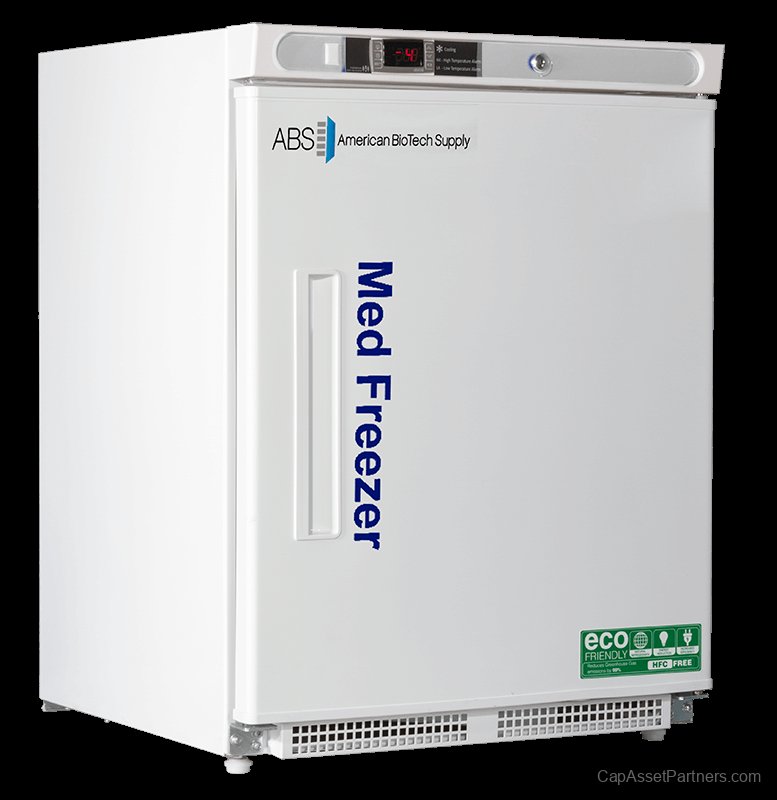

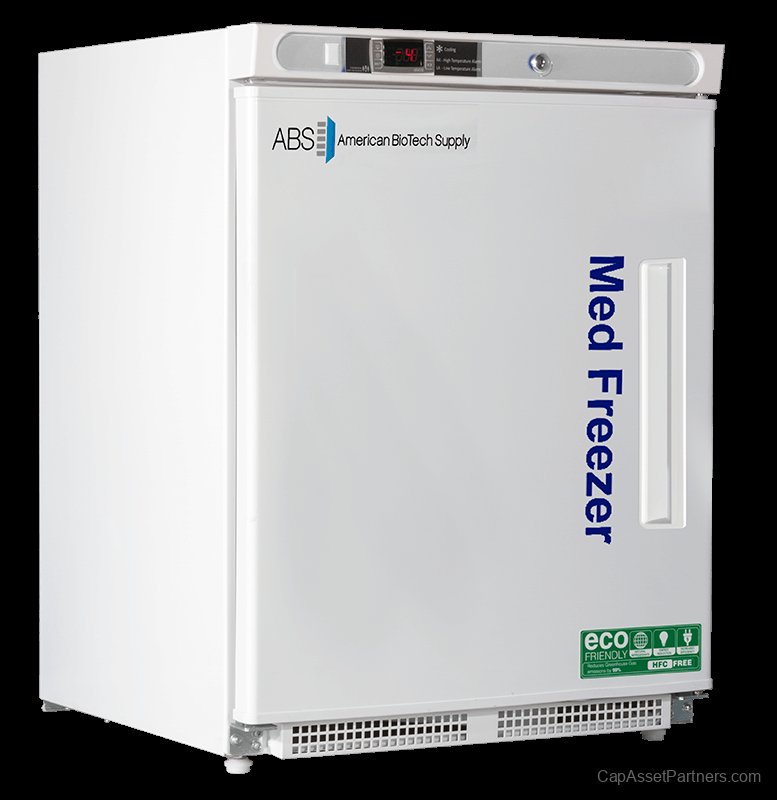

Premier Built-In Undercounter ADA Manual Defrost Vaccine Freezers
Designed specifically for the storage of critical samples and pharmaceuticals, the Premier Built-In Undercounter Vaccine Freezers combine functionality with innovative technology. Featuring a microprocessor temperature controller, these freezers offer precise temperature management, ensuring your vaccines and sensitive materials remain secure and viable.
Key Features
- Microprocessor Temperature Controller: Provides accurate temperature control and monitoring.
- Digital Temperature Display: Easy-to-read screen for real-time temperature readouts.
- Temperature Monitor Device (TMD): Fully compliant with CDC guidelines, includes a 3-year certification of calibration and min/max memory for thorough tracking.
- Alarms: Audible and visual alerts for high and low temperature thresholds, equipped with remote contacts for additional security.
- Dual Probes: Includes 1 probe for air temperature and another in a glycol bottle for enhanced accuracy.
- Probe Access Port: 3/8" port for easy access and monitoring of internal temperatures.
- Magnetic Door Gasket: Ensures a positive seal to maintain internal temperatures.
- Recessed Door: Space-saving design that allows for easy integration into cabinetry.
- Leveling Legs: Adjusts to ensure stability on uneven surfaces.
- Insulation: High-density urethane foam insulation in the cabinet and door for optimal energy efficiency.
- Energy Consumption: Rated at only 0.97 kWh/day, making it energy efficient.
- Compatibility: Designed to work seamlessly with Pyxis®, Omnicell®, and AcuDose RX® medication management systems.
Certifications and Compliance
Product Specifications
| SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Compliance |
Hinge |
| PH-ABT-HC-UCBI-0420-ADA |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL listed, ENERGY STAR |
2 Year |
ADA |
Right |
| PH-ABT-HC-UCBI-0420-ADA-LH |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL listed, ENERGY STAR |
2 Year |
ADA |
Left |
Additional Information
| SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
| PH-ABT-HC-UCBI-0420-ADA |
23.75 in x 24.5 in x 31.9375 in |
115V, 60Hz, 1.5A, 1/8 HP |
R600a |
Microprocessor |
| PH-ABT-HC-UCBI-0420-ADA-LH |
23.75 in x 24.5 in x 31.9375 in |
115V, 60Hz, 1.5A, 1/8 HP |
R600a |
Microprocessor |
Note: Periodic defrosting is required to maintain optimal performance.
