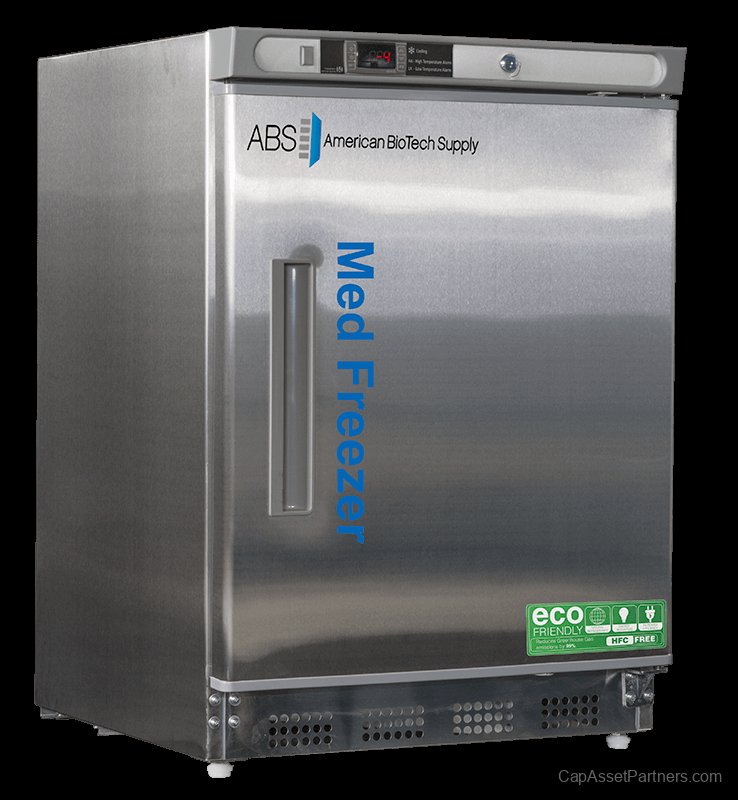

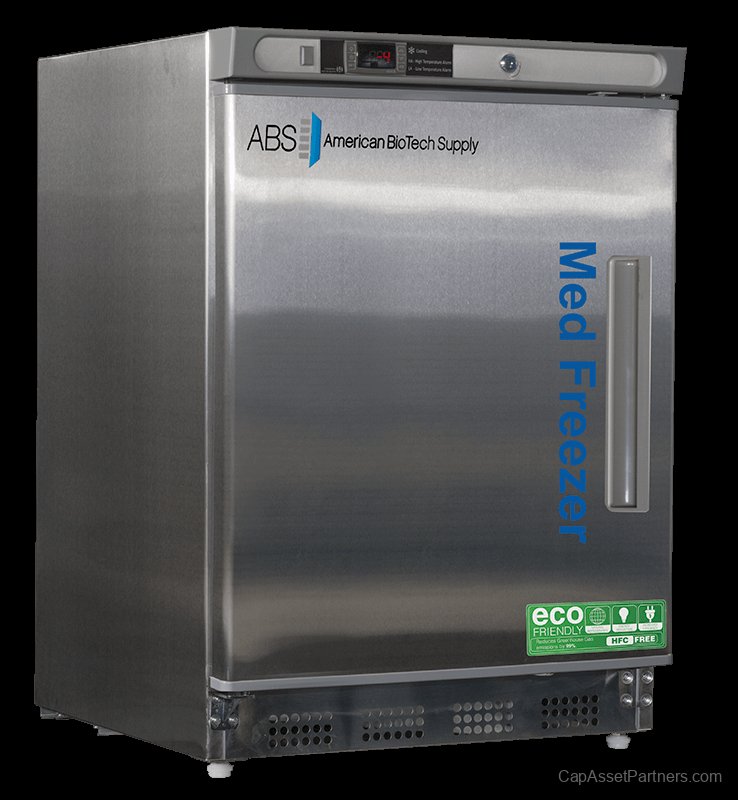

Premier Built-In Undercounter Stainless Steel Vaccine Freezers
Introducing the Premier Built-In Undercounter Stainless Steel Vaccine Freezers, engineered to provide meticulous and reliable temperature control essential for preserving critical samples and supplies. The advanced microprocessor temperature controller ensures precise adjustments, verification, and recovery, significantly enhancing the storage capability over traditional mechanical-style thermostats.
Key Features
- Microprocessor Temperature Controller: Offers superior accuracy for optimal sample preservation.
- Digital Temperature Display: Easy-to-read interface for real-time monitoring.
- Temperature Monitor Device (TMD): Complies with current CDC guidelines, with three years of calibration certification, featuring a buffered probe housed in a simulated solution, along with min/max memory capabilities.
- Audible and Visual Alarms: Alerts for high and low temperatures, complete with remote contact options to enhance security.
- Dual Probes: One situated in air and the other in a glycol bottle for accurate monitoring.
- Probe Access Port: Equipped with a 3/8" port for easy access and maintenance.
- Magnetic Door Gasket: Ensures a positive seal to maintain temperature integrity.
- Recessed Door Design: Allows for space-efficient installation.
- Leveling Legs: Ensures stability on uneven surfaces.
- High-Density Urethane Foam Insulation: Provides superior thermal performance, optimizing energy efficiency.
- Energy Consumption: Only 0.97 kWh/day, promoting sustainability.
- Compatibility: Designed to work seamlessly with Pyxis®, Omnicell®, and AcuDose RX® systems.
Certifications and Compliances
Specifications
SKU |
Door Type |
Operating Temperature Range |
Certification |
Warranty |
Hinge |
PH-ABT-HC-UCBI-0420SS |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL listed, ENERGY STAR |
2 Year |
Right |
PH-ABT-HC-UCBI-0420SS-LH |
Solid Swing Door |
-15°C to -25°C |
UL, C-UL listed, ENERGY STAR |
2 Year |
Left |
Additional Information
SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
PH-ABT-HC-UCBI-0420SS |
23.75 in x 24.5 in x 33.375 in |
115V, 60Hz, 1.5A, 1/8 HP |
R600a |
Microprocessor |
PH-ABT-HC-UCBI-0420SS-LH |
23.75 in x 24.5 in x 33.375 in |
115V, 60Hz, 1.5A, 1/8 HP |
R600a |
Microprocessor |
Note: Periodic defrosting is required for optimal operation.
