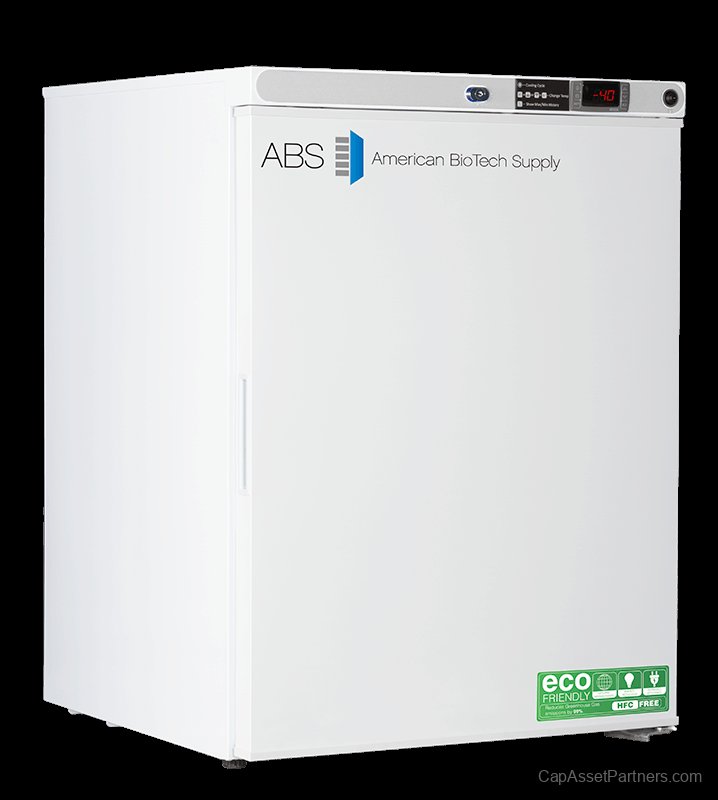

Premier Freestanding Undercounter Freezers
The Premier Freestanding Undercounter Freezers are designed for precise temperature management, ensuring the safety and integrity of critical samples and supplies. Utilizing advanced microprocessor technology, these units feature a sophisticated temperature controller and display that surpass traditional mechanical thermostats, offering enhanced verification and recovery capabilities.
Key Features:
- Microprocessor temperature controller for accurate temperature management
- Digital temperature display for real-time monitoring
- Audible and visual high/low temperature alarms equipped with remote alarm contacts
- Dual probe system:
- One probe located in the air for ambient temperature regulation
- One probe submerged in a sample bottle for precise readings
- Probe access port (3/8") for easy probe insertion and maintenance
- Magnetic door gasket ensures a positive seal maximizing thermal efficiency
- Back wall evaporator cover enhances reliability and efficiency
- Bottom footed shelf designed for optimal air circulation
- Shelves include guard rails to prevent product displacement
- Recessed door handle for ergonomic access
- Adjustable leveling legs for stability on uneven surfaces
- Durable powder coat exterior for longevity
- High-density urethane foam insulation for superior thermal retention
- Environmentally friendly HFC-free refrigerant (R290) with sustainable insulation and packaging
- Flexible design available with left or right hinge option
Compatibility:
- Compatible with systems like Pyxis®
- Supports integration with Omnicell®
- Compatible with AcuDose RX®
Certifications:
- UL and C-UL Listed for safety compliance
- ENERGYSTAR certified for efficiency
Specifications:
SKU |
Door Type |
Operating Temperature Range |
Certification |
Hinge |
ABT-HC-UCFS-0430 |
Solid Swing Door |
-20°C to -30°C |
UL, C-UL Listed, ENERGYSTAR |
Right |
ABT-HC-UCFS-0440 |
Solid Swing Door |
-37°C to -43°C |
UL, C-UL Listed, ENERGYSTAR |
Right |
Additional Information:
SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
ABT-HC-UCFS-0430 |
23.75 in x 24.0 in x 32.125 in |
115V, 60Hz, 2.2A, 1/4 HP |
R290 |
Microprocessor |
ABT-HC-UCFS-0440 |
23.75 in x 24.0 in x 32.125 in |
115V, 60Hz, 2.2A, 1/4 HP |
R290 |
Microprocessor |
Note: Regular defrosting is essential for optimal performance. Ensure to maintain a minimum of 4 inches of clearance around the unit to facilitate proper ventilation and prevent overheating. Improper installation will void any applicable warranty.
