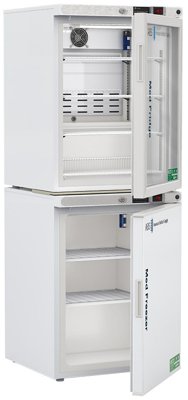

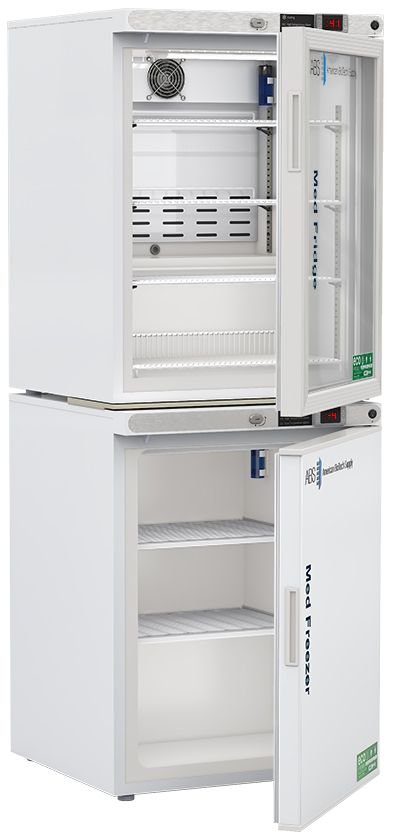

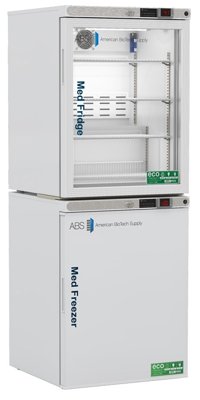

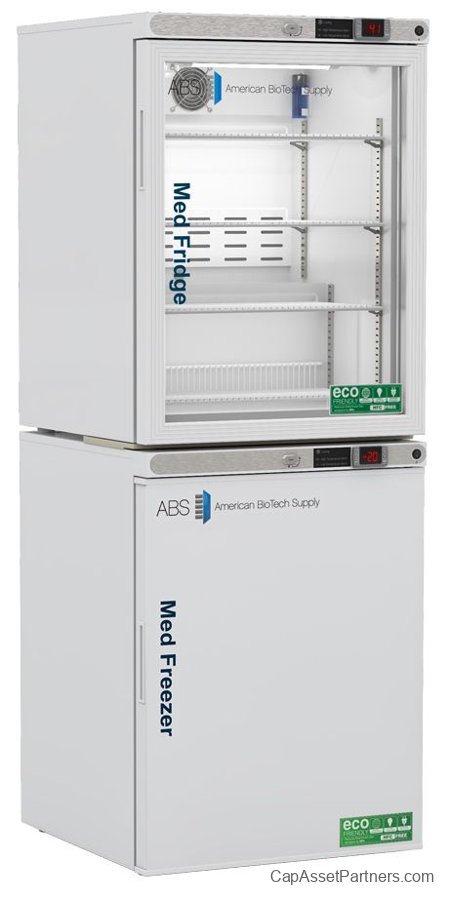

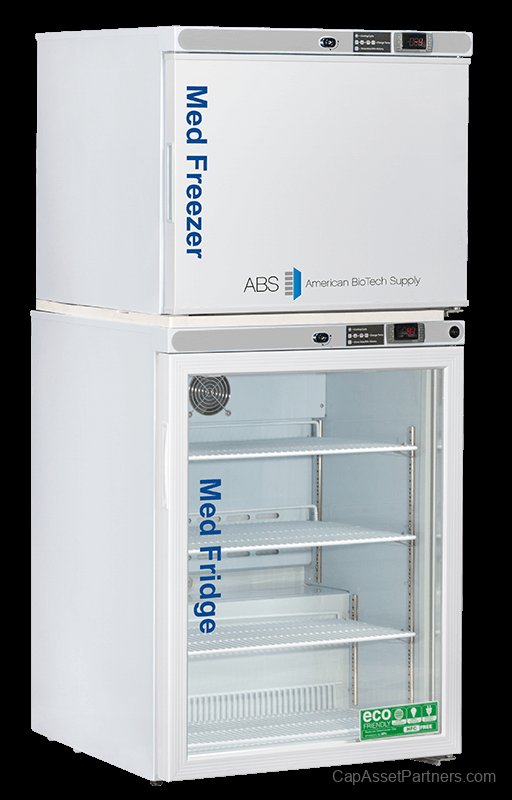

Premier Pharmacy Dual Temp Refrigerator/Freezer Combination
The Premier Pharmacy Dual Temp Combination unit is engineered for precision and reliability in temperature-sensitive environments. Featuring a sophisticated microprocessor temperature controller, this unit allows for accurate temperature control, easy verification, and swift recovery, ensuring the integrity of critical samples and supplies.
Equipped with an interior fan-driven, forced-draft air circulation system, this unit maintains exceptional temperature uniformity, making it ideal for pharmacy and laboratory use. Each model comes with digital temperature displays for convenient monitoring, while audible and visual alarms provide essential security and alerts for temperature fluctuations.
This unit’s freezer section includes options for either automatic or manual defrost operating systems, catering to varied operational preferences. Note that manual defrost models require regular manual defrosting to maintain optimal performance.
Key Features:
- 5.2 Cu. Ft. Refrigerator Capacity / 4 Cu. Ft. Freezer Capacity
- Includes One Glass Swing Door (Fridge) and One Solid Swing Door (Freezer)
- Three Adjustable Shelves in both Fridge and Freezer
- Bottom Footed Shelf for Enhanced Air Circulation
- Back Wall Evaporator Cover
- Keyed Door Locks for added security
- Magnetic Door Gasket provides positive sealing
- Recessed Door Handles for sleek operation
- Stacking Kit included for space optimization
- Leveling Legs for stability on uneven surfaces
- Illuminated with LED Interior Light
- Probe Access Port (3/8") to facilitate easy monitoring
- Environmentally-friendly refrigerants: HFC-free in Refrigerator (R600A), Natural hydrocarbon (R290) in Freezer
- High Density Urethane Foam Cabinet and Door Insulation
- Includes comprehensive alarms: audible and visual for both high and low temperature variances
- Two Temperature Probes: One for Air, One for Sample Bottle
- Remote Alarm Contacts for efficient alert management
- Temperature Monitor Device (TMD) complies with CDC guidelines, featuring a buffered probe and Min/Max memory
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Electrical Information |
Dimensions (in) |
| PH-ABT-HC-RFC1020 |
Dual Solid Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -35°F to -45°F (-37°C to 43°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
1.4A, 1/8 HP Freezer |
23.75 x 24 x 65 |
| PH-ABT-HC-RFC1020G |
Solid and Glass Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -35°F to -45°F (-37°C to 43°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
1.4A, 1/8 HP Freezer |
23.75 x 24 x 65 |
| PH-ABT-HC-RFC1030 |
Dual Solid Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -4°F to -22°F (-20°C to 30°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
2.2A, 1/4 HP Freezer |
23.75 x 24 x 65 |
| PH-ABT-HC-RFC1030G |
Solid and Glass Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -4°F to -22°F (-20°C to 30°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
2.2A, 1/4 HP Freezer |
23.75 x 24 x 65 |
| PH-ABT-HC-RFC1040 |
Dual Solid Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -35°F to -45°F (-37°C to 43°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
2.2A, 1/4 HP Freezer |
23.75 x 24 x 65 |
| PH-ABT-HC-RFC1040G |
Solid and Glass Swing Door |
Fridge: 36°F to 46°F (2°C to 8°C)
Freezer: -35°F to -45°F (-37°C to 43°C) |
115V, 60Hz, 1.3A, 1/6 HP Fridge
2.2A, 1/4 HP Freezer |
23.75 x 24 x 65 |
Installation Note:
This unit requires a minimum of 4 inches of clearance around its sides and back for proper ventilation. Failure to comply with this installation requirement may void the warranty and impact the unit's operational efficiency.
