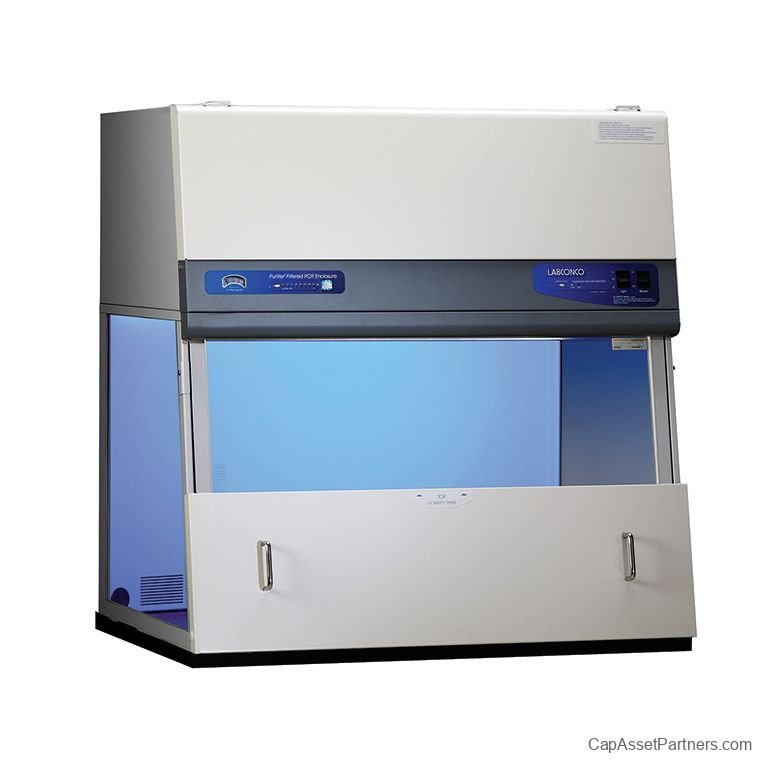

Purifier Filtered PCR Enclosure
Ensure superior contamination control in your laboratory with the Purifier Filtered PCR Enclosure. Designed for polymerase chain reaction (PCR) experiments, this enclosure directs HEPA-filtered air downwards to provide ISO Class 5 conditions—commonly referred to as Class 100 cleanliness. Protect your sensitive work from particulate contamination while maintaining a controlled experimental environment.
Key Features
- Nominal downflow velocity of 45-65 fpm
- Aerodynamic air foil design for enhanced airflow
- High-efficiency supply HEPA filter, capturing 99.99% of particles down to 0.3 microns
- Built-in disposable prefilter offers additional protection
- Variable speed blower with motorized impeller and solid-state control rated for 10 amps
- Negative pressure design enhances safety and reliability
- Integrated Minihelic pressure gauge for real-time airflow monitoring
- Air diffuser ensures uniform airflow across the work surface
- UV-resistant powder-coated aluminum and steel construction in glacier white and gray finishes
- Tempered safety glass sash and sides—UV-opaque and 1/4” thick for added durability
- Bright fluorescent lamp for optimal visibility during experiments
- 254 nm UV lamp for effective deactivation of DNA and RNA contaminants, equipped with an interlocked UV protection panel
- Programmable variable digital timer for UV exposure with customizable settings at 5, 10, 15, 30, 60, 120, and 240 minutes, plus continuous mode
- Three-way light switches for fluorescent, UV, and off modes
- Generous 9.4” high sash opening for easy access
- Ergonomically designed 10° angled and hinged sash, which locks into a comfortable loading height at 20”
- Two utility ports with iris openings and plugs for added convenience
Compliance Standards
- Meets UL Standard 3101-1/61010-1 (115 volt models)
- Complies with CAN/CSA Standard C22.2 No. 1010.1 (115 volt models)
- CE conformity marking for 230 volt models
Available Configurations
Purifier Filtered PCR Enclosures are available in convenient widths of 2, 3, and 4 feet to accommodate various workspace requirements.
Important Note
This enclosure is designed exclusively for PCR applications and does not offer user protection against hazardous materials, toxins, or radionuclides.
