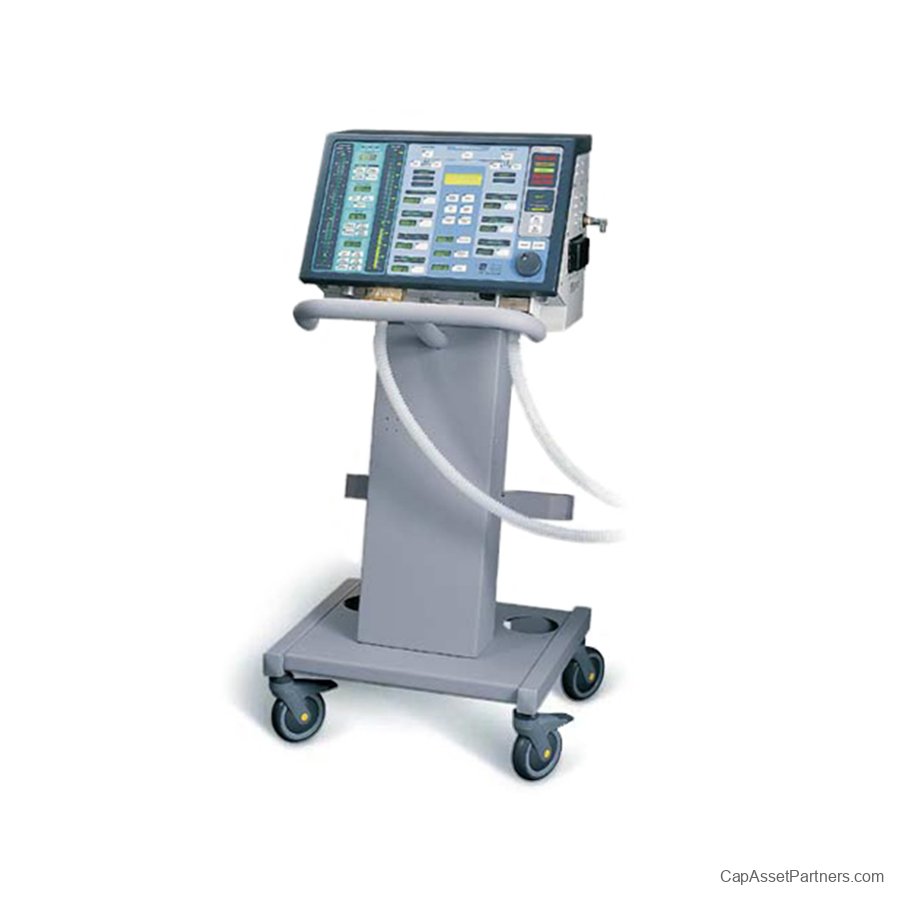

Puritan Bennett 760 Ventilator

Product Description: Puritan Bennett 760 Ventilator
The Puritan Bennett 760™ Ventilator stands out as a comprehensive solution for advanced respiratory care in Intensive Care Units (ICUs). Designed with both affordability and usability in mind, this ventilator builds on the capabilities of the 740™ model and introduces enhanced features for improved patient support. Ideal for both metropolitan hospitals and remote medical facilities, it is engineered to accommodate a wide range of clinical conditions for pediatric and adult patients.
Key Features:

• User-Friendly Design: The Puritan Bennett 760™ Ventilator is known for its exceptional value, making it easy to operate and service, significantly reducing the burden on medical staff.

• Innovative Gas Delivery System: This ventilator is equipped with a high-performance gas delivery system that utilizes a frictionless air piston and flow triggering to seamlessly respond to patients' breathing efforts—eliminating the need for a compressed air source for enhanced operational efficiency.

• Versatile Ventilation Modes: Offering both volume control ventilation and pressure control ventilation, the 760™ supports a wide array of clinical scenarios, ensuring optimal care for individuals in respiratory distress.

• Flexible Mounting Options: The ventilator can be conveniently mounted on a cart or shelf, maximizing the flexibility of use across various hospital units.

• Advanced Communication Capabilities: An optional communications panel enables the 760™ to connect with various external devices, including remote alarms, nurse call systems, and central station networks like the Clinivision® Clinical Information System.

• Speaking Valve Mode: This unique feature allows for ventilation of patients using a speaking valve while monitoring the volumes delivered, ensuring effective communication and respiratory management.

• Intuitive Display Lighting: The ventilator comes equipped with "current" and "proposed" lights, providing clear indications of activated settings and proposed modes, breath types, and configurations.

The Puritan Bennett 760™ Ventilator perfectly combines advanced technology, value, and versatility, making it a trusted choice for healthcare providers committed to delivering high-quality respiratory care.

Puritan Bennett 760 Ventilator Specifications

• Dimensions:

• Height: 26.4 in (67.1 cm)

• Width: 16.5 in (41.9 cm)

• Depth: 20.0 in (50.8 cm)

• Weight:

• 30 lbs (13.6 kg)

• Power Requirement:

• Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Airway Pressure:

• Maximum Pressure: 60 cm H2O

• Tidal Volume:

• Range: 50 to 1500 mL (0.05 to 1.5 L)

• Respiratory Rate:

• Range: 1 to 60 breaths/min

• Inspiratory Time:

• Range: 0.5 to 5.0 seconds

• Flow Rates:

• Peak Flow: Up to 120 L/min

• Modes of Ventilation:

• Volume Control

• Pressure Control

• Assist/Control

• SIMV (Synchronized Intermittent Mandatory Ventilation)

• Environmental Conditions:

• Operating Temperature: 0 to 40 °C (32 to 104 °F)

• Operating Humidity: 15% to 95% (non-condensing)

• O2 Concentration:

• Range: 21% to 100%

• Interface:

• Touchscreen display with user-friendly interface

• Patient Monitoring:

• Integrated monitoring for pressure, volume, and flow

• Alarm System:

• Multiple adjustable alarms for apnea, high/low pressure, and more

• Data Management:

• Internal memory for storing patient data and settings

• Communication:

• Serial port for data transfer and integration with hospital systems

• Battery Backup:

• Duration: Approximately 30 minutes (depends on usage)

Note: Always refer to the manufacturer's manual for comprehensive information and specific configurations.
