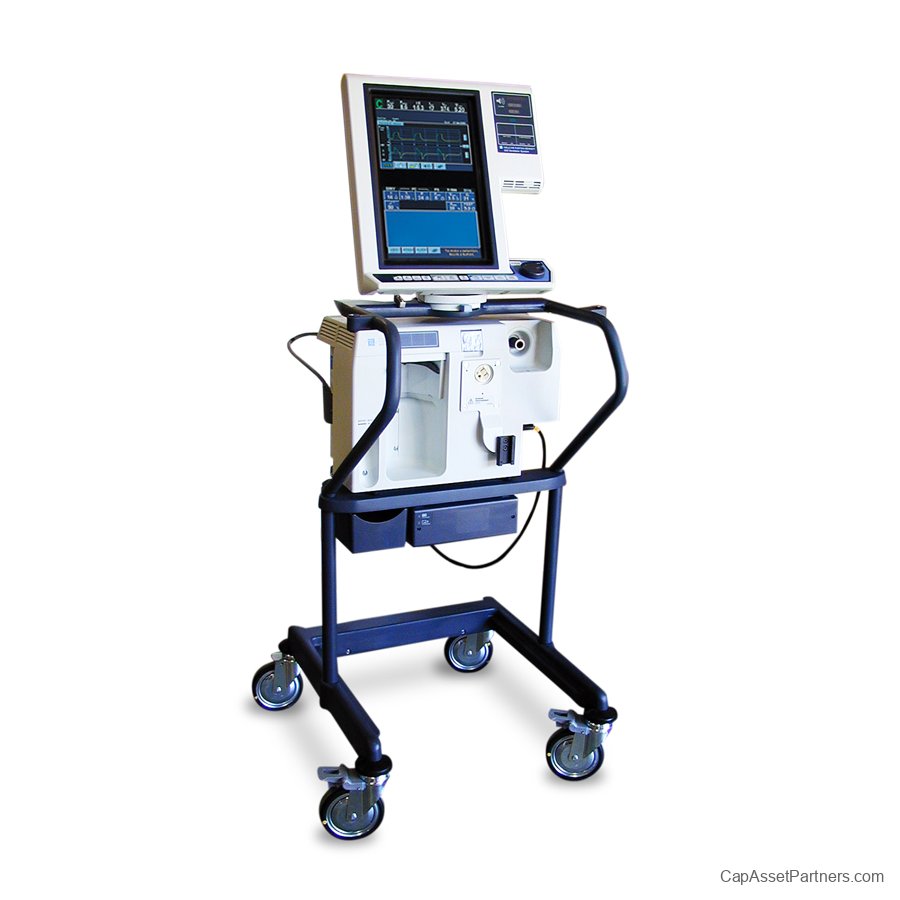

Puritan Bennett 840 Ventilator

Puritan Bennett 840 Ventilator: The Ultimate Solution for Critical Care
The Puritan Bennett 840 Ventilator is expertly engineered to meet the demands of high-volume environments like Intensive Care Units (ICU), Neonatal Intensive Care Units (NICU), and Respiratory Therapy units. This versatile ventilator is designed for a wide range of patients, from neonates to adults, effectively catering to even the most complex critical care cases.
Key Features of the Puritan Bennett 840:

• Advanced Technology: Equipped with DualView touchscreens, high-performance pneumatics, and dual-microprocessor electronics for streamlined operation.

• Easy Upgrades: Customize and upgrade software effortlessly to adapt to future clinical needs.

• Enhanced Noninvasive Ventilation (NIV): This system supports patients with a stable respiratory drive, ensuring comfort and efficacy.

• Data Integration: Seamless communication with major patient monitoring systems enhances electronic data transfer capabilities.

• Optional Clinivision Mobile Patient Charting Software: Utilize evidence-based medicine practices with integrated charting solutions.

• Low Overall Cost of Ownership: Built for durability and reliability in high-volume settings, the Puritan Bennett 840 is designed for easy servicing and cost-effective operation.

Software Options:

• BiLevel: Facilitates spontaneous breathing at two PEEP levels, improving patient-ventilator synchronization.

• Volume Ventilation Plus: Offers a pressure control breath style with guaranteed tidal volume delivery.

• Tube Compensation: Enhances spontaneous breath delivery by effectively addressing the workload caused by artificial airways.

• NeoMode: Capable of ventilating patients weighing as little as 500 grams, with no need for a flow sensor at the patient's airway.

With its robust features and innovative technology, the Puritan Bennett 840 Ventilator stands out as a reliable choice for healthcare professionals committed to providing exceptional respiratory care in critical settings.

Puritan Bennett 840 Ventilator Specifications:

• Type: Critical Care Ventilator

• Ventilation Modes:

• Volume Control (VC)

• Pressure Control (PC)

• Assist-Control (A/C)

• Synchronized Intermittent Mandatory Ventilation (SIMV)

• Continuous Positive Airway Pressure (CPAP)

• Bi-Level Positive Airway Pressure (BiPAP)

• Tidal Volume Range:

• Minimum: 20 mL

• Maximum: 2,500 mL

• (1 – 100 mL, can be adjusted based on patient's needs)

• Respiratory Rate:

• Adjustable: 1 to 60 breaths per minute

• PEEP (Positive End-Expiratory Pressure):

• Adjustable: 0 to 20 cm H2O

• (0 to 15.4 mmHg)

• Pressure Support Settings:

• Adjustable: 0 to 60 cm H2O

• (0 to 46.2 mmHg)

• Inspiratory Time (Ti):

• Adjustable: 0.1 to 4.0 seconds

• Oxygen Concentration (FiO2):

• Adjustable: 21% to 100%

• Minute Ventilation:

• Adjustable: 1 to 20 L/min

• (0.26 to 5.3 L/sec)

• Compliance Measurements:

• Displayed as static compliance and dynamic compliance

• Modes of Operation:

• Invasive and Non-invasive ventilation with dedicated circuits

• User Interface:

• LCD Screen: 10.4 inches

• Touchscreen capability for ease of use

• Alarms:

• High/low pressure, minute volume, PEEP, tidal volume, apnea, and various other system alarms

• Power Supply:

• AC Power: 100-240 V, 50/60 Hz

• Battery Backup: Up to 2 hours of operation

• Weight:

• Approximately 70 lbs (32 kg)

• Dimensions:

• Height: 28 in (71.1 cm)

• Width: 17 in (43.2 cm)

• Depth: 20 in (50.8 cm)

• Connectivity:

• Serial and Ethernet ports for interfacing with hospital networks and monitoring systems

• Compliance Standards:

• Meets ISO, IEC, and relevant safety standards for medical devices

• Additional Features:

• Built-in nebulizer

• Data storage and review capabilities

• Adjustable peak flow settings

Please refer to the manufacturer's documentation for further details and safety guidelines.
