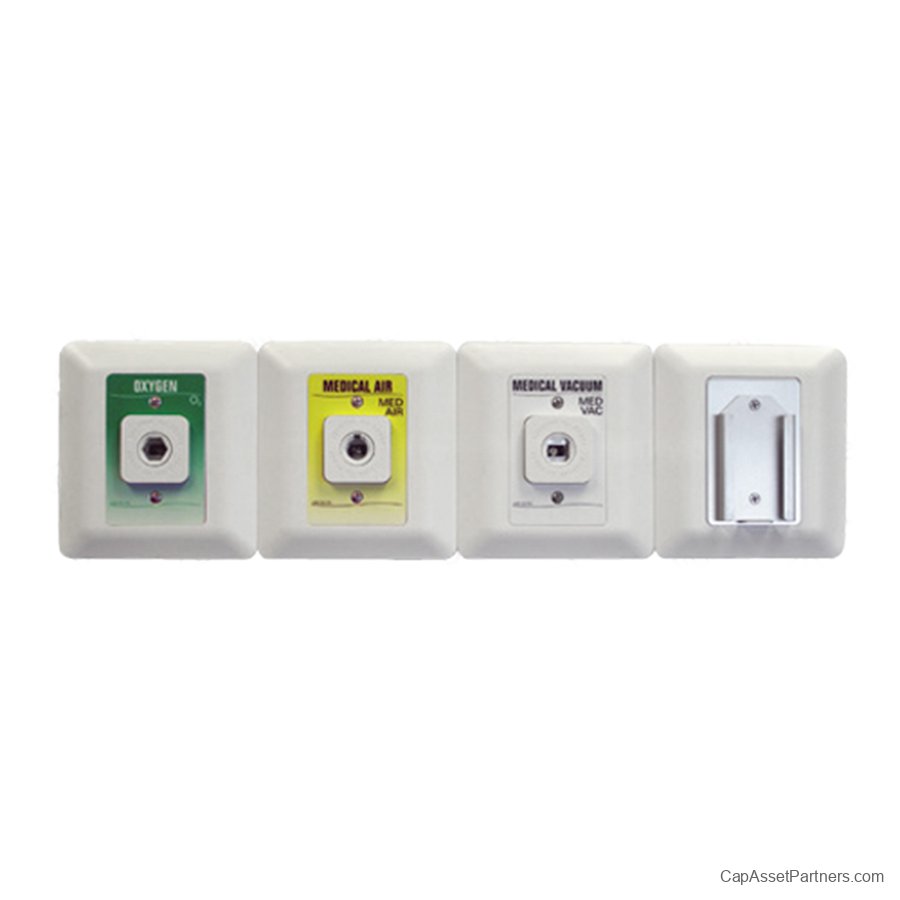

Puritan Quick Connect Recessed Outlets
Explore the Puritan Quick Connect Recessed Outlets, expertly designed to meet the highest standards of safety and performance in medical environments. This innovative product is ETL Listed to UL 1331 and CSA Z9170-1, ensuring compliance with strict safety regulations. It conforms to NFPA 99 and CGA standards, guaranteeing reliable and secure gas delivery.
These recessed outlets are engineered with versatility in mind, accepting Puritan Bennett gas-specific compatible male adaptors and compensating for variations in wall thicknesses up to 1 inch. The gas-specific indexing feature simplifies usage, while the modular design enhances adaptability in diverse healthcare settings.
Specifications include 5-inch centers for optimal spacing and convenience, and each outlet undergoes rigorous quality assessments, being 100% tested for flow and leaks. The nameplate color coding is aligned with NFPA 99 standards, ensuring clear identification and safety. The 360 swivel inlet tube offers flexible installation options, making it easier to configure in any space.
Proudly made in the U.S.A., the Puritan Quick Connect Recessed Outlets provide a reliable and efficient solution for medical facilities aiming to improve their gas distribution systems. Enhance your healthcare environment with this essential medical equipment.
Puritan Quick Connect Recessed Outlets Specifications
General
- Modular, single quick connect medical gas outlets
- Color-coded in accordance with NFPA 99
- Gas services sequentially arranged and located as shown
- Minimum centerline spacing: 5” (12.5 cm) between outlets
- Primary check valve: removable for service without shutting off gas supply
- Secondary check valve: operates automatically to stop gas free flow
- No secondary check for Medical Vacuum and WAGD services
- Double O-ring seal between nameplate and rough-in
- Seal: serviceable without shutting off gas service, supports 10 lbs. (4.5 kg) at 2” (5 cm) from nameplate without leaking
- Scratch-resistant, durable coating for label and trim
- Rough-in supply tube: 7” (18 cm) length, ½” O.D. copper Type K
- Service in accordance with current CGA Pamphlet G-4.1
- Used in conformance with local and federal codes
