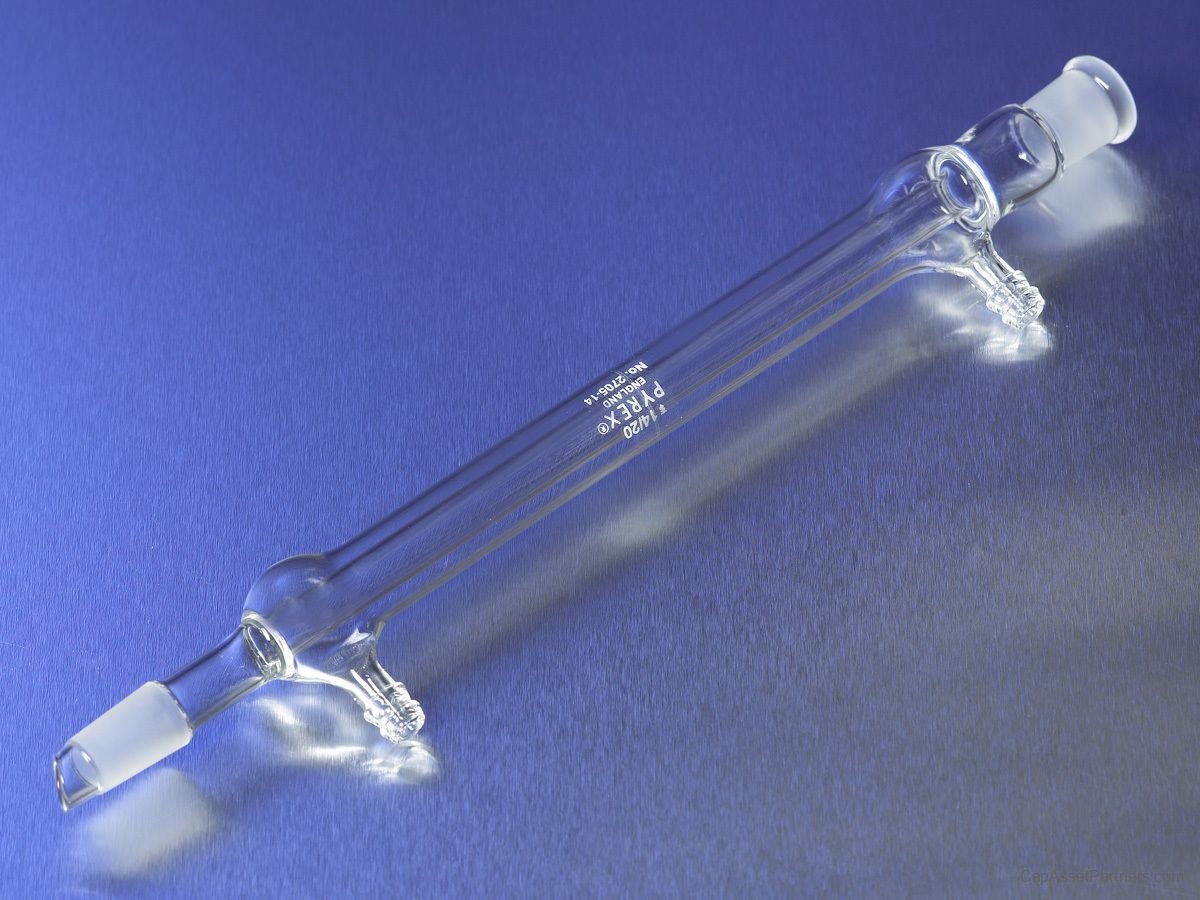

PYREX® Drip Tip West Condensers - Inner and Outer Standard Taper Joints
Enhance your laboratory setup with the PYREX® Drip Tip West Condensers, expertly engineered to meet the rigorous demands of organic chemistry applications. These condensers are designed for superior performance, making them an essential tool for chemists and researchers alike.
Key Features:
- Features a 190 mm long jacket that incorporates a Standard Taper top joint for optimal seal and connection.
- Equipped with a Standard Taper inner joint at the bottom, complemented by a drip tip to prevent unwanted spills and enhance ease of use.
- Tubulations are strategically placed on the same side to minimize breakage and improve durability during laboratory procedures.
- The tubulation's outer diameter measures approximately 10 mm, ensuring compatibility with a wide range of laboratory apparatus.
- The #2705-19 model serves as a replacement part for organic chemistry kits #6949 - #6949K, ensuring seamless integration into existing setups.
Specifications:
| SKU |
Material |
Type |
Length |
Height |
Tubulation O.D. |
| 2705-14 |
Borosilicate Glass |
West |
|
283 mm |
10 mm |
| 2705-19 |
Borosilicate Glass |
West |
|
283 mm |
10 mm |
| 2800-300 |
Borosilicate Glass |
West |
300 mm |
450 mm |
10 mm |
