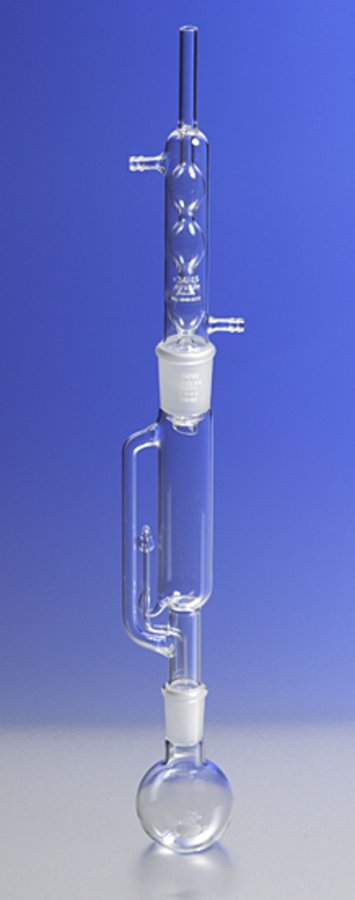

PYREX® Soxhlet Extraction Complete Apparatus
The PYREX® Soxhlet Extraction Complete Apparatus is a sophisticated and reliable tool designed for efficient extraction processes in laboratories. Featuring Standard Taper Joints and an Allihn Condenser, this apparatus ensures optimal cooling and high boiling efficiency for various applications.
Key Features:
- Replacement flask designed with a 29/42 outer Standard Taper joint, compatible with the #3840-XL 1L extractor system.
- Condenser tubulation has an outside diameter (O.D.) of 10 mm for enhanced performance and versatility.
Specifications:
| SKU |
Material |
Type |
Joint Size |
Height |
Tubulation Outside Diameter |
| 3840-S |
Borosilicate Glass |
Allihn, Boiling |
Bottom: 24/40
Top: 34/45 |
655 mm (approx.) |
8 mm (approx.) |
| 3840-XL |
Borosilicate Glass |
Air Reflux, Boiling |
Bottom: 29/42
Top: 71/60 |
880 mm (approx.) |
9 mm (approx.) |
| 3840-L |
Borosilicate Glass |
Allihn, Boiling |
Bottom: 24/40
Top: 55/50 |
803 mm (approx.) |
6 mm (approx.) |
| 3840-M |
Borosilicate Glass |
Allihn, Boiling |
Bottom: 24/40
Top: 45/50 |
711 mm (approx.) |
7 mm (approx.) |
Additional Information:
| SKU |
Capacity |
Height |
Joint Size |
Length |
Tubulation Outside Diameter |
| 3840-S |
125 mL |
655 mm (approx.) |
Bottom: 24/40
Top: 34/45 |
Siphon to Plate: 62 mm (approx.)
Extractor Body: 192 mm (approx.) |
8 mm (approx.) |
| 3840-XL |
1 L |
880 mm (approx.) |
Bottom: 29/42
Top: 71/60 |
Siphon to Plate: 13 mm (approx.)
Extractor Body: 319 mm (approx.) |
9 mm (approx.) |
| 3840-L |
500 mL |
803 mm (approx.) |
Bottom: 24/40
Top: 55/50 |
Extractor Body: 35 mm (approx.) |
6 mm (approx.) |
| 3840-M |
250 mL |
711 mm (approx.) |
Bottom: 24/40
Top: 45/50 |
Siphon to Plate: 8 mm (approx.)
Extractor Body: 25 mm (approx.) |
7 mm (approx.) |
