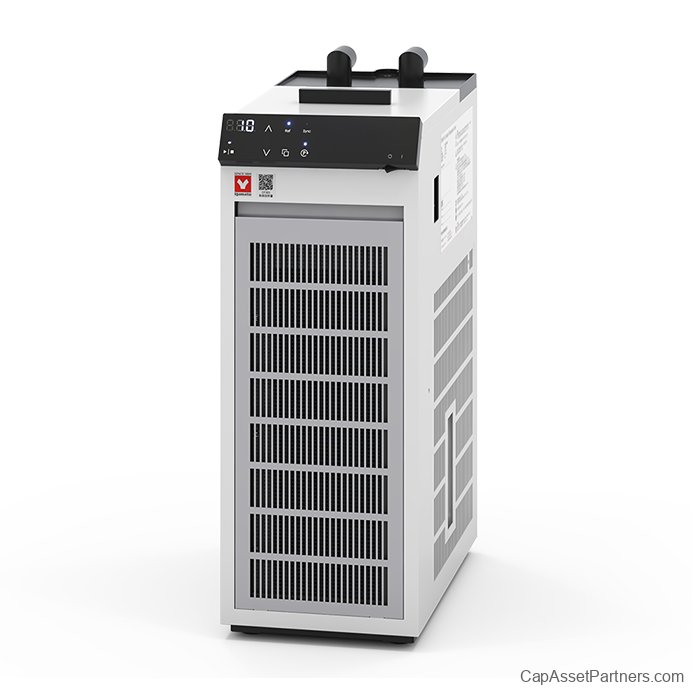

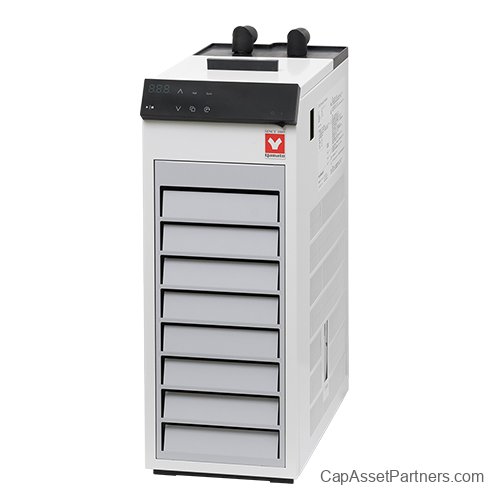

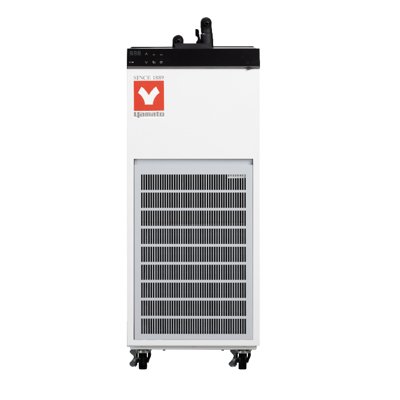

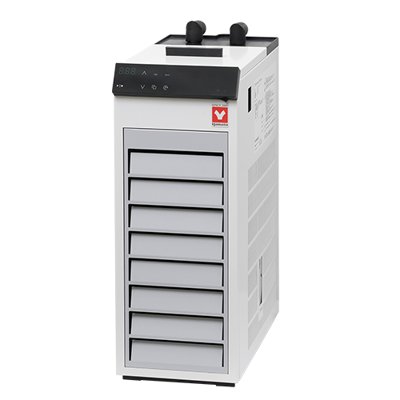

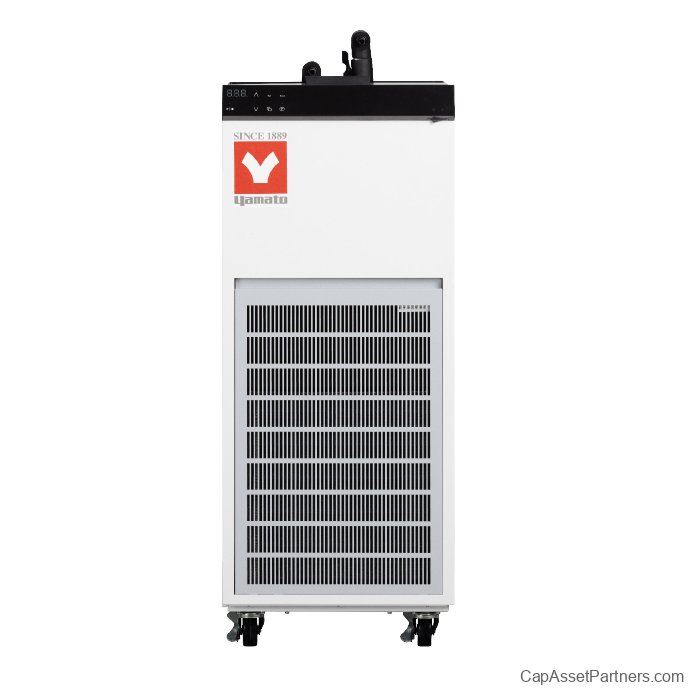

The Refrigerated Water Circulators are meticulously designed to ensure optimal performance, efficiency, and safety for a variety of laboratory applications. These advanced units offer reliable temperature control and circulation for demanding environments.
Key Features

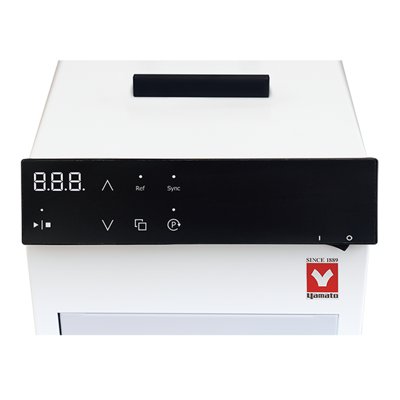

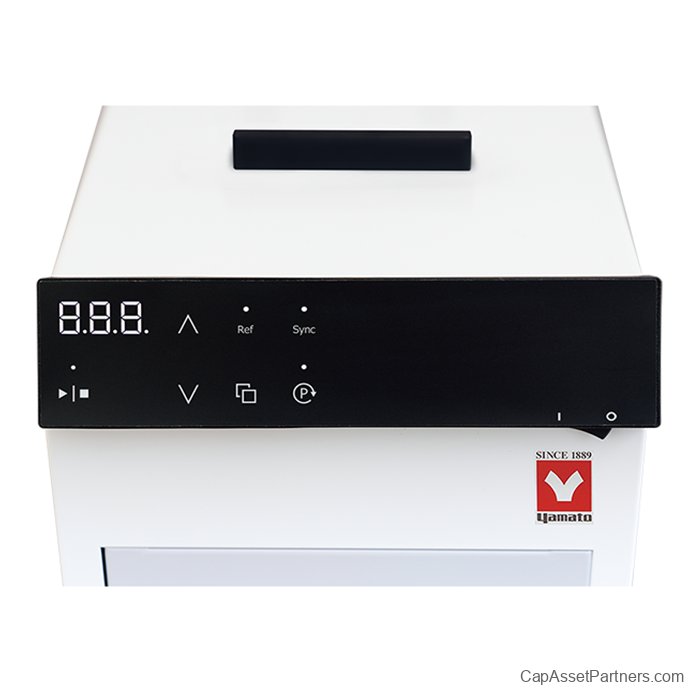

- User-friendly controller for seamless operation
- Ability to toggle between measured temperature and set temperature for precise monitoring

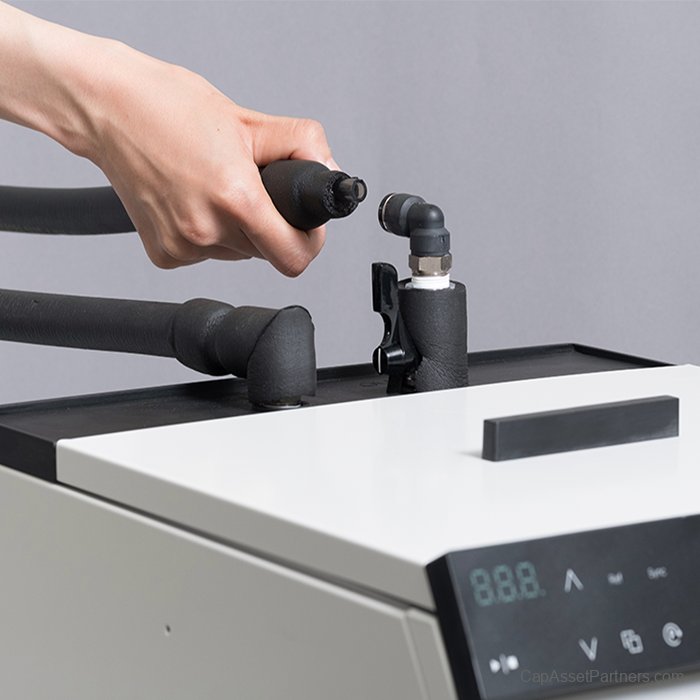

- Convenient circulation pathway connection for easy setup

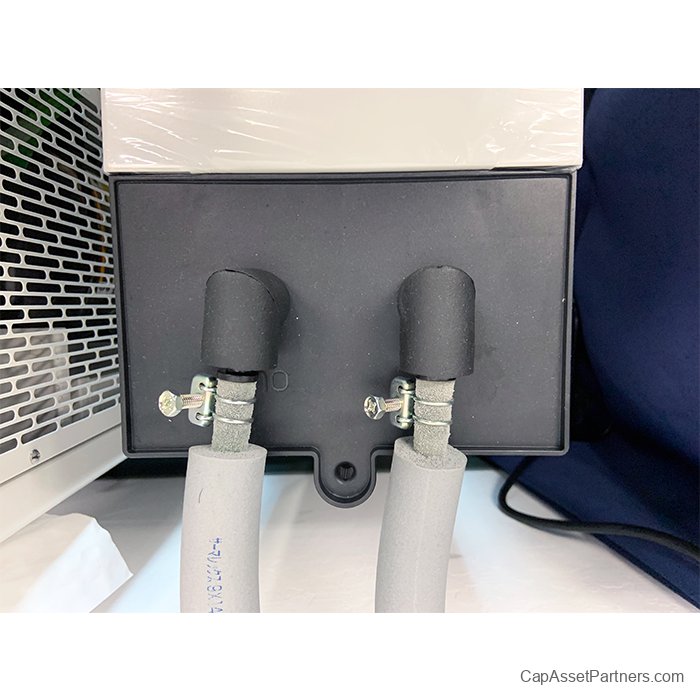

- Compatible with hard tubes (10 mm OD) or flexible hoses (9 mm ID), allowing for versatile connections
- Flexible connector positioning to accommodate your workspace

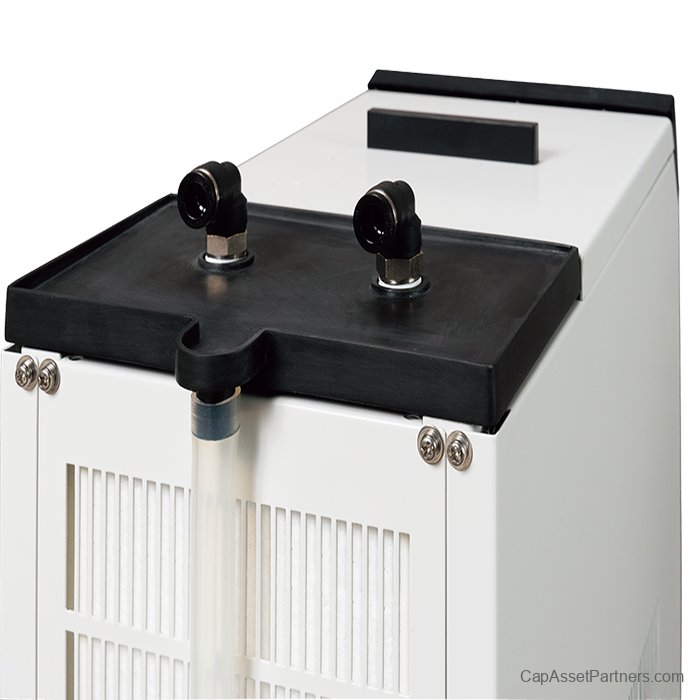

- Efficient condensation drain port located near the connector for hassle-free drainage

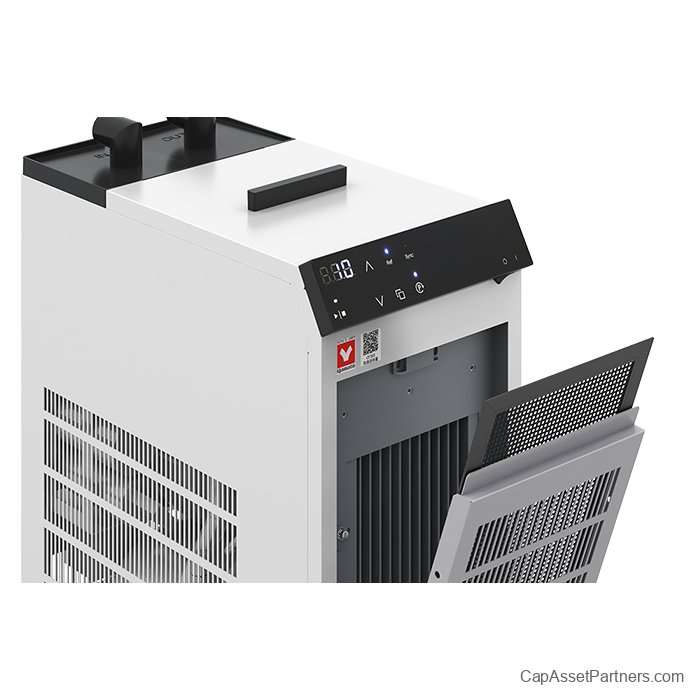

- Easy-to-clean intake filter to maintain optimum performance
Safety Features
- Overcurrent ELCB to prevent electrical hazards
- Temperature sensor failure alerts for added safety
- Upper/lower temperature limit alerts to ensure stable operations
- High pressure cut-off switch for the refrigeration system
- Circulation pump protection to enhance durability
- Delay timer for optimal refrigerator protection
- Overcurrent protection fuse for service outlets (model CF802)
- Overload relay protection in refrigeration (model CF802)
Included Accessories
- 1-meter condensation drain hose
- Two hose clamps for secure connections
- Two hose nozzles for flexible hose compatibility
- Spare 2A fuse for the service outlet (CF-802A)
Specifications
| SKU |
Cooling Capacity |
Refrigerant |
Temperature Accuracy |
Ambient Temperature Range |
| CF-303Y |
~450W at 10°C / ~330W at -10°C |
R452A |
± 1.0°C (≥ 0°C) / ± 1.5°C (< 0°C) |
5°C to 35°C |
| CF-313Y |
~450W at 10°C / ~330W at -10°C |
R452A |
± 1.0°C (≥ 0°C) / ± 1.5°C (< 0°C) |
5°C to 35°C |
| CF-802A |
~1320W at 10°C / ~700W at -10°C |
R410A |
± 1.0°C |
5°C to 35°C |
Additional Information
| SKU |
Material |
External Dimensions |
Power Requirement |
Temperature Sensor |
| CF-303Y |
Stainless Steel |
205 mm x 396 mm x 535 mm |
AC115V, 6.8A with plug |
Pt100Ω |
| CF-313Y |
Stainless Steel |
205 mm x 396 mm x 535 mm |
AC220V, 4A no plug |
Pt100Ω |
| CF-802A |
Stainless Steel |
340 mm x 370 mm x 838 mm |
AC115V, 15A with plug |
Pt100Ω |
