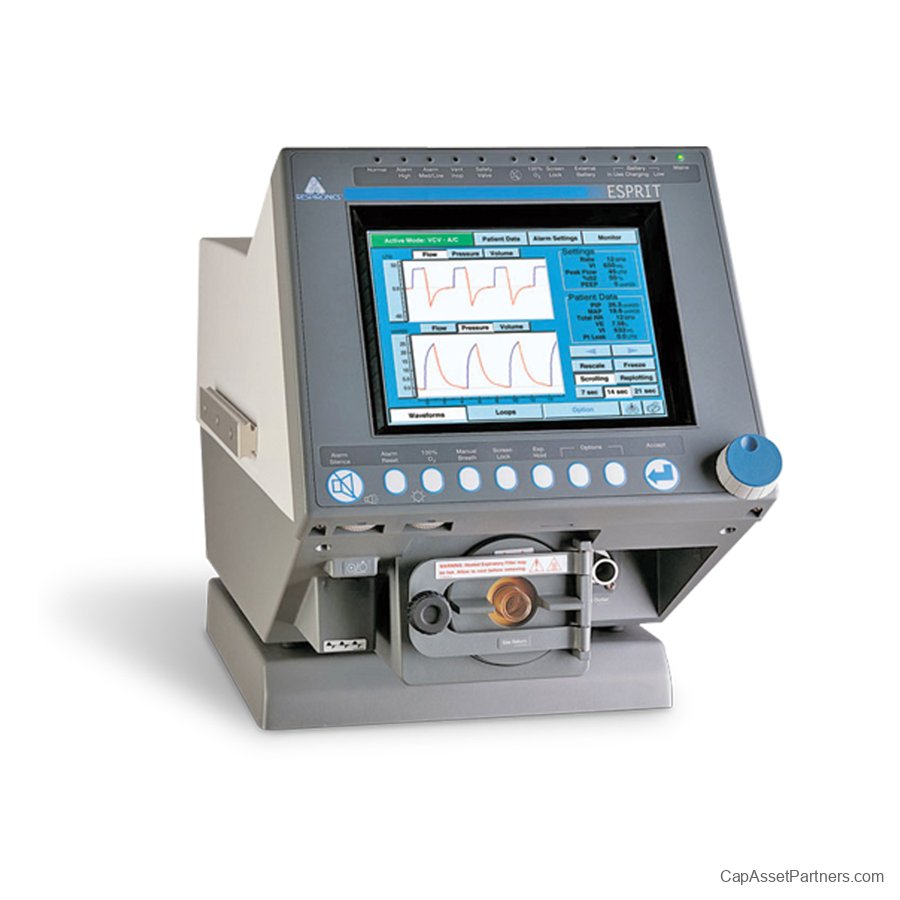

Respironics Esprit Respiratory Ventilator

Product Description: Respironics Esprit Respiratory Ventilator
Introducing the Respironics Esprit Respiratory Ventilator, a cutting-edge medical device that seamlessly merges sophisticated engineering with user-friendly functionality. This microprocessor-driven ventilator is designed to meet diverse patient needs, featuring an impressive array of modes, including volume control, pressure control, and fully integrated noninvasive ventilation.
One of the standout benefits of the Esprit is its remarkable versatility. Unlike traditional ventilators that require wall air or compressors, the Esprit can operate on power, an AC battery pack, or an external battery. This flexibility makes it an excellent choice for various environments, from bustling hospitals to serene sub-acute care facilities.
The Esprit also prioritizes clinician efficiency with its innovative graphics options, providing immediate, real-time feedback to optimize ventilator settings. The addition of a new color screen option enhances visibility, making it easier for healthcare professionals to interpret displays intuitively. With its advanced ergonomic design and straightforward graphical user interface, the Respironics Esprit Respiratory Ventilator is engineered to support effective patient care in any setting.

Respironics Esprit Respiratory Ventilator Specifications:

• Modes of Ventilation:

• AC (Assist-Control)

• SIMV (Synchronized Intermittent Mandatory Ventilation)

• PS (Pressure Support)

• CPAP (Continuous Positive Airway Pressure)

• Ventilation Parameters:

• Tidal Volume Range: 50 - 2000 mL (1.7 - 67.6 fl oz)

• Respiratory Rate: 1 - 60 breaths/min

• Inspiratory Pressure: 5 - 60 cm H2O (0.2 - 23.6 in Hg)

• PEEP Range: 0 - 20 cm H2O (0 - 7.9 in Hg)

• Oxygen Concentration:

• FiO2 Range: 21% - 100%

• Power Requirements:

• Input Voltage: 100 - 240 VAC, 50/60 Hz

• Power Consumption: 100 W

• Dimensions:

• Height: 12.4 in (31.5 cm)

• Width: 14.4 in (36.5 cm)

• Depth: 6.6 in (16.8 cm)

• Weight: 24 lbs (10.9 kg)

• Interfaces:

• User Interface: LCD with touch screen

• Communication Ports: RS-232, USB

• Alarm Systems:

• Adjustable high/low tidal volume

• High/low pressure alarms

• Apnea alarm

• Data Logging:

• Internal memory for patient data storage

• Operating Conditions:

• Temperature: 10 - 40 °C (50 - 104 °F)

• Humidity: 15% - 95% non-condensing

• Certifications:

• CE Mark

• FDA cleared

Note: Always refer to the manufacturer's manual for specific usage instructions and safety information.
