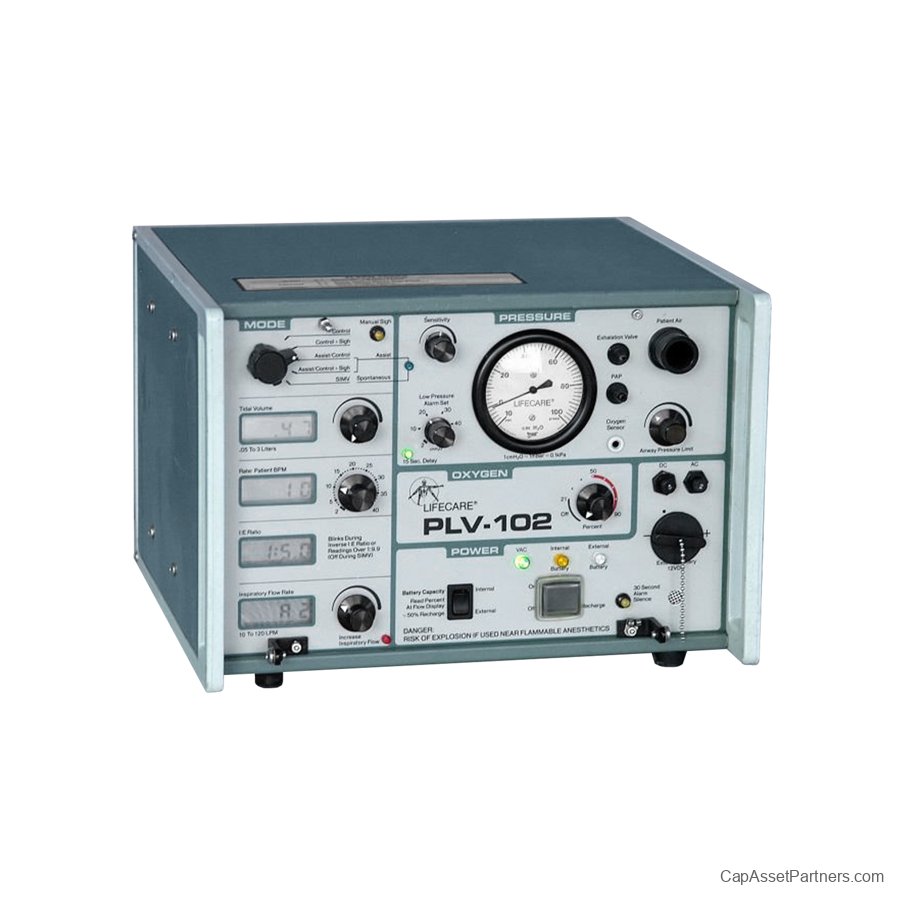

Respironics Lifecare PLV-102 Ventilator

Respironics Lifecare PLV-102 Ventilator
Experience the reliability and versatility of the Respironics Lifecare PLV-102 Ventilator, an ideal choice for transport and portable applications. Designed with a microprocessor-controlled system, this lightweight ventilator delivers precise volume ventilation across a variety of settings. Whether in sub-acute care, nursing homes, or home environments, the PLV-102 ensures optimal patient support.
Its three power source options enhance its adaptability, providing seamless operation wherever it's needed. Elevate your respiratory care solutions with the advanced technology and user-friendly design of the Respironics Lifecare PLV-102 Ventilator. Perfect for meeting the diverse needs of patients while ensuring convenience and ease of use for healthcare providers.

Respironics Lifecare PLV-102 Ventilator Specifications

Physical Weight & Dimensions

• Height: 9 inches (22.9 cm)

• Width: 12.25 inches (31.1 cm)

• Depth: 12.25 inches (31.1 cm)

• Weight: 28.9 lbs (13.1 kg)

Power

• Input: 120 VAC 50/60 Hz

• External Battery: 12 VDC

• Internal Battery: 12 VDC

Front Panel Controls

• Mode Selection: Control, Control + Sigh, Assist/Control, Assist/Control + Sigh, SIMV

• Tidal Volume: 0.05 to 0.20 ± 0.02 liters; 0.20 to 3.00 liters ± 10%

• Sign Volume: 150% of Set Tidal Volume

• Sign Frequency: 1 Sign Breath every 100 Tidal Breaths

• Breath Rate: 2 to 35 BPM ± 0.5; 36 to 40 BPM ± 2

• Inspiratory Flow Rate: 10 to 120 LPM

• Battery Test Switch: Test Internal/External Battery

• Main Power Switch: On/Off, Recharge

• DC Circuit Breaker: Push/Pull Actuation

• AC Circuit Breaker: Push/Pull Actuation

• Airway Pressure Limit: 5 to 100 cm H2O ± 5

• Sensitivity: +18 cm H2O ± 1 to at least -6 cm H2O

• Low Pressure Alarm: 2 to 40 cm H2O ± 2; 41 to 50 cm H2O ± 5

• Manual Sigh: Push to Activate One Breath

• Oxygen Percent: 21% to 90% ± 6%

• Oxygen Sensor - SIMV Operation: 21% to 90% ± 10%

• 30 Second Alarm Silence: Push to Activate

Front Panel Visual Indicators

• Manual Sigh: Yellow Indicator Light

• Tidal Volume: Digital Display

• Rate: Patient Breaths Per Minute - Digital Display

• I:E Ratio: Digital Display

• Inspirational Flow Rate: Digital Display

• Increase Inspiratory Flow: Red Indicator Light

• 120 VAC Power Source: Green Indicator Light

• Patient Airway Pressure: -10 to 100 cm H2O ± 5 (Sinusoidal waveform)

• Internal DC Power Source: Amber Indicator Light

• External DC Power Source: Yellow Indicator Light

• Assisted/Spontaneous: Green Indicator Light

• 15-Second Delay (Low Pressure Alarm): Green Indicator Light

• Oxygen Percent: 50% and Greater Marked Red

• 30-Second Alarm Silence: Yellow Indicator Light/Push Button

• Alarm Code Display: Digital Display

Alarms

• Low Pressure: Visual/Continuous Audible

• High Pressure: Intermittent Audible

• Apnea: Visual/Continuous Audible

• Inverse I:E Ratio: Visual Warning

• Increase Inspiratory Flow: Visual Warning

• Reverse Battery Connection: Continuous Audible

• Low Internal Battery: Visual/Continuous Audible

• Low External Battery: Visual/Continuous Audible

• Power Failure: Continuous Audible

• Unit Malfunction: Intermittent Audible

• Power Source Change: Continuous Audible

• Oxygen: Continuous Audible
