Manufactured by: Respironics

Category: Capnography / ETCO2

Respironics Respironics Tidal Wave 615 Handheld CO2 Monitor

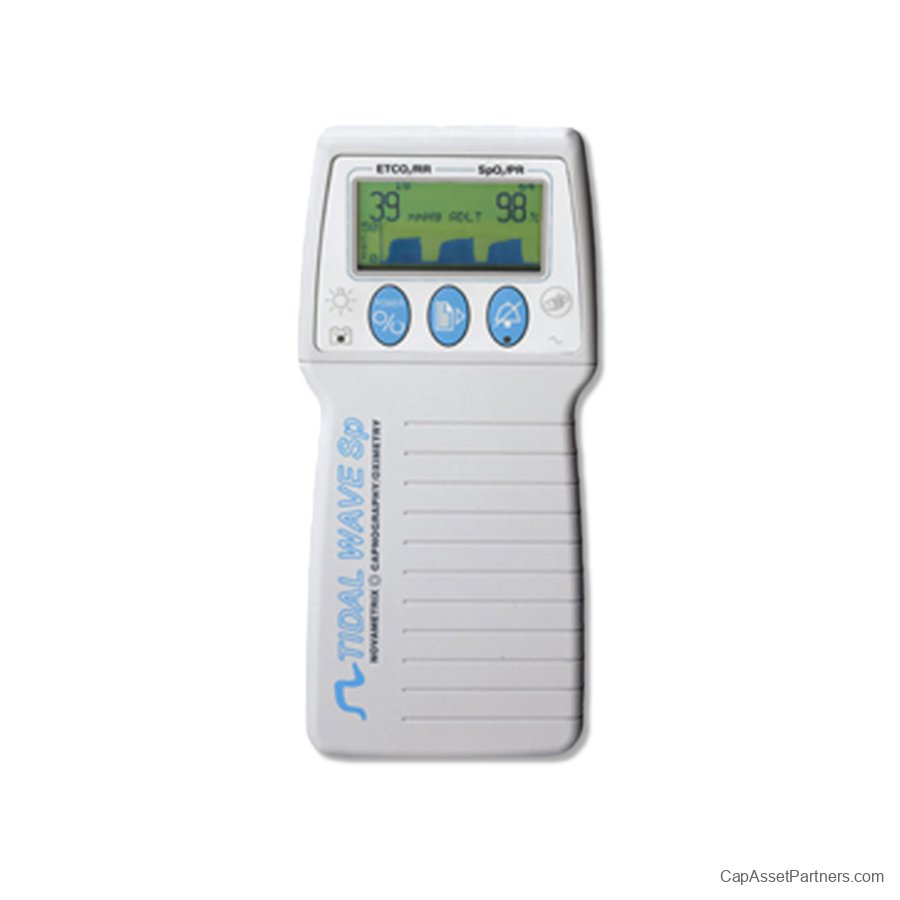

Respironics Tidal Wave 615 Handheld CO2 Monitor: Comprehensive Patient Monitoring Made Easy
The Respironics Tidal Wave 615 Handheld CO2 Monitor is an innovative solution for medical professionals seeking reliable portable monitoring of patients' ventilatory and airway status. This state-of-the-art device combines the functionality of a handheld mainstream capnograph with the added benefit of SpO2 measurement, making it a vital tool for both emergency and routine medical applications.
Engineered with advanced technology akin to the renowned Respironics Novametrix bedside capnographs, the Tidal Wave 615 delivers immediate feedback, ensuring timely intervention when necessary. Its unique design and features make it the only handheld mainstream capnograph available on the market today, setting a benchmark in patient care.

Key Features:

  • Built-in Pulse Oximeter: Monitor oxygen saturation levels alongside CO2 readings for a comprehensive assessment of respiratory function.
  • Dual Sampling Capability: Offers both mainstream and sidestream sampling options for versatility in different clinical settings.
  • Graphical Trend Display: Analyze and track respiratory trends over a 30-minute timeframe on an easy-to-read screen, enabling quick decision-making.
  • User Alerts: Equipped with visual and audible alerts for "no respiration" scenarios, ensuring patient safety is always a priority.
  • Convenient Power Options: The Tidal Wave 615 utilizes user-replaceable disposable and rechargeable battery packs, so you can avoid downtime typically associated with charging. Standard AA lithium batteries provide up to 5.5 hours of operation.
  • No Calibration Needed: Enjoy hassle-free operation with no calibration required for CO2 monitoring, allowing you to focus on patient care rather than equipment maintenance.

Explore the world of advanced patient monitoring with the Respironics Tidal Wave 615 Handheld CO2 Monitor and experience the difference in your clinical practice today.
## Respironics Tidal Wave 615 Handheld CO2 Monitor Specifications

Capnograph

  • Principle of Operation: Solid state mainstream sensor. Single beam, non-dispersive infrared (NDIR) absorption, ratiometric measurement.
  • Initialization Time: Capnogram within 15 seconds, full specifications within 60 seconds.
  • Calibration: No calibration required.

Capnostat® Mainstream CO2 Sensor

  • Size: 3.30 × 4.24 × 2.16 cm (1.30 × 1.67 × 0.85 in.)
  • Weight: 18 grams (0.64 oz.), cable excluded.
  • Shock Resistance: Withstands repeated six-foot drops to a hard surface.

CO2 (Carbon Dioxide)

  • Range: 0 - 150 mmHg
  • Accuracy:
  • ±2 mmHg (for 0 - 40 mmHg)
  • ±5% of reading (for 41 - 70 mmHg)
  • ±8% of reading (for 71 - 150 mmHg)
  • Resolution: 1 mmHg
  • Response Time: 60 ms
  • Units: mmHg, kPa, or %
  • Compensations: N2O & O2 (selectable), Pb (automatic)
  • Capnogram: Selectable sweep speed

Respiratory Rate

  • Accuracy: ±1 br/min
  • Range: 0-150 br/min
  • Resolution: 1 br/min

Sampling Flow Rate (715 model only)

  • Flow Rate: 180 ml/min (for non-intubated patients)
  • Response Time: Less than 200 ms at 180 ml/min flow

Pulse Oximeter

  • Principle of Operation: Red/Infrared absorption.

SpO2 (Oxygen Saturation)

  • Range: 0 - 100%
  • Accuracy: ±2% SpO2 (for 80-100% SpO2)
  • Resolution: 1%
  • Averaging: Menu selectable 2 or 8 seconds

Pulse Rate

  • Range: 30-250 bpm
  • Accuracy: ±1% of full scale
  • Resolution: 1 bpm
  • Averaging: 8 seconds

Sensors

  • Type: Reusable Y-Sensor (can be sterilized) and reusable adult finger sensor.

General

Alerts

  • Limits: Adjustable for ETCO2, SpO2, Respiratory Rate, and Pulse Rate; no respiration detected adjustable timeout.
  • Audio: Adjustable volume, two-minute silence or off; includes LED indicators.
  • Visual: On-screen and LED indicators.

Display

  • Type: Dot matrix, backlit (LCD)
  • Size: 2.2 × 1.1 inches

Trending Capabilities

  • Memory: 24 hr., battery backed
  • Format: 30 minute on-screen or printed in trend or tabular mode
  • Data Download: To personal computer for use with NovaCARD software.

Communication Output

  • Type: RS232 to Seiko DPU-414 printer, NovaCARD software or computer

Physical Weight & Dimensions

  • Height: 8 inches (20 cm)
  • Width: 3.75 inches (8.5 cm)
  • Depth: 1.875 inches (4.8 cm)
  • Weight: 793 grams (28 oz.)

Electrical

  • External Supply: Optional
  • Input: 120 VAC 60 Hz or 220 VAC 50 Hz
  • Battery:
  • Nickel-Metal-Hydride (NiMH): 4.5 hour life
  • Standard AA lithium: 5.5 hour life

Environmental

  • Operating Temperature: 0 to +40 °C (32-104 °F)
  • Operating Humidity: 0 to 90% RH non-condensing
